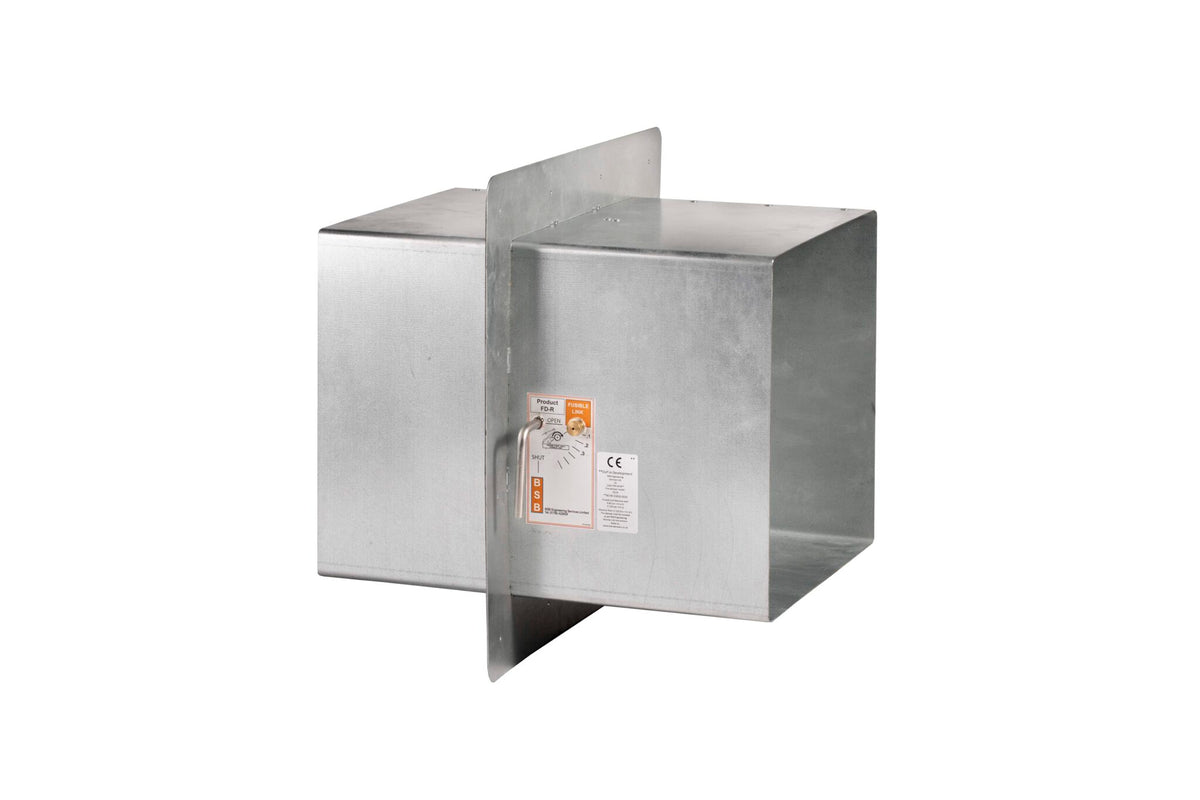

BSB FD-R Series Rectangular Fire Damper 100x100 to 300x300mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | BSB |
| Model | FD-R Series |
| Type | Single-blade rectangular fire damper with volume control |
| Fire rating | ES, tested to BS EN 1366-2, classified to BS EN 13501-3. E120 S in masonry floors; E120 / E60 S in drywall and masonry walls |
| Installation | Drywall partitions, masonry walls and masonry floors. Fixes from one side, no infill required |
| Standards | BS EN 15650 (CE marked); BS EN 1751 Class 2 blade, Class C case leakage; DW 144 |
| Fusible link | 72°C, externally replaceable |
| Construction | Galvanised steel case (0.9mm), 1.2mm galvanised steel blade with intumescent seal |
| Case length | 300mm to 400mm depending on height |
| Size range | 100 x 100mm to 300 x 300mm (15 sizes) |
| Reset | External test and reset, external blade position indicator |
| Availability | Made to order, approx. 1 week lead time, non-returnable |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
The BSB FD-R Series is a mechanical single-blade fire damper for rectangular ductwork passing through fire rated walls and floors, with built-in volume control. The damper, fusible link and reset are all accessed from outside the duct, so it can be drop tested and reset without opening the ductwork, which makes commissioning and annual testing much quicker in tight ceiling voids.
It is ES classified (reduced smoke leakage) to BS EN 1366-2, and can be installed from one side of the wall without fire rated infill material. Made to order by BSB in the UK.
- 15 sizes from 100 x 100mm to 300 x 300mm
- ES rated, up to E120 S depending on installation
- Externally resettable, with built-in volume control
- Made to order, approx. 1 week lead time
What it is best used for
Smaller rectangular supply and extract ducts in offices, schools, healthcare, hotels and residential blocks where the duct passes through a fire compartment wall or floor. It is especially useful where access is limited, because testing and resetting are done from outside the duct.
FD-R, FD-C or curtain damper?
The FD-R is the rectangular version of our BSB FD-C circular damper: same single-blade, externally resettable design with volume control. For circular ducts choose FD-C, or the BSB FD Series curtain damper for circular sizes above 315mm. For rectangular ducts larger than 300 x 300mm, contact us for a curtain damper quote.
Installation notes
- Install to BSB's tested method for the wall or floor type using the supplied frame, so the fire rating is valid. It fixes from one side only with no infill needed.
- Leave a 10mm gap around the damper, at least 75mm to adjacent walls, floors and ceilings, and use break-away joints on the connecting ductwork.
- Fire dampers must be inspected and drop tested regularly (BS 9999) with records kept under the Regulatory Reform (Fire Safety) Order. BSB recommend intervals of no more than six months.
Made to order
These dampers are built to order and are not held in stock. The current lead time is around 1 week from order. Because they are made to order they cannot be returned or cancelled, so please check the duct width and height before ordering. Need a size not listed? Email hello@efans.co.uk or call 0161 399 3825 for a quote.
Specifications
| Brand | BSB |
| Model | FD-R Series |
| Type | Single-blade rectangular fire damper with volume control |
| Classification | ES, tested to BS EN 1366-2, classified to BS EN 13501-3. E120 S in masonry floors; E120 / E60 S in drywall and masonry walls (see datasheet) |
| Standards | BS EN 15650 (CE marked), BS EN 1751 Class 2 blade / Class C case leakage, DW 144 |
| Fusible link | 72°C, externally replaceable |
| Construction | Galvanised steel case (0.9mm), 1.2mm galvanised steel blade with intumescent seal |
| Case length | 300mm to 400mm depending on height |
| Size range | 100 x 100mm to 300 x 300mm (15 sizes) |
| Reset | External test and reset, external blade position indicator |
| Lead time | Made to order, approx. 1 week |
Manuals & Guides
BSB FD-R Series Fire Damper Data Sheet
Browse our full range of fire dampers.
Product Description
The BSB FD-R Series is a mechanical single-blade fire damper for rectangular ductwork passing through fire rated walls and floors, with built-in volume control. The damper, fusible link and reset are all accessed from outside the duct, so it can be drop tested and reset without opening the ductwork, which makes commissioning and annual testing much quicker in tight ceiling voids.
It is ES classified (reduced smoke leakage) to BS EN 1366-2, and can be installed from one side of the wall without fire rated infill material. Made to order by BSB in the UK.
- 15 sizes from 100 x 100mm to 300 x 300mm
- ES rated, up to E120 S depending on installation
- Externally resettable, with built-in volume control
- Made to order, approx. 1 week lead time
What it is best used for
Smaller rectangular supply and extract ducts in offices, schools, healthcare, hotels and residential blocks where the duct passes through a fire compartment wall or floor. It is especially useful where access is limited, because testing and resetting are done from outside the duct.
FD-R, FD-C or curtain damper?
The FD-R is the rectangular version of our BSB FD-C circular damper: same single-blade, externally resettable design with volume control. For circular ducts choose FD-C, or the BSB FD Series curtain damper for circular sizes above 315mm. For rectangular ducts larger than 300 x 300mm, contact us for a curtain damper quote.
Installation notes
- Install to BSB's tested method for the wall or floor type using the supplied frame, so the fire rating is valid. It fixes from one side only with no infill needed.
- Leave a 10mm gap around the damper, at least 75mm to adjacent walls, floors and ceilings, and use break-away joints on the connecting ductwork.
- Fire dampers must be inspected and drop tested regularly (BS 9999) with records kept under the Regulatory Reform (Fire Safety) Order. BSB recommend intervals of no more than six months.
Made to order
These dampers are built to order and are not held in stock. The current lead time is around 1 week from order. Because they are made to order they cannot be returned or cancelled, so please check the duct width and height before ordering. Need a size not listed? Email hello@efans.co.uk or call 0161 399 3825 for a quote.
Specifications
| Brand | BSB |
| Model | FD-R Series |
| Type | Single-blade rectangular fire damper with volume control |
| Classification | ES, tested to BS EN 1366-2, classified to BS EN 13501-3. E120 S in masonry floors; E120 / E60 S in drywall and masonry walls (see datasheet) |
| Standards | BS EN 15650 (CE marked), BS EN 1751 Class 2 blade / Class C case leakage, DW 144 |
| Fusible link | 72°C, externally replaceable |
| Construction | Galvanised steel case (0.9mm), 1.2mm galvanised steel blade with intumescent seal |
| Case length | 300mm to 400mm depending on height |
| Size range | 100 x 100mm to 300 x 300mm (15 sizes) |
| Reset | External test and reset, external blade position indicator |
| Lead time | Made to order, approx. 1 week |
Manuals & Guides
BSB FD-R Series Fire Damper Data Sheet
Browse our full range of fire dampers.
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the FD-R?
A single-blade rectangular fire damper with built-in volume control, tested and reset from outside the duct.
What fire rating does it have?
ES classified to BS EN 13501-3, up to E120 S depending on the wall or floor type and installation method.
Can it be installed from one side?
Yes. The frame fixes from one side of the wall and no fire rated infill material is needed.
Can I return it if I order the wrong size?
No. These dampers are made to order, so they cannot be returned or cancelled. Please check your duct width and height before ordering.
What sizes are available?
15 sizes from 100 x 100mm to 300 x 300mm. Contact us for larger rectangular sizes.
