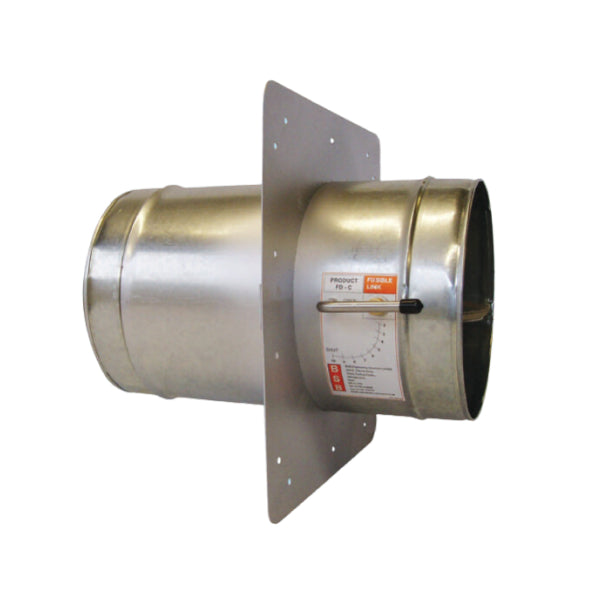

BSB FD-C Series Circular Single Blade Externally Resettable Combination Fire and Volume Control Damper
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | BSB |
| Model | FD-C Series |
| Type | Combination fire and volume control damper |
| Damper shape | Circular single blade |
| Classification | ES (BS EN 1366-2), reduced smoke leakage |
| Standards | BS EN 1751 (air control), BS EN 1506 (casing) |
| Case length | 320mm |
| Size range | 100mm to 315mm diameter (8 sizes) |
| Reset | Externally resettable, replaceable fusible link |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
The BSB FD-C Series is a manually operated single-blade circular fire damper with an integrated volume control facility, designed for installations where space is at a premium. The damper, thermal fuse and reset are all accessed from outside the duct, making commissioning and maintenance straightforward.
It is an ES-classified fire damper with reduced smoke leakage (BS EN 1366-2), air-control tested to BS EN 1751, with a casing conforming to BS EN 1506, a replaceable fusible link, and an external blade position indicator. The standard case length is 320mm and it is available in 8 sizes from 100mm to 315mm diameter.
- 100mm to 315mm diameter
- Fire + volume control damper
- Externally resettable
Suitable for
- Vertical and horizontal ducted ventilation systems
- Airflow control and fire protection
Specifications
| Brand | BSB |
| Model | FD-C Series |
| Type | Combination fire and volume control damper |
| Damper shape | Circular single blade |
| Classification | ES (BS EN 1366-2), reduced smoke leakage |
| Standards | BS EN 1751 (air control), BS EN 1506 (casing) |
| Case length | 320mm |
| Size range | 100mm to 315mm diameter (8 sizes) |
| Reset | Externally resettable, replaceable fusible link |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Product Description
The BSB FD-C Series is a manually operated single-blade circular fire damper with an integrated volume control facility, designed for installations where space is at a premium. The damper, thermal fuse and reset are all accessed from outside the duct, making commissioning and maintenance straightforward.
It is an ES-classified fire damper with reduced smoke leakage (BS EN 1366-2), air-control tested to BS EN 1751, with a casing conforming to BS EN 1506, a replaceable fusible link, and an external blade position indicator. The standard case length is 320mm and it is available in 8 sizes from 100mm to 315mm diameter.
- 100mm to 315mm diameter
- Fire + volume control damper
- Externally resettable
Suitable for
- Vertical and horizontal ducted ventilation systems
- Airflow control and fire protection
Specifications
| Brand | BSB |
| Model | FD-C Series |
| Type | Combination fire and volume control damper |
| Damper shape | Circular single blade |
| Classification | ES (BS EN 1366-2), reduced smoke leakage |
| Standards | BS EN 1751 (air control), BS EN 1506 (casing) |
| Case length | 320mm |
| Size range | 100mm to 315mm diameter (8 sizes) |
| Reset | Externally resettable, replaceable fusible link |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is it?
A single-blade circular fire damper with integrated volume control.
What fire classification does it have?
ES classified with reduced smoke leakage to BS EN 1366-2.
What sizes are available?
8 sizes from 100mm to 315mm diameter.
Can it be reset externally?
Yes, the damper, thermal fuse and reset are accessed from outside the duct.
Is the fusible link replaceable?
Yes, from outside the ductwork.
What standards does it meet?
Air control to BS EN 1751 and casing to BS EN 1506.
