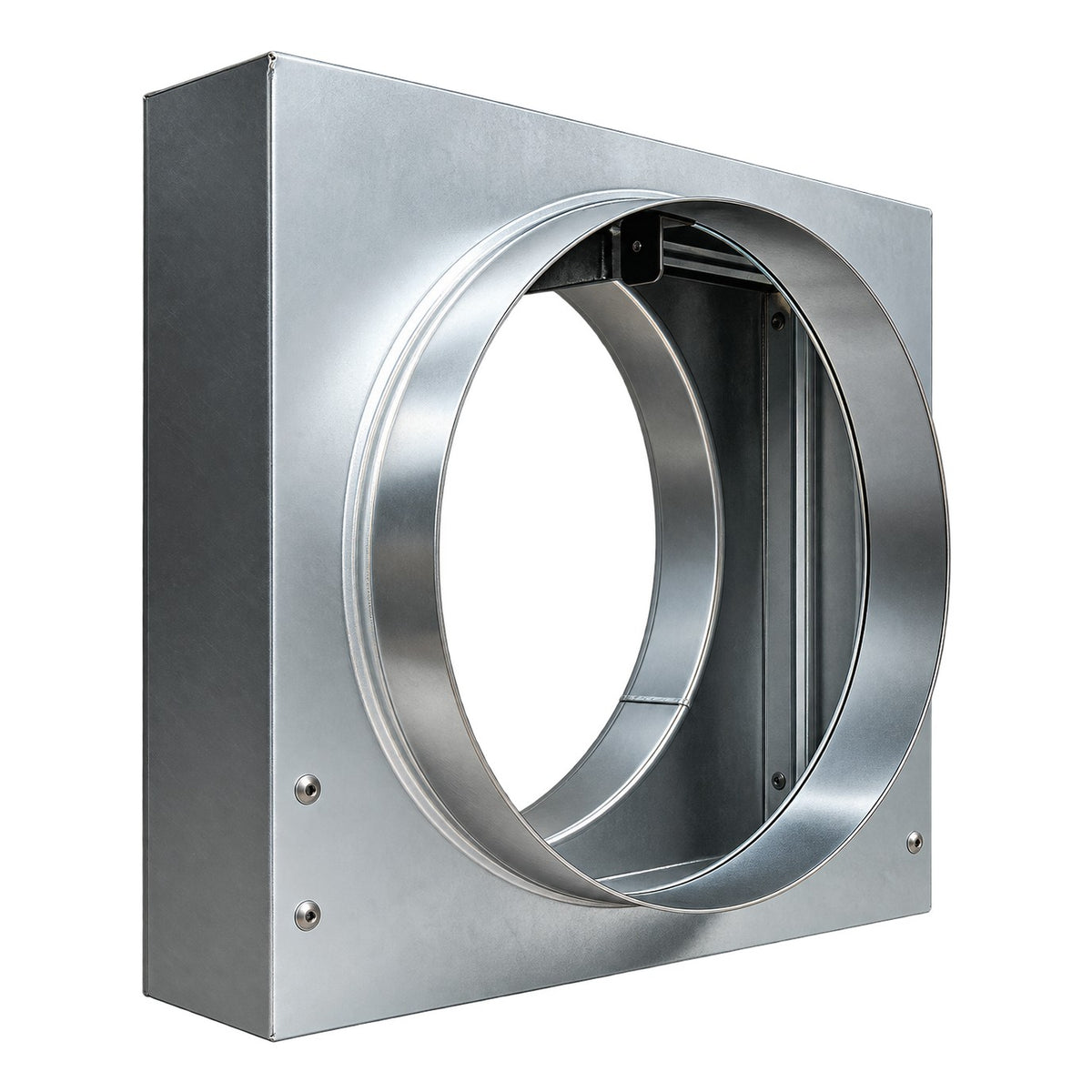

BSB FD Series Circular Curtain Fire Damper with Angle Frame
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | BSB |
| Model | FD Series, circular (type C), galvanised, angle frame |
| Type | Mechanical curtain blade fire damper |
| Fire rating | E classified to BS EN 13501-3, tested to BS EN 1366-2, up to E120 depending on installation |
| Standards | BS EN 15650; BS EN 1751 Class 2 blade leakage; LPS 1162; DW 144/145 |
| Fusible link | 72°C |
| Construction | Galvanised steel casing (min 1.2mm) and blades, stainless steel closure springs |
| Frame | Angle frame supplied |
| Size range | 100mm to 630mm diameter (11 sizes) |
| Testing and reset | Via access panel in ductwork |
| Availability | Made to order, approx. 1 week lead time, non-returnable |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
The BSB FD Series circular curtain fire damper is a mechanical, fusible link fire damper for circular ductwork passing through fire rated walls, floors and cavity barriers. When duct air reaches 72°C the link melts and a spring-loaded steel curtain closes across the duct, maintaining the compartment. Each damper is supplied with an angle frame for building in.
Because the folded curtain sits clear of the airstream in normal running, pressure drop and noise are very low, which makes it a good choice for larger ducts and higher air velocities. It is made to order by BSB in the UK.
- 100mm to 630mm diameter (11 sizes)
- E classified to BS EN 13501-3, up to E120 depending on installation
- Supplied with angle frame
- Made to order, approx. 1 week lead time
What it is best used for
Ducted supply and extract systems in commercial buildings, schools, healthcare and residential blocks where a circular duct passes through a fire compartment wall or floor. It suits plant room and riser penetrations, and larger diameter mains where a single-blade damper would add noticeable resistance.
Curtain blade or FD-C?
Our BSB FD-C is a single-blade damper with external reset, volume control and an ES (reduced smoke leakage) rating, but only goes up to 315mm. The FD Series curtain damper is E rated (integrity), is tested and reset through an access panel in the ductwork, and covers sizes up to 630mm. If the specification calls for ES or you need external reset in a tight ceiling void, choose FD-C. For larger ducts, low pressure loss or a straightforward like-for-like curtain damper replacement, choose this one.
Installation notes
- Install to BSB's tested installation method for the wall or floor type, using the supplied angle frame, so the fire rating is valid.
- Allow at least 75mm clearance to adjacent walls, floors and ceilings, and use break-away joints on the connecting ductwork.
- Fit an access panel next to the damper. Fire dampers must be drop tested and inspected at least annually (BS 9999 Annex W) and records kept under the Regulatory Reform (Fire Safety) Order.
Made to order
These dampers are built to order and are not held in stock. The current lead time is around 1 week from order. Because they are made to order they cannot be returned or cancelled, so please check the duct diameter before ordering. Need a size or option not listed, such as stainless steel, a HEVAC frame or a microswitch? Email hello@efans.co.uk or call 0161 399 3825 for a quote.
Specifications
| Brand | BSB |
| Model | FD Series, circular (type C), galvanised, angle frame |
| Type | Mechanical curtain blade fire damper |
| Classification | E rated, BS EN 13501-3, tested to BS EN 1366-2, up to E120 depending on installation |
| Standards | BS EN 15650, BS EN 1751 Class 2 blade leakage, LPS 1162, DW 144/145 |
| Fusible link | 72°C |
| Construction | Galvanised steel casing (min 1.2mm) and curtain blades, stainless steel closure springs |
| Frame | Angle frame (AF) supplied |
| Size range | 100mm to 630mm diameter (11 sizes) |
| Testing and reset | Via access panel in ductwork |
| Lead time | Made to order, approx. 1 week |
Manuals & Guides
BSB FD Series Curtain Fire Damper Data Sheet
Browse our full range of fire dampers.
Product Description
The BSB FD Series circular curtain fire damper is a mechanical, fusible link fire damper for circular ductwork passing through fire rated walls, floors and cavity barriers. When duct air reaches 72°C the link melts and a spring-loaded steel curtain closes across the duct, maintaining the compartment. Each damper is supplied with an angle frame for building in.
Because the folded curtain sits clear of the airstream in normal running, pressure drop and noise are very low, which makes it a good choice for larger ducts and higher air velocities. It is made to order by BSB in the UK.
- 100mm to 630mm diameter (11 sizes)
- E classified to BS EN 13501-3, up to E120 depending on installation
- Supplied with angle frame
- Made to order, approx. 1 week lead time
What it is best used for
Ducted supply and extract systems in commercial buildings, schools, healthcare and residential blocks where a circular duct passes through a fire compartment wall or floor. It suits plant room and riser penetrations, and larger diameter mains where a single-blade damper would add noticeable resistance.
Curtain blade or FD-C?
Our BSB FD-C is a single-blade damper with external reset, volume control and an ES (reduced smoke leakage) rating, but only goes up to 315mm. The FD Series curtain damper is E rated (integrity), is tested and reset through an access panel in the ductwork, and covers sizes up to 630mm. If the specification calls for ES or you need external reset in a tight ceiling void, choose FD-C. For larger ducts, low pressure loss or a straightforward like-for-like curtain damper replacement, choose this one.
Installation notes
- Install to BSB's tested installation method for the wall or floor type, using the supplied angle frame, so the fire rating is valid.
- Allow at least 75mm clearance to adjacent walls, floors and ceilings, and use break-away joints on the connecting ductwork.
- Fit an access panel next to the damper. Fire dampers must be drop tested and inspected at least annually (BS 9999 Annex W) and records kept under the Regulatory Reform (Fire Safety) Order.
Made to order
These dampers are built to order and are not held in stock. The current lead time is around 1 week from order. Because they are made to order they cannot be returned or cancelled, so please check the duct diameter before ordering. Need a size or option not listed, such as stainless steel, a HEVAC frame or a microswitch? Email hello@efans.co.uk or call 0161 399 3825 for a quote.
Specifications
| Brand | BSB |
| Model | FD Series, circular (type C), galvanised, angle frame |
| Type | Mechanical curtain blade fire damper |
| Classification | E rated, BS EN 13501-3, tested to BS EN 1366-2, up to E120 depending on installation |
| Standards | BS EN 15650, BS EN 1751 Class 2 blade leakage, LPS 1162, DW 144/145 |
| Fusible link | 72°C |
| Construction | Galvanised steel casing (min 1.2mm) and curtain blades, stainless steel closure springs |
| Frame | Angle frame (AF) supplied |
| Size range | 100mm to 630mm diameter (11 sizes) |
| Testing and reset | Via access panel in ductwork |
| Lead time | Made to order, approx. 1 week |
Manuals & Guides
BSB FD Series Curtain Fire Damper Data Sheet
Browse our full range of fire dampers.
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is a curtain fire damper?
A fire damper with a folded steel curtain held open by a fusible link. At 72°C the link melts and springs close the curtain across the duct.
What fire rating does it have?
E classified to BS EN 13501-3, up to 120 minutes depending on the wall or floor type and installation method.
What is the difference between this and the BSB FD-C?
FD-C is a single-blade ES rated damper with external reset and volume control, up to 315mm. The FD Series curtain damper is E rated, reset through an access panel, and goes up to 630mm.
Can I return it if I order the wrong size?
No. These dampers are made to order, so they cannot be returned or cancelled. Please check your duct diameter before ordering.
How often must fire dampers be tested?
At least annually under BS 9999 Annex W, with records kept under the Regulatory Reform (Fire Safety) Order.
