Product Details
Downloads
Specifications
Product specifications
| Brand | Vent-Axia |
| Type | Continuous MEV |
| Motor | DC (Lo-Carbon) |
| Speeds | Normal, boost & purge (variable) |
| Max airflow | Up to 118 l/s (425 m³/h) |
| Max power | 45 W |
| Spigots | 3 × 125 mm |

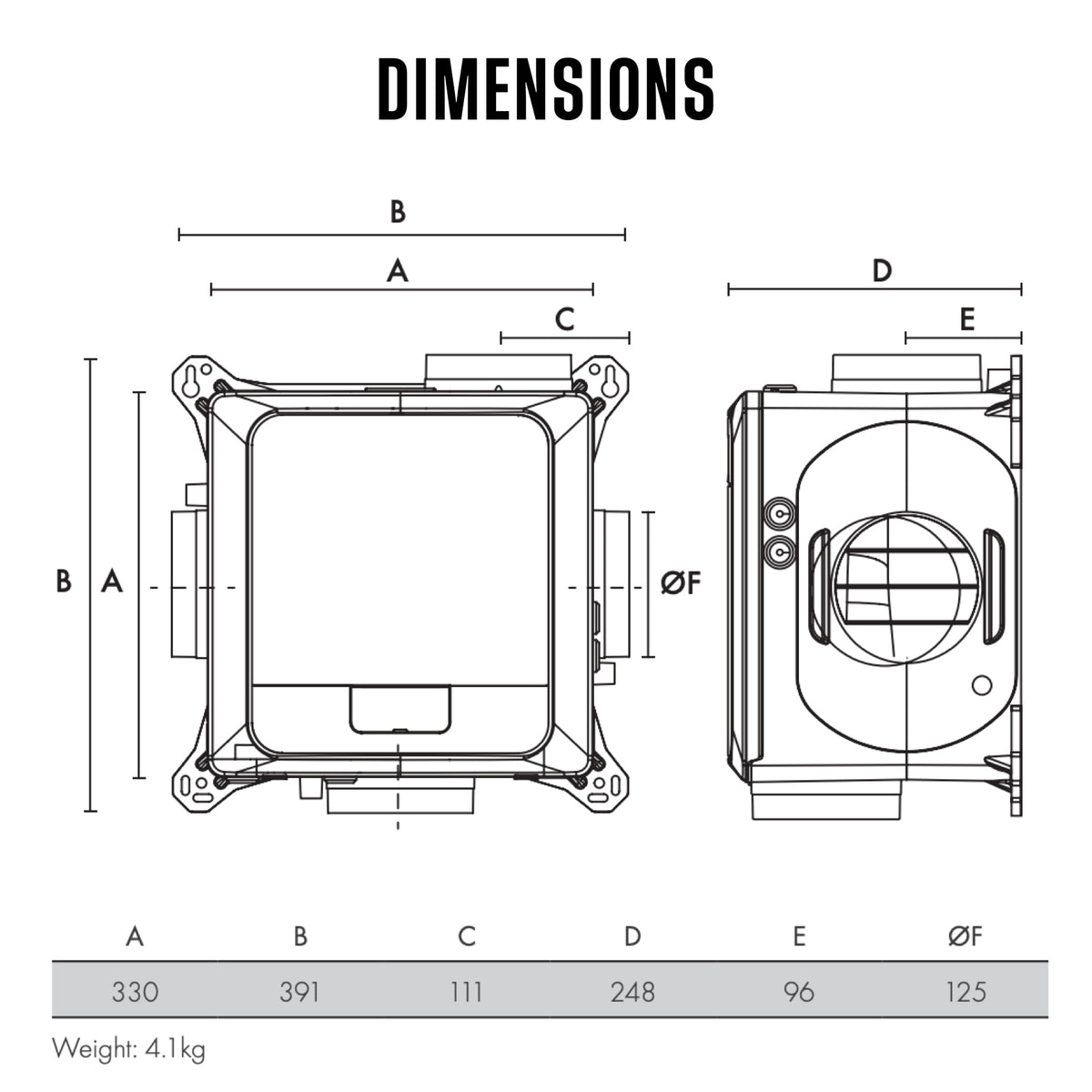

| Dimensions (H × W × D) | 310 × 340 × 249 mm |
| Duct size | 100 or 125 mm |
| Warranty | 2 Year Manufacturers |
Summary
See more specification See less specification

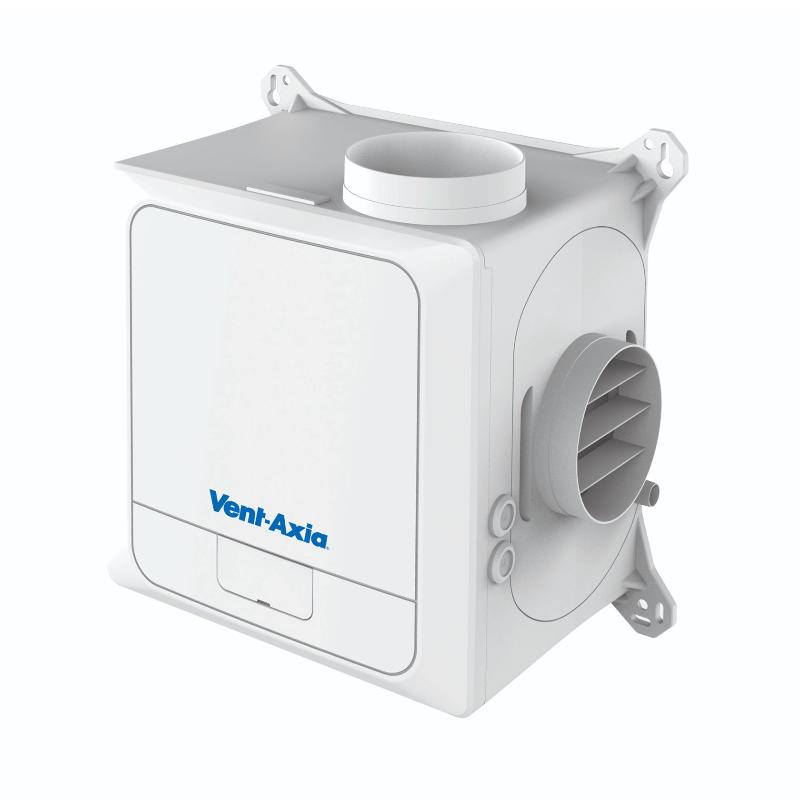

The Vent-Axia Multivent Lo-Carbon MVDC-MS (437634C) is a continuous Mechanical Extract Ventilation (MEV) unit designed for the simultaneous ventilation of separate areas in the home, or as a multi-point extractor for commercial applications. With a DC motor it is one of the most efficient central extract units available, offering "Close Control" of ventilation rates.
- Recognised in SAP PCDB with best-in-class Specific Fan Power
- Three 125 mm extract spigots for quick duct connection
- Complies with Building Regulations ADF (System 3)
- Fully variable normal, purge and boost speeds
- Two switched-live connections; improved controllability
- Acoustic lining as standard for ultra-quiet running
- Wall, ceiling or loft mounting
Suitable for
- Whole-house continuous ventilation
- Multi-point commercial extract systems
Installation
Wall, ceiling or loft mounting at any angle. A switched live can select boost speed when wired through an isolator relay (Part No. 442030, not supplied); a second switched live selects purge. Should be installed by a competent person.
Product Description
The Vent-Axia Multivent Lo-Carbon MVDC-MS (437634C) is a continuous Mechanical Extract Ventilation (MEV) unit designed for the simultaneous ventilation of separate areas in the home, or as a multi-point extractor for commercial applications. With a DC motor it is one of the most efficient central extract units available, offering "Close Control" of ventilation rates.
- Recognised in SAP PCDB with best-in-class Specific Fan Power
- Three 125 mm extract spigots for quick duct connection
- Complies with Building Regulations ADF (System 3)
- Fully variable normal, purge and boost speeds
- Two switched-live connections; improved controllability
- Acoustic lining as standard for ultra-quiet running
- Wall, ceiling or loft mounting
Suitable for
- Whole-house continuous ventilation
- Multi-point commercial extract systems
Installation
Wall, ceiling or loft mounting at any angle. A switched live can select boost speed when wired through an isolator relay (Part No. 442030, not supplied); a second switched live selects purge. Should be installed by a competent person.
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
How does a MEV system work?
A continuous Mechanical Extract Ventilation (MEV) unit sits centrally, usually in a loft or cupboard, and quietly extracts stale, humid air from wet rooms (kitchen, bathrooms, WCs) through ducts, expelling it outside. Running continuously, it controls moisture and pollutants across the whole home.
What is the MVDC-MS designed for?
It's designed for the simultaneous ventilation of separate areas in the home, or as a multi-point extractor for commercial applications. It offers 'Close Control' of ventilation rates for accurate, efficient performance.
Does it have humidity control?
No, this is the standard multi-speed model. If you'd like the unit to boost automatically on rising humidity, choose the MVDC-MSH humidity version (443298B).
How is the speed controlled?
It has fully variable normal and boost speeds via a switched-live activation, plus a third purge speed on a second switched live. A potentiometer speed selector lets you set the exact airflow, reducing noise and energy use.
Where can it be installed and is it noisy?
It can be wall-, ceiling- or loft-mounted at any angle, and an acoustic lining is fitted as standard to keep noise levels low.
Does it meet Building Regulations?
Yes, it complies with Building Regulations Approved Document F (System 3) and is recognised in the SAP PCDB with best-in-class Specific Fan Power. It carries a 2-year warranty and should be installed by a competent person.
