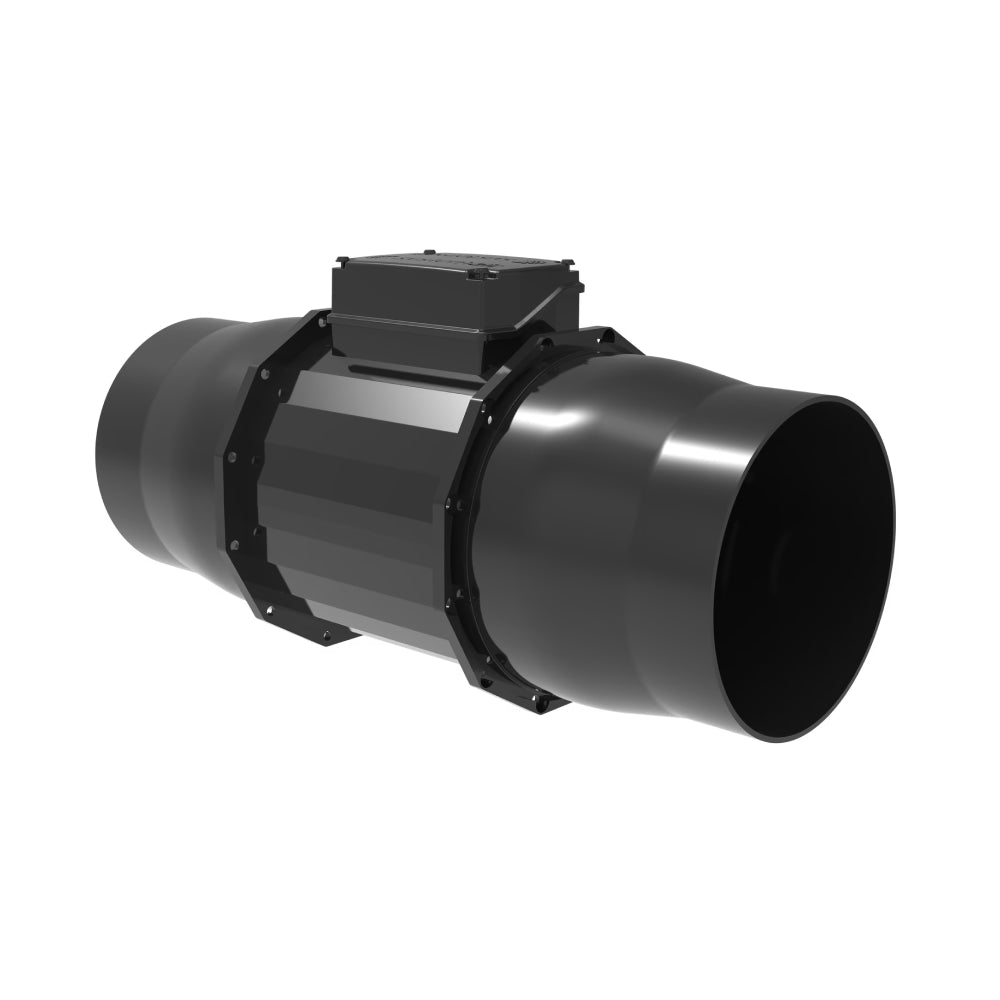

Systemair Prio 150EC Circular Duct Fan EC Motor - 150mm
Systemair Prio 150EC Circular Duct Fan EC Motor - 150mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | Prio 150EC |
| Type | Circular duct fan |
| Fan diameter | 150 mm |
| Maximum airflow | 796 m³/h (0.221 m³/s) |
| Motor | Single phase EC, 230V 1~ |
| Power (W) | 76 W |
| Sound level | 48 dB(A) at 3m |
| IP rating | IP44 |
| Weight | 1.9 kg |
Summary
See more specification See less specification
- EC-motors, high level of efficiency
- Low SFP values
- 100% speed controllable
- Integrated motor protection
- Can be installed in any position
- Compact design
- Low sound level
Potentiometer built-in for ease of commissioning. EC fans are intelligent devices using integrated motor electronics, ensuring that the motor always runs at optimal load. With EC motors the proportion of energy utilized effectively is higher, which as a result reduces the energy usage considerably, compared with AC motors.
Another special feature of EC fans is their energy-saving potential not only at full load, but especially when speed controlled, i.e. at part load. When operating at part-load, the energy used is much lower than with an asynchronous motor of equivalent output.
Reduced energy usage guarantees a drop in operating costs.
Installation
The Prio EC series is designed for installation in ducts. Models have 25 mm long spigot connections in acc. with EN 1506:1997. The fans have aerodynamically optimized impellers and guide vanes. Motor protection is integrated in the electronics of the motor.
Specifications
| Specification | |
|---|---|
| Voltage (nominal) | 230 V |
| Frequency | 50; 60 Hz |
| Phases | 1~ |
| Input power | 76 W |
| Input power | 0.076 kW |
| Input current | 0.642 A |
| Impeller speed | 4,330 rpm |
| Air flow (max) | 0.221 m³/s |
| Temperature of transported air (max) | 55 °C |
| Max temperature of transported air, when speed controlled | 55 °C |
| Sound pressure level at 3m (20m² Sabin) | 48 dB(A) |
| Enclosure class, motor | IP44 |
| Insulation class | B |
| ErP ready | Not ErP relevant |
| Duct dimension; Circular, inlet | 150 mm |
| Duct dimension; Circular, outlet | 150 mm |
| Weight | 1.9 kg |
| Duct connection type | Circular |
| Motor type | EC |
Manuals & Guides
Systemair Prio 150 EC Circular Duct Fan EC Motor datasheet
Product Description
- EC-motors, high level of efficiency
- Low SFP values
- 100% speed controllable
- Integrated motor protection
- Can be installed in any position
- Compact design
- Low sound level
Potentiometer built-in for ease of commissioning. EC fans are intelligent devices using integrated motor electronics, ensuring that the motor always runs at optimal load. With EC motors the proportion of energy utilized effectively is higher, which as a result reduces the energy usage considerably, compared with AC motors.
Another special feature of EC fans is their energy-saving potential not only at full load, but especially when speed controlled, i.e. at part load. When operating at part-load, the energy used is much lower than with an asynchronous motor of equivalent output.
Reduced energy usage guarantees a drop in operating costs.
Installation
The Prio EC series is designed for installation in ducts. Models have 25 mm long spigot connections in acc. with EN 1506:1997. The fans have aerodynamically optimized impellers and guide vanes. Motor protection is integrated in the electronics of the motor.
Specifications
| Specification | |
|---|---|
| Voltage (nominal) | 230 V |
| Frequency | 50; 60 Hz |
| Phases | 1~ |
| Input power | 76 W |
| Input power | 0.076 kW |
| Input current | 0.642 A |
| Impeller speed | 4,330 rpm |
| Air flow (max) | 0.221 m³/s |
| Temperature of transported air (max) | 55 °C |
| Max temperature of transported air, when speed controlled | 55 °C |
| Sound pressure level at 3m (20m² Sabin) | 48 dB(A) |
| Enclosure class, motor | IP44 |
| Insulation class | B |
| ErP ready | Not ErP relevant |
| Duct dimension; Circular, inlet | 150 mm |
| Duct dimension; Circular, outlet | 150 mm |
| Weight | 1.9 kg |
| Duct connection type | Circular |
| Motor type | EC |
Manuals & Guides
Systemair Prio 150 EC Circular Duct Fan EC Motor datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the Systemair Prio 150EC?
The Prio 150EC moves up to 796 m³/h (0.221 m³/s) at free delivery, driven by its 150 mm impeller and EC motor.
Is the Prio 150EC energy efficient?
Yes. It uses an EC (electronically commutated) motor, which draws far less power than a comparable AC motor, especially at reduced speeds, helping to lower running costs.
Can the Prio 150EC fan speed be controlled?
Yes, it is 100% speed controllable. The EC motor accepts a 0-10V signal and has a built-in potentiometer for easy commissioning.
What size duct does the Prio 150EC fit?
It has 150 mm circular spigots (25 mm long) to EN 1506, so it connects directly to standard 150 mm rigid or flexible ducting.
Can the Prio 150EC be mounted in any position?
Yes. It can be installed horizontally or vertically in the duct run, and motor protection is integrated into the electronics.
What is the Prio 150EC used for?
It is an inline duct fan for supply or extract ventilation in domestic and light commercial applications such as bathrooms, kitchens, offices and workshops.
