Systemair CBMT/Q 200mm dia 3.0kW 1 Phase Inline Heater Kit 3570
Systemair CBMT/Q 200mm dia 3.0kW 1 Phase Inline Heater Kit 3570
£943.99
SKU: 3570

Systemair CBMT/Q 200mm dia 3.0kW 1 Phase Inline Heater Kit 3570

200mm diameter
Inline Duct Heater Kit
3.0kW Single Phase
Exc VAT
Estimated delivery
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Systemair
Model CBMT/Q 3570
Type Circular electric inline duct heater kit
Diameter 200mm
Output 3.0kW
Voltage 230V
Frequency 50Hz
Phase Single phase
Minimum air flow 170 m³/h

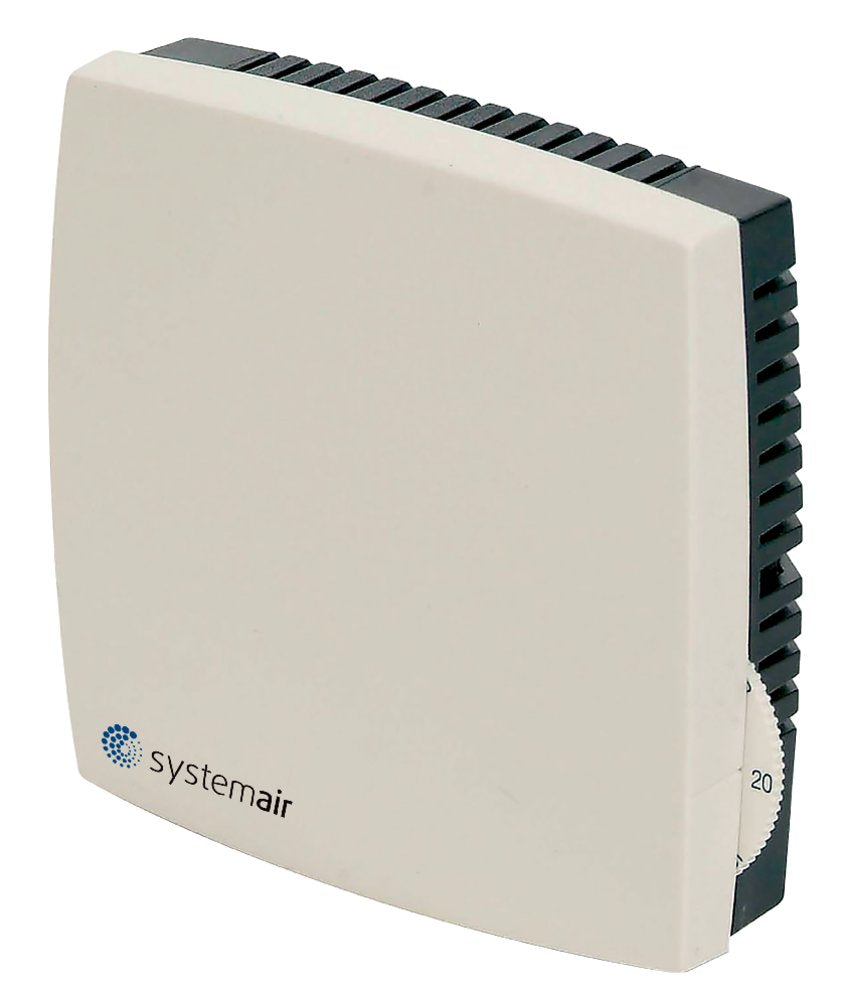

Includes CBMT duct heater, TG-R430 room sensor, TG-K330 duct sensor

Summary

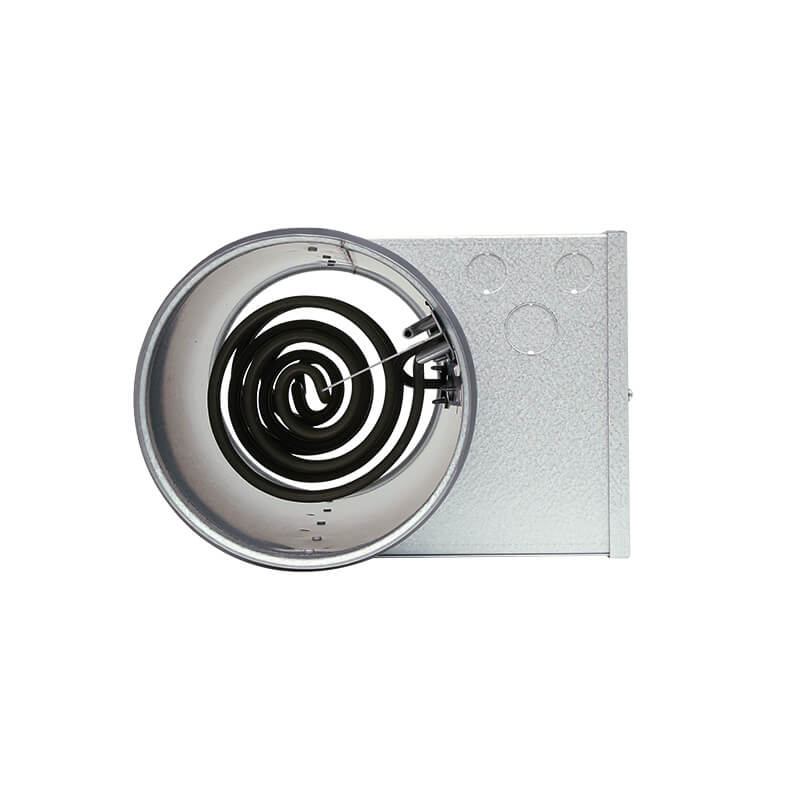

The Systemair CBMT/Q 3570 is a 200mm circular electric inline heater kit comprising a CBMT duct heater, a TG-R430 room sensor and a TG-K330 duct sensor.

Rated at 3.0kW on a single phase 230V supply, the CBMT model has built-in control equipment and an electronic flow monitor, allowing it to be installed as a stand alone unit in duct runs where air velocity is greater than 1.5 m/s.

See more specification See less specification

The Systemair 3570 Circular electric heater kit comprising CBMT duct heater, TG-R430 room sensor, and TG-K330 duct sensor.

The duct heater has built-in control equipment for room sensor with setpoint adjuster type TG-R430 and supply air sensor TG-K330. The minimum and maximum supply air temperatures are set on the duct heater circuit board. The CBMT model also has a built-in electronic flow monitor which simplifies the installation since it can be installed "stand alone".

Suitable for
In-duct installations were the air velocity is greater than 1.5 m/s

Installation
The CBMT model also has a built-in electronic flow monitor which simplifies the installation since it can be installed "stand alone".


Whats included

  • Systemair CBMT Duct Heater
  • TG-R430 Room Sensor
  • TG-K330 duct sensor

Technical parameters

Norminal data
Voltage (Nominal) 230 V
Frequency 50 Hz
Phase(s) 1~
Output kW 3.0 kW
Air flow min  170 m³/hr



Manuals & Guides
CBMT/Q wiring diagram

Product Description

The Systemair 3570 Circular electric heater kit comprising CBMT duct heater, TG-R430 room sensor, and TG-K330 duct sensor.

The duct heater has built-in control equipment for room sensor with setpoint adjuster type TG-R430 and supply air sensor TG-K330. The minimum and maximum supply air temperatures are set on the duct heater circuit board. The CBMT model also has a built-in electronic flow monitor which simplifies the installation since it can be installed "stand alone".

Suitable for
In-duct installations were the air velocity is greater than 1.5 m/s

Installation
The CBMT model also has a built-in electronic flow monitor which simplifies the installation since it can be installed "stand alone".


Whats included

  • Systemair CBMT Duct Heater
  • TG-R430 Room Sensor
  • TG-K330 duct sensor

Technical parameters

Norminal data
Voltage (Nominal) 230 V
Frequency 50 Hz
Phase(s) 1~
Output kW 3.0 kW
Air flow min  170 m³/hr



Manuals & Guides
CBMT/Q wiring diagram

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What is included in the Systemair 3570 kit?

It comprises a CBMT duct heater, a TG-R430 room sensor and a TG-K330 duct sensor.

What duct size does it suit?

It is designed for 200mm diameter circular ducting.

What is the heat output?

It has a 3.0kW output on a single phase 230V supply.

Can it be installed stand alone?

Yes, its built-in electronic flow monitor allows stand alone installation.

What air velocity is required?

It suits in-duct installations where air velocity is greater than 1.5 m/s.

What is the minimum air flow?

The minimum air flow is 170 m³/h.
