Systemair CBMT/Q 150mm dia 2.7kW 1 Phase Inline Heater Kit 3542
Systemair CBMT/Q 150mm dia 2.7kW 1 Phase Inline Heater Kit 3542
£894.99
SKU: 3542

Systemair CBMT/Q 150mm dia 2.7kW 1 Phase Inline Heater Kit 3542

150mm Diameter
2.7kW Inline Duct Heater Kit
230V Single Phase System
Exc VAT
Estimated delivery
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Systemair
Diameter 150mm
Output 2.7kW
Voltage 230V
Frequency 50Hz
Phase Single Phase
Minimum Air Flow 110 m3/hr
Part Number 3542

Summary

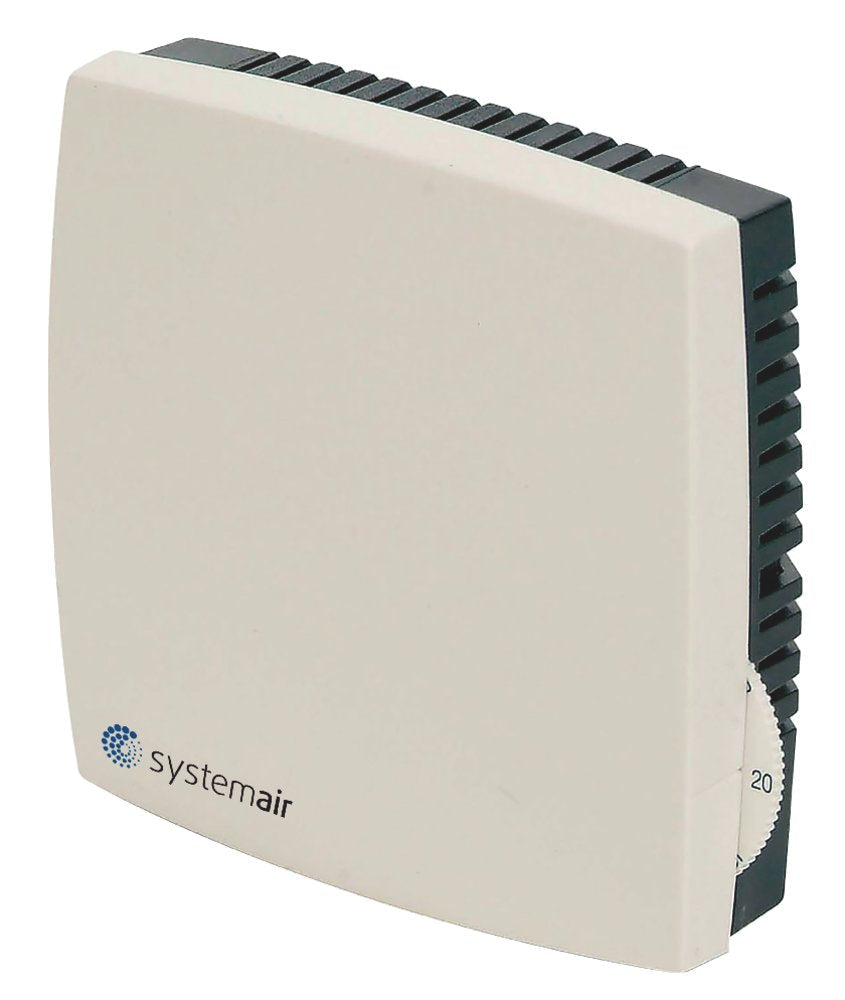

The Systemair 3542 CBMT/Q Inline Heater Kit is a 150mm diameter circular electric heater kit rated at 2.7kW. It comprises a CBMT duct heater, a TG-R430 room sensor and a TG-K330 duct sensor.

The duct heater has built-in control equipment and a built-in electronic flow monitor, which simplifies installation as it can be fitted stand alone. It is suitable for in-duct installations where the air velocity is greater than 1.5 m/s.

See more specification See less specification

The Systemair 3542 Circular electric heater kit comprising CBMT duct heater, TG-R430 room sensor, and TG-K330 duct sensor.

The duct heater has built-in control equipment for room sensor with setpoint adjuster type TG-R430 and supply air sensor TG-K330. The minimum and maximum supply air temperatures are set on theuct heater circuit board. The CBMT model also has a built-in electronic flow monitor which simplifies the installation since it can be installed "stand alone".

Suitable for
In-duct installations were the air velocity is greater than 1.5 m/s

Installation
The CBMT model also has a built-in electronic flow monitor which simplifies the installation since it can be installed "stand alone".


Whats included

  • Systemair CBMT Duct Heater
  • TG-R430 Room Sensor
  • TG-K330 duct sensor

Technical parameters

Norminal data
Voltage (Nominal) 230 V
Frequency 50 Hz
Phase(s) 1~
Output kW 2.7 kW
Air flow min  110 m³/hr



Manuals & Guides
CBMT/Q wiring diagram

Product Description

The Systemair 3542 Circular electric heater kit comprising CBMT duct heater, TG-R430 room sensor, and TG-K330 duct sensor.

The duct heater has built-in control equipment for room sensor with setpoint adjuster type TG-R430 and supply air sensor TG-K330. The minimum and maximum supply air temperatures are set on theuct heater circuit board. The CBMT model also has a built-in electronic flow monitor which simplifies the installation since it can be installed "stand alone".

Suitable for
In-duct installations were the air velocity is greater than 1.5 m/s

Installation
The CBMT model also has a built-in electronic flow monitor which simplifies the installation since it can be installed "stand alone".


Whats included

  • Systemair CBMT Duct Heater
  • TG-R430 Room Sensor
  • TG-K330 duct sensor

Technical parameters

Norminal data
Voltage (Nominal) 230 V
Frequency 50 Hz
Phase(s) 1~
Output kW 2.7 kW
Air flow min  110 m³/hr



Manuals & Guides
CBMT/Q wiring diagram

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What diameter duct does the 3542 kit suit?

It is designed for 150mm diameter ducting.

What is the heat output?

2.7kW.

What is included in the kit?

The CBMT duct heater, a TG-R430 room sensor and a TG-K330 duct sensor.

What is the power supply?

230V, 50Hz single phase.

Where can it be installed?

In-duct installations where the air velocity is greater than 1.5 m/s.

Does it need a separate controller?

No, it has built-in control equipment and a flow monitor so it can be installed stand alone.
