Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | AR 630DV Sileo |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 15926 m³/h |
| Phase | 3 Phase |
| Motor | AC |
| Power consumption | 1,950 W |
| Max temp / IP | 60°C / IP54 |
| Speed control | Yes |
Summary
See more specification See less specification

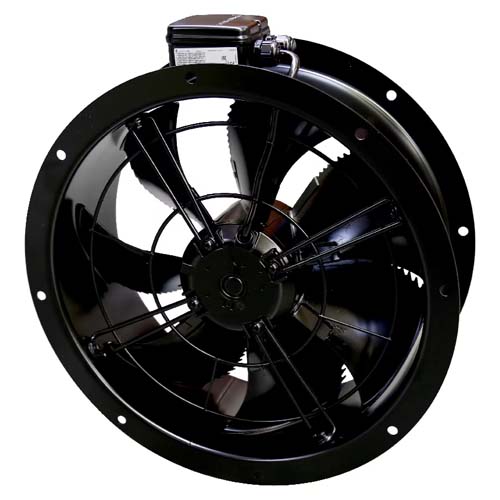

The Systemair AR 630DV is a 630mm Sileo cased axial fan delivering up to 15926 m³/h of low pressure airflow. It uses a noise optimised aluminium axial impeller in a galvanised steel casing with Eurovent 1/2 flanges, finished in black powder coat with an inlet protection guard.
The three phase 4 pole AC external rotor motor draws 1,950 W and carries integrated thermal contacts for connection to a motor protection device. Rated to IP54 with air temperatures up to 60°C, it installs in any position and is speed controllable by star delta switching or a transformer controller for high volume commercial and industrial ventilation.
- 3 Phase
- AC motor
- Up to 15926 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | AR 630DV Sileo |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 15926 m³/h |
| Phase | 3 Phase |
| Motor | AC |
| Power consumption | 1,950 W |
| Max temp / IP | 60°C / IP54 |
| Speed control | Yes |
| Warranty | 1 Year Manufacturer |
Product Description
The Systemair AR 630DV is a 630mm Sileo cased axial fan delivering up to 15926 m³/h of low pressure airflow. It uses a noise optimised aluminium axial impeller in a galvanised steel casing with Eurovent 1/2 flanges, finished in black powder coat with an inlet protection guard.
The three phase 4 pole AC external rotor motor draws 1,950 W and carries integrated thermal contacts for connection to a motor protection device. Rated to IP54 with air temperatures up to 60°C, it installs in any position and is speed controllable by star delta switching or a transformer controller for high volume commercial and industrial ventilation.
- 3 Phase
- AC motor
- Up to 15926 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | AR 630DV Sileo |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 15926 m³/h |
| Phase | 3 Phase |
| Motor | AC |
| Power consumption | 1,950 W |
| Max temp / IP | 60°C / IP54 |
| Speed control | Yes |
| Warranty | 1 Year Manufacturer |
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What airflow does the AR 630DV deliver?
It moves up to 15,926 m³/h at 630mm duct diameter.
Is the AR 630DV single or three phase?
It runs on a three phase 400V AC supply.
Can the AR 630DV be speed controlled?
Yes, by star delta switching or a compatible transformer controller.
What is the IP rating?
The motor is rated IP54 for indoor duct installation.
What air temperature can it handle?
It carries air up to 60°C.
Can it be mounted in any position?
Yes, the AR 630DV installs in any orientation in the duct.
