Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | DEXA dMEV 150 |
| Type | Continuous running dMEV extract fan |
| Spigot | 150 mm |
| Supply | 220-240V 50/60Hz |
| Motor | EC, sealed for life ball bearings |
| Airflow | 5 to 50 l/s (18 to 180 m³/h) |
| Power | 0.7 to 6.5 W |
| SFP | 0.06 to 0.14 W/(l/s) |
| Sound | Below 9 to 36 dB(A) @ 3m |
| Controls | Intelligent humidistat and run-on timer |
| IP rating | IPX4 wall, IPX2 ceiling (IPX4 with ceiling gasket kit) |
| Max ambient | +40°C |
| Colour | White RAL 9010 |
| Weight | 1.2 kg |
Summary
See more specification See less specification

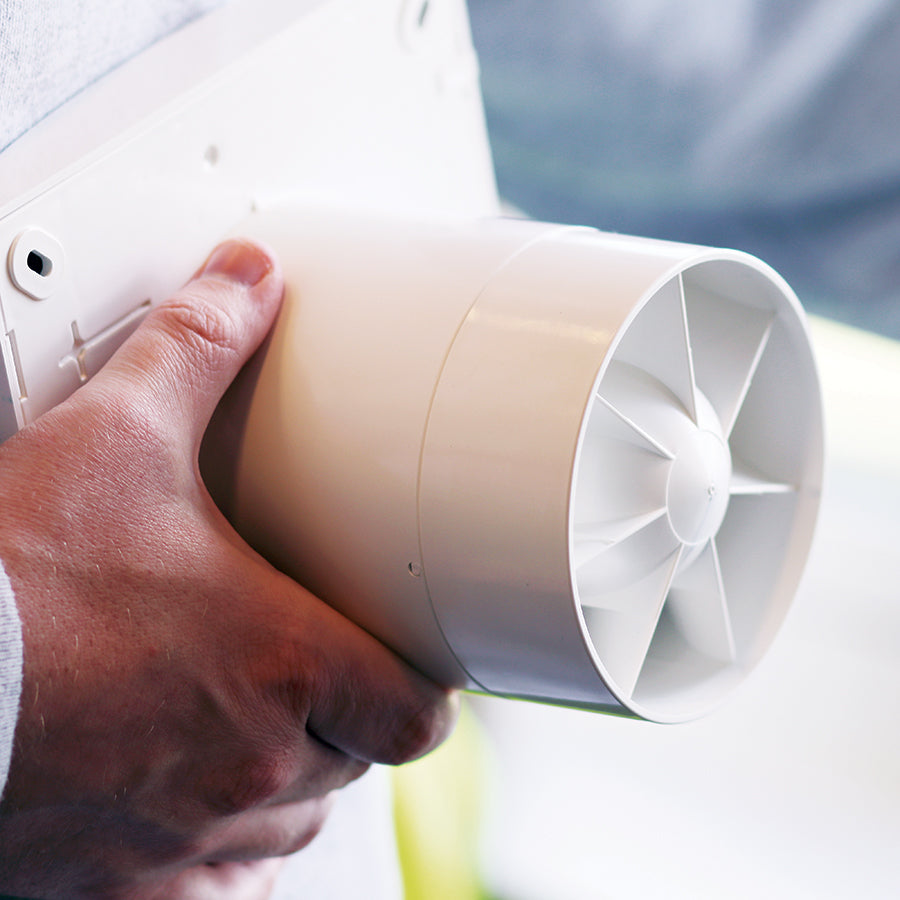

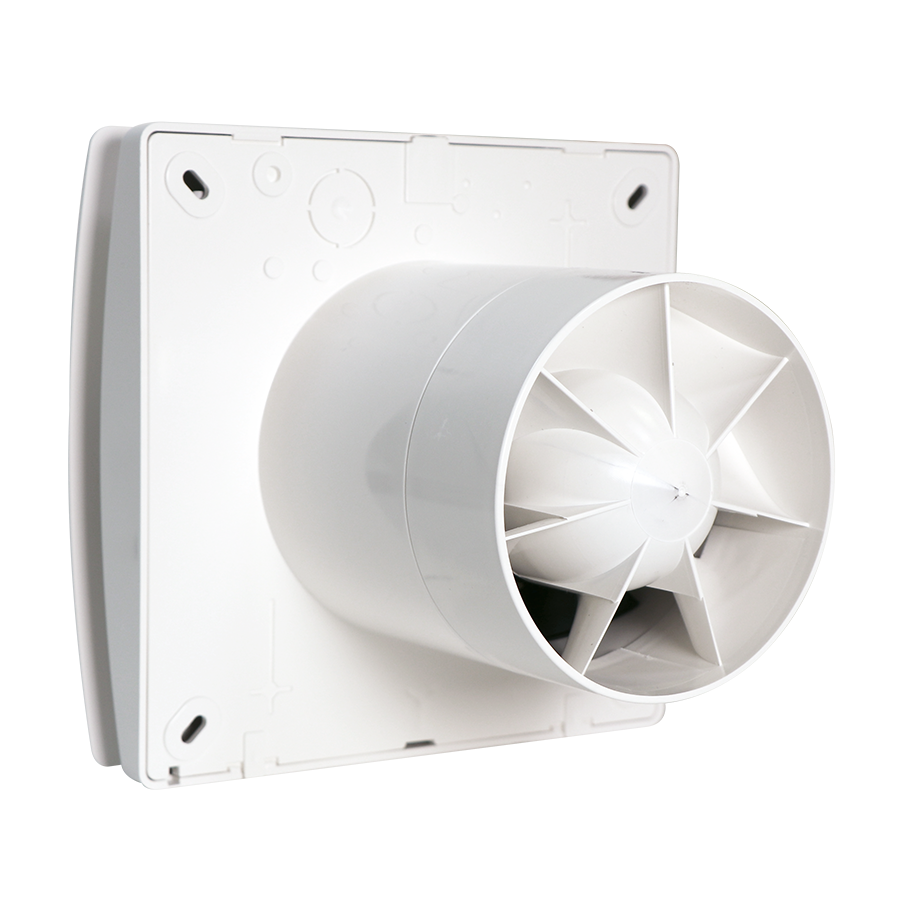

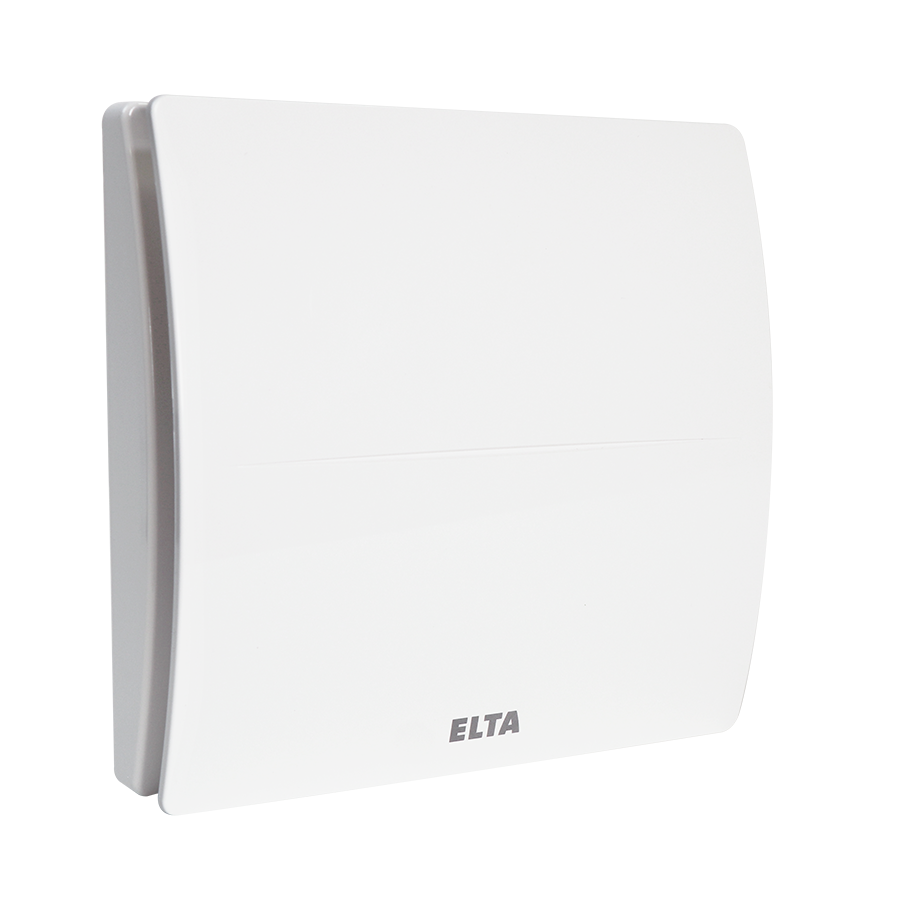

The Elta DEXA dMEV 150 is a 150 mm continuous running decentralised extract fan for bathrooms, kitchens and utility rooms. It trickles quietly all day on an EC motor using as little as 0.7W, then boosts automatically on humidity or its intelligent run-on timer. It replaces the FLUX dMEV range.
- 150 mm continuous running trickle and boost dMEV
- EC motor from 0.7W, up to 50 l/s (180 m³/h)
- Built-in intelligent humidity control and run-on timer
- Adjustable speeds plus constant flow mode to compensate for duct length and wind
- Wall, ceiling or window mounting (window kit 410-WKG150)
- Listed on the SAP PCDB
Suitable for
- Bathrooms, en-suites and toilets
- Kitchens and utility rooms
- New build and refurbishment where continuous extract is specified
Installation
Mount on a wall or ceiling, or through glazing with the Elta 410-WKG150 window kit. Set the trickle and boost rates on commissioning to meet the room's Part F extract rate. The front cover comes off without tools for cleaning. Installation should be carried out by a qualified electrician.
Specifications
| Brand | Elta |
| Model | DEXA dMEV 150 |
| Type | Continuous running dMEV extract fan |
| Spigot | 150 mm |
| Supply | 220-240V 50/60Hz |
| Motor | EC, sealed for life ball bearings |
| Airflow | 5 to 50 l/s (18 to 180 m³/h) |
| Power | 0.7 to 6.5 W |
| SFP | 0.06 to 0.14 W/(l/s) |
| Sound | Below 9 to 36 dB(A) @ 3m |
| Controls | Intelligent humidistat and run-on timer |
| IP rating | IPX4 wall, IPX2 ceiling (IPX4 with ceiling gasket kit) |
| Max ambient | +40°C |
| Colour | White RAL 9010 |
| Weight | 1.2 kg |
Matching accessories
Window kit 410-WKG150.
Manuals & Guides
Elta DEXA dMEV Datasheet
Product Description
The Elta DEXA dMEV 150 is a 150 mm continuous running decentralised extract fan for bathrooms, kitchens and utility rooms. It trickles quietly all day on an EC motor using as little as 0.7W, then boosts automatically on humidity or its intelligent run-on timer. It replaces the FLUX dMEV range.
- 150 mm continuous running trickle and boost dMEV
- EC motor from 0.7W, up to 50 l/s (180 m³/h)
- Built-in intelligent humidity control and run-on timer
- Adjustable speeds plus constant flow mode to compensate for duct length and wind
- Wall, ceiling or window mounting (window kit 410-WKG150)
- Listed on the SAP PCDB
Suitable for
- Bathrooms, en-suites and toilets
- Kitchens and utility rooms
- New build and refurbishment where continuous extract is specified
Installation
Mount on a wall or ceiling, or through glazing with the Elta 410-WKG150 window kit. Set the trickle and boost rates on commissioning to meet the room's Part F extract rate. The front cover comes off without tools for cleaning. Installation should be carried out by a qualified electrician.
Specifications
| Brand | Elta |
| Model | DEXA dMEV 150 |
| Type | Continuous running dMEV extract fan |
| Spigot | 150 mm |
| Supply | 220-240V 50/60Hz |
| Motor | EC, sealed for life ball bearings |
| Airflow | 5 to 50 l/s (18 to 180 m³/h) |
| Power | 0.7 to 6.5 W |
| SFP | 0.06 to 0.14 W/(l/s) |
| Sound | Below 9 to 36 dB(A) @ 3m |
| Controls | Intelligent humidistat and run-on timer |
| IP rating | IPX4 wall, IPX2 ceiling (IPX4 with ceiling gasket kit) |
| Max ambient | +40°C |
| Colour | White RAL 9010 |
| Weight | 1.2 kg |
Matching accessories
Window kit 410-WKG150.
Manuals & Guides
Elta DEXA dMEV Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Elta DEXA dMEV 150 for?
Continuous extract from bathrooms, kitchens and utility rooms, with automatic boost on humidity.
Is it the same as the FLUX dMEV?
DEXA is Elta's current range that replaces FLUX dMEV.
How much air does it move?
From 5 l/s trickle up to 50 l/s boost (18 to 180 m³/h).
Can it go in a window?
Yes, with the Elta 410-WKG150 window kit.
Is it SAP listed?
Yes, it is listed on the SAP PCDB.
