S&P TCBTX2/4-630 Cased Axial Fan Three Phase - 630mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | S and P |
| Model | TCBTX2/4-630 |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 17810 m³/h |
| Phase | Three phase |
| Poles | 4 pole |
| Power | 4014 W |
| Voltage | 400V |
| Noise | 79 dB(A) |
Summary
See more specification See less specification
Please note: this model will soon be discontinued. The replacement is the S and P TCBTX2/4-630 Cased Axial Fan Three Phase - 630mm.

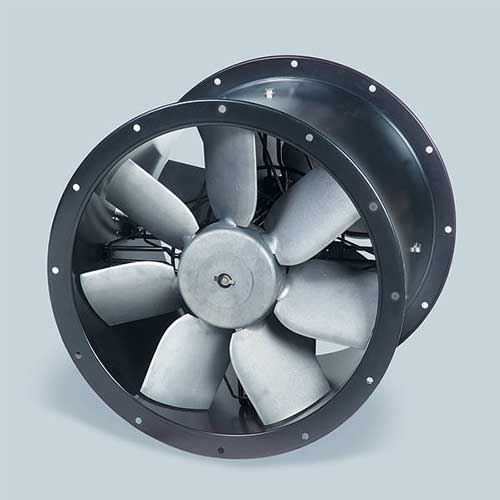

The S and P TCBTX2/4-630 is a three phase contra rotating cased axial fan with a 630mm diameter, delivering airflow up to 17810 m³/h at high pressure for in-line duct mounting.
Powered by a three phase 4 pole AC motor rated IP65, its twin contra rotating impellers double the pressure at the same air volume. It suits demanding commercial and industrial ventilation and is speed controllable by inverter.
- 3 Phase
- AC motor
- Up to 17810 m³/h
- Speed controllable
Specifications
| Brand | S and P |
| Model | TCBTX2/4-630 |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 17810 m³/h |
| Phase | Three phase |
| Poles | 4 pole |
| Power | 4014 W |
| Voltage | 400V |
| Noise | 79 dB(A) |
| IP rating | IP65 |
Manuals & Guides
Product Description
Please note: this model will soon be discontinued. The replacement is the S and P TCBTX2/4-630 Cased Axial Fan Three Phase - 630mm.
The S and P TCBTX2/4-630 is a three phase contra rotating cased axial fan with a 630mm diameter, delivering airflow up to 17810 m³/h at high pressure for in-line duct mounting.
Powered by a three phase 4 pole AC motor rated IP65, its twin contra rotating impellers double the pressure at the same air volume. It suits demanding commercial and industrial ventilation and is speed controllable by inverter.
- 3 Phase
- AC motor
- Up to 17810 m³/h
- Speed controllable
Specifications
| Brand | S and P |
| Model | TCBTX2/4-630 |
| Type | Cased axial fan |
| Diameter | 630mm |
| Max airflow | 17810 m³/h |
| Phase | Three phase |
| Poles | 4 pole |
| Power | 4014 W |
| Voltage | 400V |
| Noise | 79 dB(A) |
| IP rating | IP65 |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What airflow does the S and P TCBTX2/4-630 deliver?
It delivers up to 17,810 m³/h at 630mm diameter with contra rotating impellers.
Is this model still available?
This listing is being discontinued and replaced by the current TCBTX2/4-630 three phase model.
Is the TCBTX2/4-630 single or three phase?
It is three phase, running on a 400V supply.
Can the TCBTX2/4-630 be speed controlled?
Yes, the three phase motor is speed controllable using a frequency inverter.
How noisy is the TCBTX2/4-630?
Sound pressure level is 79 dB(A) measured at three times the impeller diameter.
What IP rating does the TCBTX2/4-630 have?
The motor is rated IP65 with Class F insulation and thermal protection.
