Product Details
Downloads
Specifications
Product specifications
| Brand | S&P |
| Model | JETLINE-125 |
| Type | In-line centrifugal duct fan |
| Power Supply | 1 Phase, 220-240V ~50/60Hz |
| Maximum Airflow | 411 m³/h |
| Maximum Power | 38 W |
| Maximum Current | 0.18 A |
| Motor Speed | 2680 rpm |
| Spigot Diameter | 120 mm |
| Weight | 3.4 kg |
Summary
See more specification See less specification

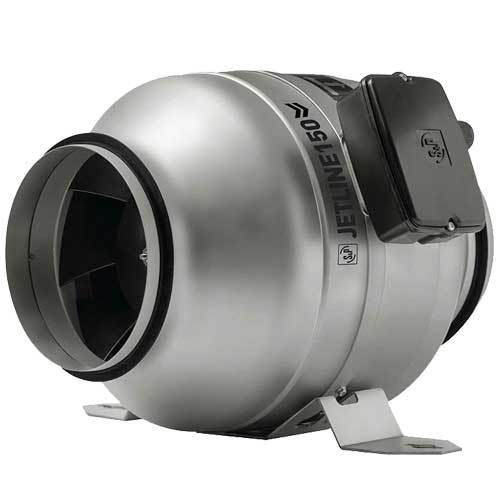

In-line fan for circular duct with low profile compact casing manufactured from galvanised sheet steel and rubber gasket on the flanges. High performance impeller, guide vane and outlet diffuser manufactured from injection-moulded plastic, to increase performances and lower the sound level. IP55 terminal box fixed on the casing. Mounting bracket supplied with the fan, enabling to mount the fan in two different positions and any shaft orientation
Motor
Single-phase external rotor motor assembled with antivibration mount to reduce vibration and noise level, 220-240V50/60Hz, IP44, class F, with thermal protection and speed regulable by tension. Working temperature -20/60ºC
Features
- Max Airflow: 421.2 m3/h
- Max Power: 40 Watts
- Max Current: 0,20 Amps
- Sound pressure Level (dB(A)): 25 - Radiated
- Temperature Range: -20/+60*C
- Weight: 3.4 Kgs
Manuals & Guides
S&P JETLINE-125 In Line Centrifugal Duct Fan - 125mm Datasheet
Product Description
In-line fan for circular duct with low profile compact casing manufactured from galvanised sheet steel and rubber gasket on the flanges. High performance impeller, guide vane and outlet diffuser manufactured from injection-moulded plastic, to increase performances and lower the sound level. IP55 terminal box fixed on the casing. Mounting bracket supplied with the fan, enabling to mount the fan in two different positions and any shaft orientation
Motor
Single-phase external rotor motor assembled with antivibration mount to reduce vibration and noise level, 220-240V50/60Hz, IP44, class F, with thermal protection and speed regulable by tension. Working temperature -20/60ºC
Features
- Max Airflow: 421.2 m3/h
- Max Power: 40 Watts
- Max Current: 0,20 Amps
- Sound pressure Level (dB(A)): 25 - Radiated
- Temperature Range: -20/+60*C
- Weight: 3.4 Kgs
Manuals & Guides
S&P JETLINE-125 In Line Centrifugal Duct Fan - 125mm Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the S&P JETLINE-125?
The JETLINE-125 delivers up to 411 m³/h, suiting extract and supply ventilation across longer duct runs.
Can the fan speed be adjusted?
Yes. The motor is speed controllable by voltage regulation, so airflow and noise can be reduced to suit the installation using a compatible speed controller.
What duct size does the JETLINE-125 fit?
It connects to 125 mm circular ducting, with a spigot diameter of 120 mm.
Is the JETLINE-125 single or three phase?
It is a single-phase unit running on a 220-240V ~50/60Hz supply and drawing up to 0.18 A.
Can the fan be mounted in any position?
Yes. A mounting bracket is supplied that allows the fan to be fitted in two positions and any shaft orientation.
What motor protection does the JETLINE-125 have?
The external rotor AC motor has class F insulation with built-in thermal overload protection and an IP44 rating, and it is mounted on anti-vibration supports to keep noise low.
