Product Details
Downloads
Specifications
Product specifications
| Brand | S&P |
| Model | IRB/2-180 |
| Type | Inline rectangular duct fan |
| Duct size | 300 x 150 mm |
| Max airflow | 510 m³/h |
| Phase | Single phase |
| Pole | 2 pole |
| Motor | AC |
| Power | 63 W |
| Warranty | 2 Years |
Summary
See more specification See less specification

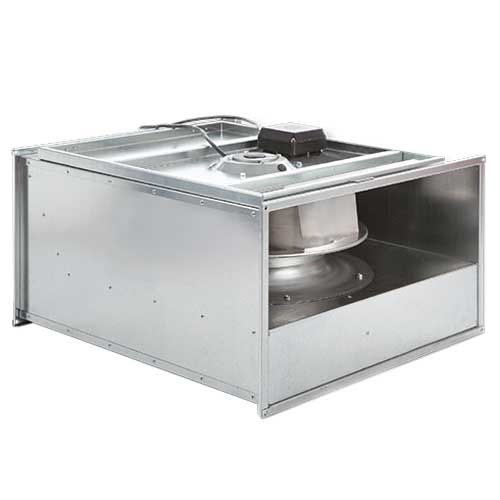

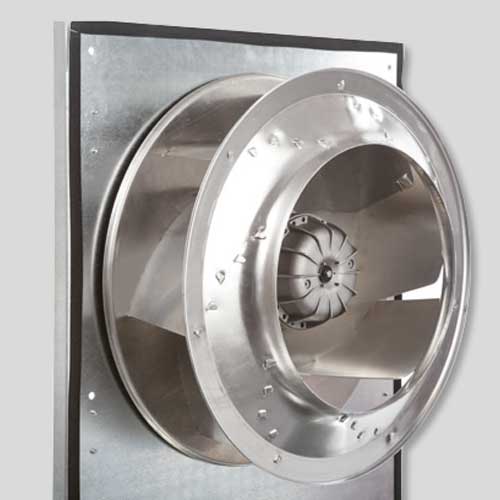

The S&P IRB/2-180 is a single-phase inline rectangular duct fan built for general ventilation where a fan must sit within a rectangular ducted system or where installation space is tight. It uses a high performance, dynamically balanced backward curved centrifugal impeller in a heavy gauge galvanised steel casing, delivering up to 510 m³/h of free air.

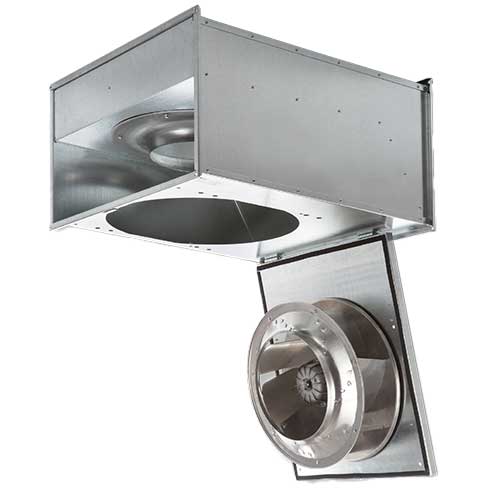

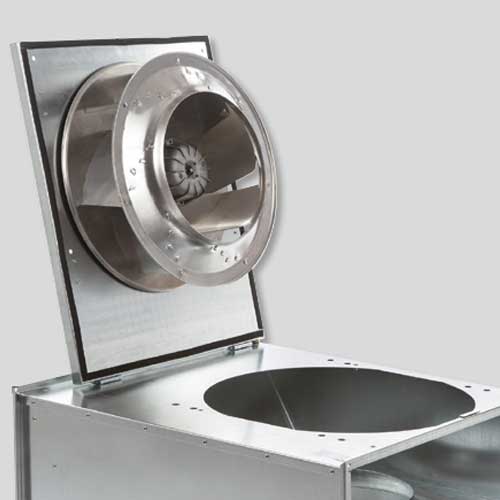

The external rotor motor carries Class F insulation with thermal protection and runs on a 230V-50Hz supply. Speed is controllable by transformer, and the hinged inspection door plus remote IP55 terminal box make cleaning, maintenance and control wiring straightforward. The fan can be mounted in any orientation.
- High performance dynamically balanced centrifugal impeller
- Inspection door for easy cleaning and maintenance
- Can be installed in any orientation
- Remote IP55 terminal box for external controls
- Speed controllable by transformer
Specifications
| Brand | S&P |
| Model | IRB/2-180 |
| Type | Inline rectangular duct fan |
| Duct size | 300 x 150 mm |
| Max airflow | 510 m³/h |
| Phase | Single phase 230V-50Hz |
| Pole | 2 pole |
| Motor | AC external rotor, Class F |
| Max power | 63 W |
| Warranty | 2 Years |
Manuals & Guides
S&P IRB Inline Rectangular Duct Fan Datasheet
Product Description
The S&P IRB/2-180 is a single-phase inline rectangular duct fan built for general ventilation where a fan must sit within a rectangular ducted system or where installation space is tight. It uses a high performance, dynamically balanced backward curved centrifugal impeller in a heavy gauge galvanised steel casing, delivering up to 510 m³/h of free air.
The external rotor motor carries Class F insulation with thermal protection and runs on a 230V-50Hz supply. Speed is controllable by transformer, and the hinged inspection door plus remote IP55 terminal box make cleaning, maintenance and control wiring straightforward. The fan can be mounted in any orientation.
- High performance dynamically balanced centrifugal impeller
- Inspection door for easy cleaning and maintenance
- Can be installed in any orientation
- Remote IP55 terminal box for external controls
- Speed controllable by transformer
Specifications
| Brand | S&P |
| Model | IRB/2-180 |
| Type | Inline rectangular duct fan |
| Duct size | 300 x 150 mm |
| Max airflow | 510 m³/h |
| Phase | Single phase 230V-50Hz |
| Pole | 2 pole |
| Motor | AC external rotor, Class F |
| Max power | 63 W |
| Warranty | 2 Years |
Manuals & Guides
S&P IRB Inline Rectangular Duct Fan Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the S&P IRB/2-180?
It delivers up to 510 m³/h of free air.
What duct size does the IRB/2-180 suit?
It is built for a 300 x 150 mm rectangular duct.
Is the IRB/2-180 single or three phase?
It is single phase, running on a 230V-50Hz supply.
Can the fan speed be controlled?
Yes, speed is controllable using a compatible transformer speed controller such as the RMB range.
Can it be mounted in any position?
Yes, the fan is suitable for mounting in any orientation.
Does it need much maintenance access?
An inspection door and remote terminal box make cleaning, servicing and control wiring easy.
