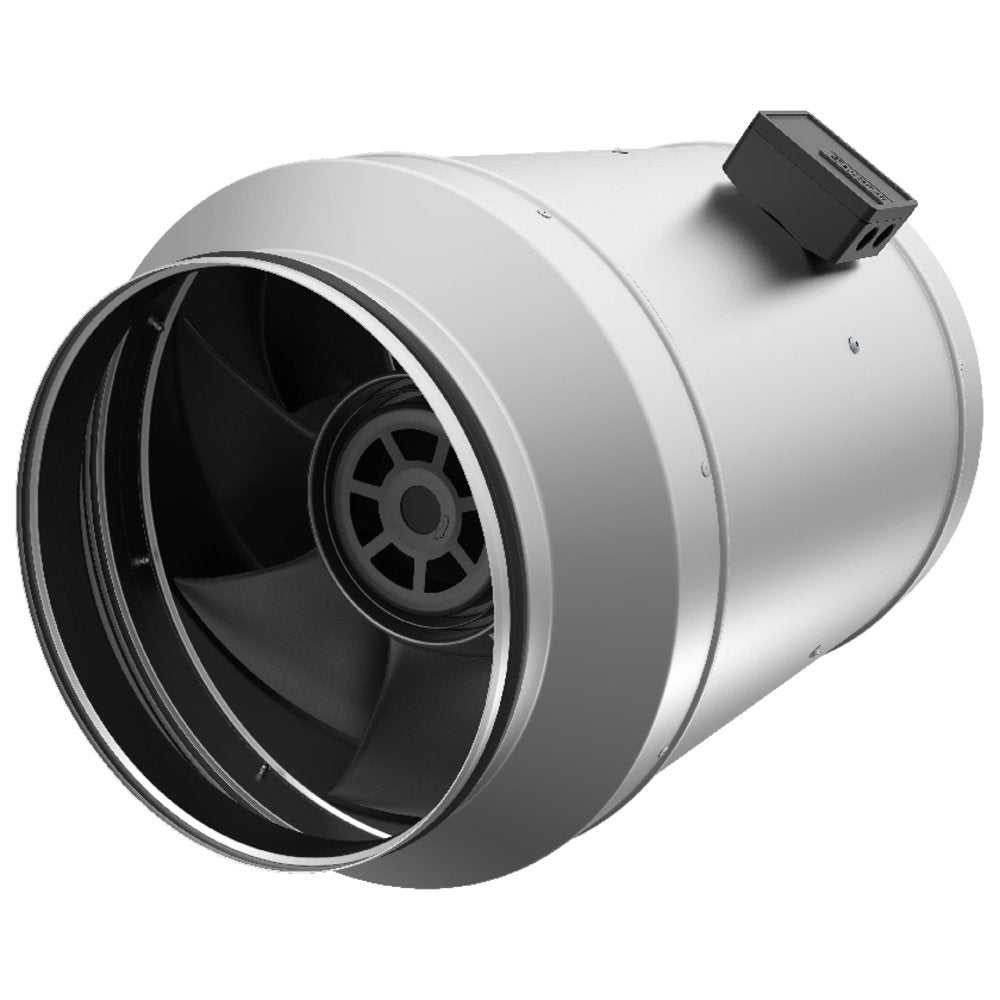

Systemair Prio 400 Circular Duct AC Motor - 400mm
Systemair Prio 400 Circular Duct AC Motor - 400mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | Prio 400 |
| Type | Circular in-line duct fan (prioAir) |
| Duct connection | 400 mm (EN 1506 spigots) |
| Airflow (max) | 4424 m³/h |
| Motor | External-rotor AC, speed-controllable (stepless thyristor or 5-step transformer) |
| Impeller | Aerodynamically optimised with guide vanes |
| Casing | Airtight sheet-steel casing; IP55 terminal box (outdoor/wet-room capable) |
| Protection | Integral thermal contacts, manual reset (EN 60335-2-80) |
| Mounting | Any position; FK mounting clamp (anti-vibration) |
Summary
See more specification See less specification
The Systemair Prio 400 is part of the prioAir series of circular in-line duct fans, with aerodynamically optimised impellers and guide vanes and an integrated external-rotor motor. It delivers up to 4424 m³/h through 400 mm duct with high efficiency, low SFP and a low sound level.
- Airflow up to 4424 m³/h; 400 mm connection (EN 1506 spigots)
- External-rotor AC motor; speed-controllable via stepless thyristor or 5-step transformer
- Aerodynamically optimised impeller and guide vanes; low SFP, high efficiency, low noise
- Airtight sheet-steel casing; IP55 terminal box (outdoor/wet-room capable)
- Integral thermal contacts with manual reset (EN 60335-2-80)
- Installs in any position; FK mounting clamp prevents vibration transfer to the duct
Suitable for
- Duct-mounted extract and supply in commercial and industrial circular duct systems, including outdoor and wet-room duct runs
- Systems where efficiency and low noise matter
Installation
Installs in any position; the FK mounting clamp (accessory) eases installation/removal and prevents vibration transfer. For damp locations a run-on timer is recommended. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | Prio 400 |
| Type | Circular in-line duct fan (prioAir) |
| Duct connection | 400 mm (EN 1506 spigots) |
| Airflow (max) | 4424 m³/h |
| Motor | External-rotor AC, speed-controllable (stepless thyristor or 5-step transformer) |
| Impeller | Aerodynamically optimised with guide vanes |
| Casing | Airtight sheet-steel casing; IP55 terminal box (outdoor/wet-room capable) |
| Protection | Integral thermal contacts, manual reset (EN 60335-2-80) |
| Mounting | Any position; FK mounting clamp (anti-vibration) |
Manuals & Guides
Systemair Prio 400 Datasheet
Product Description
The Systemair Prio 400 is part of the prioAir series of circular in-line duct fans, with aerodynamically optimised impellers and guide vanes and an integrated external-rotor motor. It delivers up to 4424 m³/h through 400 mm duct with high efficiency, low SFP and a low sound level.
- Airflow up to 4424 m³/h; 400 mm connection (EN 1506 spigots)
- External-rotor AC motor; speed-controllable via stepless thyristor or 5-step transformer
- Aerodynamically optimised impeller and guide vanes; low SFP, high efficiency, low noise
- Airtight sheet-steel casing; IP55 terminal box (outdoor/wet-room capable)
- Integral thermal contacts with manual reset (EN 60335-2-80)
- Installs in any position; FK mounting clamp prevents vibration transfer to the duct
Suitable for
- Duct-mounted extract and supply in commercial and industrial circular duct systems, including outdoor and wet-room duct runs
- Systems where efficiency and low noise matter
Installation
Installs in any position; the FK mounting clamp (accessory) eases installation/removal and prevents vibration transfer. For damp locations a run-on timer is recommended. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | Prio 400 |
| Type | Circular in-line duct fan (prioAir) |
| Duct connection | 400 mm (EN 1506 spigots) |
| Airflow (max) | 4424 m³/h |
| Motor | External-rotor AC, speed-controllable (stepless thyristor or 5-step transformer) |
| Impeller | Aerodynamically optimised with guide vanes |
| Casing | Airtight sheet-steel casing; IP55 terminal box (outdoor/wet-room capable) |
| Protection | Integral thermal contacts, manual reset (EN 60335-2-80) |
| Mounting | Any position; FK mounting clamp (anti-vibration) |
Manuals & Guides
Systemair Prio 400 Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Systemair Prio 400 for?
It's a circular in-line duct fan for 400 mm ducting, for efficient, quiet extract or supply in commercial and industrial circular duct systems, including outdoor and wet-room duct runs.
How much air and what duct size?
Up to 4424 m³/h through 400 mm ducting (EN 1506 spigots).
Can it be speed controlled?
Yes, via a stepless thyristor controller or a 5-step transformer.
Is it efficient and quiet?
Yes, aerodynamically optimised impellers and guide vanes give low specific fan power (SFP), high efficiency and a low sound level.
Is it suitable for outdoor or wet-room duct runs?
Yes, the airtight sheet-steel casing and IP55 terminal box make outdoor mounting and wet-room applications possible.
How is it installed?
The FK mounting clamp makes installation and removal easy and prevents vibration transfer to the duct. As a mains fan it should be installed by a qualified electrician.
