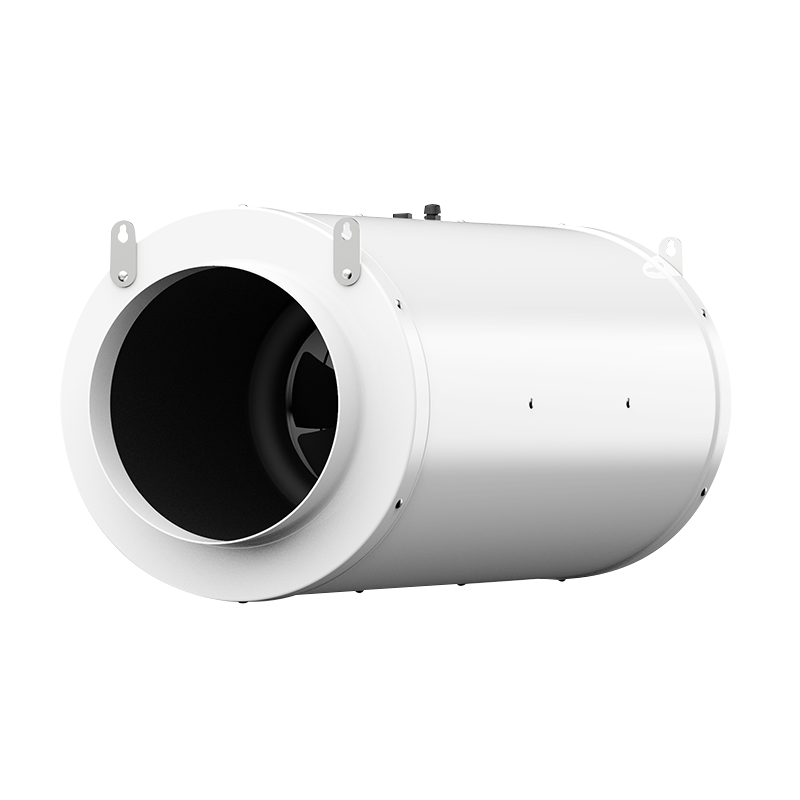

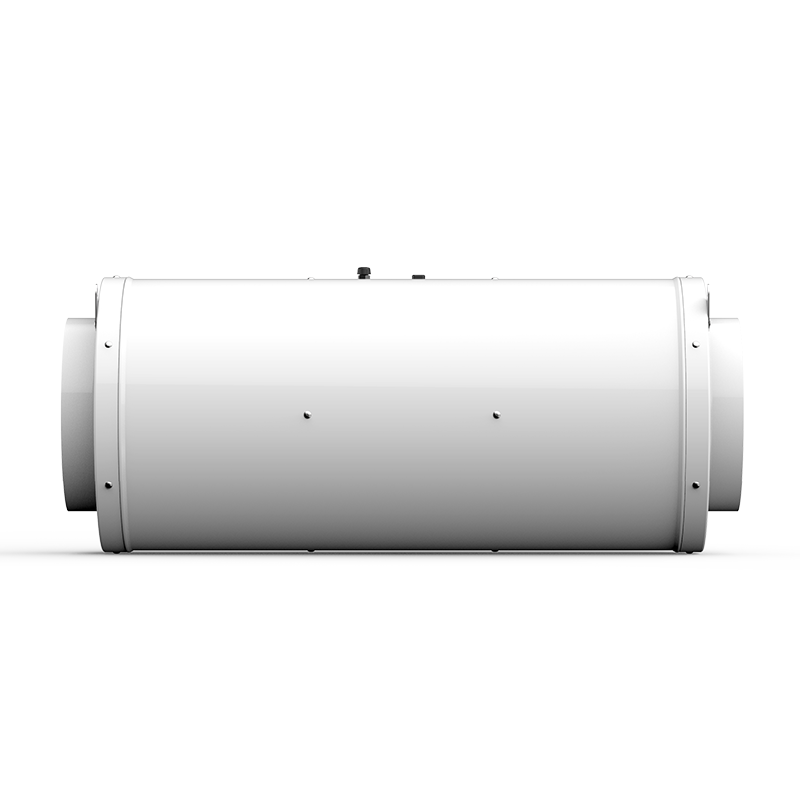

Elta Silent Jetflow SJMF 200-S Inline Mixed Flow Fan Single Phase EC - 200mm
Elta Silent Jetflow SJMF 200-S Inline Mixed Flow Fan Single Phase EC - 200mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Specifications
Product specifications
| Brand | Elta |
| Model | Jetflow Silent SJMF200-S |
| Type | Silent in-line mixed-flow duct fan (EC) |
| Duct connection | 200 mm |
| Airflow (max) | 968 m³/h |
| Motor | Brushless EC, direct drive (IPX4) |
| Impeller | High-efficiency jet-design double mixed-flow |
| Bearings | Sealed-for-life heavy-duty NWB |
| Max air temperature | +60°C |
| Supplied with | 1.5 m mains lead, UK 3-pin plug (3A fuse) |
| Warranty | 2 Year Manufacturer |
Summary
See more specification See less specification

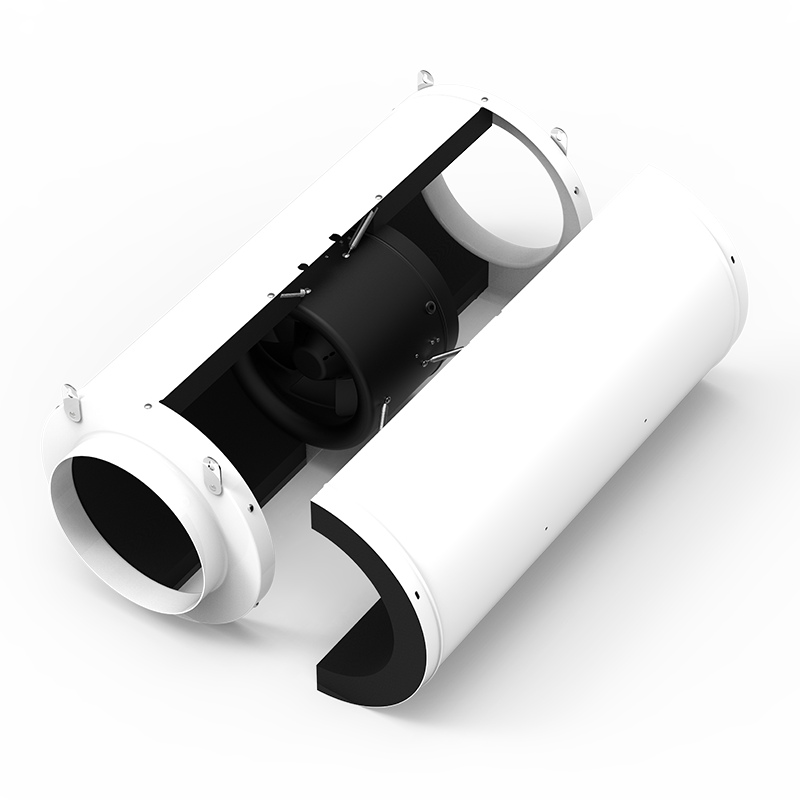

The Elta Jetflow Silent SJMF 200-S is a high-efficiency EC in-line mixed-flow duct fan. Its jet-design double mixed-flow impeller is integrated and directly driven by a brushless EC motor, delivering up to 968 m³/h through 200 mm duct with high static pressure. It's acoustically designed for low noise levels.
- Airflow up to 968 m³/h; 200 mm connection
- Brushless EC motor, direct drive; IPX4
- High-efficiency jet-design double mixed-flow impeller
- Sealed-for-life heavy-duty NWB bearings; suitable up to +60°C
- Acoustically designed for low noise levels
- Fitted with a 1.5 m mains lead and UK 3-pin plug (3A fuse) for easy connection and isolation
Suitable for
- Commercial kitchens, catering, factories, schools, retail and commercial units
- Higher-pressure duct extract where energy efficiency matters
Installation
Fitted with a 1.5 m mains lead and BS1363 UK 3-pin plug (3A fuse), convenient for connecting to a socket and providing a means of isolation/disconnection. Install per the supplied instructions.
Specifications
| Brand | Elta |
| Model | Jetflow Silent SJMF200-S |
| Type | Silent in-line mixed-flow duct fan (EC) |
| Duct connection | 200 mm |
| Airflow (max) | 968 m³/h |
| Motor | Brushless EC, direct drive (IPX4) |
| Impeller | High-efficiency jet-design double mixed-flow |
| Bearings | Sealed-for-life heavy-duty NWB |
| Max air temperature | +60°C |
| Supplied with | 1.5 m mains lead, UK 3-pin plug (3A fuse) |
| Warranty | 2 Year Manufacturer |
Manuals & Guides
Elta Jetflow Silent SJMF 200-S Datasheet
Elta Jetflow Silent SJMF 200-S Installation Guide
Product Description
The Elta Jetflow Silent SJMF 200-S is a high-efficiency EC in-line mixed-flow duct fan. Its jet-design double mixed-flow impeller is integrated and directly driven by a brushless EC motor, delivering up to 968 m³/h through 200 mm duct with high static pressure. It's acoustically designed for low noise levels.
- Airflow up to 968 m³/h; 200 mm connection
- Brushless EC motor, direct drive; IPX4
- High-efficiency jet-design double mixed-flow impeller
- Sealed-for-life heavy-duty NWB bearings; suitable up to +60°C
- Acoustically designed for low noise levels
- Fitted with a 1.5 m mains lead and UK 3-pin plug (3A fuse) for easy connection and isolation
Suitable for
- Commercial kitchens, catering, factories, schools, retail and commercial units
- Higher-pressure duct extract where energy efficiency matters
Installation
Fitted with a 1.5 m mains lead and BS1363 UK 3-pin plug (3A fuse), convenient for connecting to a socket and providing a means of isolation/disconnection. Install per the supplied instructions.
Specifications
| Brand | Elta |
| Model | Jetflow Silent SJMF200-S |
| Type | Silent in-line mixed-flow duct fan (EC) |
| Duct connection | 200 mm |
| Airflow (max) | 968 m³/h |
| Motor | Brushless EC, direct drive (IPX4) |
| Impeller | High-efficiency jet-design double mixed-flow |
| Bearings | Sealed-for-life heavy-duty NWB |
| Max air temperature | +60°C |
| Supplied with | 1.5 m mains lead, UK 3-pin plug (3A fuse) |
| Warranty | 2 Year Manufacturer |
Manuals & Guides
Elta Jetflow Silent SJMF 200-S Datasheet
Elta Jetflow Silent SJMF 200-S Installation Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Elta Jetflow Silent SJMF 200-S for?
It's a high-efficiency EC in-line mixed-flow duct fan for 200 mm ducting, for commercial kitchens, catering, factories, schools, retail and commercial units.
How much air and what duct size?
Up to 968 m³/h through 200 mm ducting.
Why an EC motor?
The brushless EC motor is highly energy-efficient and easy to control, directly driving a jet-design double mixed-flow impeller for strong airflow and high static pressure.
Is it quiet?
Yes, this Silent (-S) version is acoustically designed for low noise levels while keeping the same performance.
How is it installed?
It's fitted with a 1.5 m mains lead and UK 3-pin plug (3A fuse), convenient for connecting to a socket and providing a means of isolation.
Is it maintenance-free?
Yes, sealed-for-life heavy-duty bearings mean no routine lubrication; install on a suitable supply per the instructions.
