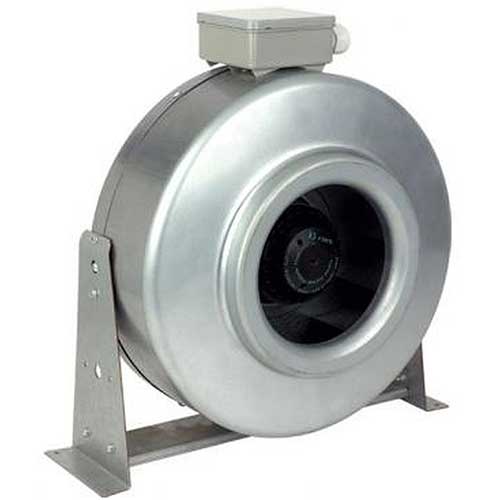

Vent Axia SDX150 Inline Centrifugal Duct Fan 150mm
Product Description
The Vent-Axia SDX150 is part of the SDX Euroflow range of in-line centrifugal duct fans, designed around an efficient backward-curved centrifugal impeller and external-rotor motor for a compact design, high performance and low sound levels. The pressed-steel casing incorporates an aerodynamic airflow guide vane, and it moves up to 792 m³/h (free air) through 150 mm duct.
- Airflow up to 792 m³/h (free air); 150 mm connection
- External-rotor AC motor; all models speed-controllable (230 V, 1~, 50 Hz)
- Backward-curved centrifugal impeller with guide vane; balanced to ISO 1940 Grade G6.3
- Pressed-steel casing; IP44 Class B motor; -25°C to +60°C, up to 95% RH
- Manual-reset thermal overload protection; IP54 terminal box
- Supplied with a simple mounting foot; tested to BS848
Suitable for
- Clean-air duct extract or supply in commercial and domestic systems
- Compact in-line installation where low noise matters
Installation
Fits in-line using the supplied mounting foot; speed-controllable via a compatible controller. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Vent-Axia |
| Model | SDX150 |
| Type | Euroflow in-line centrifugal duct fan |
| Duct connection | 150 mm |
| Airflow (max, free air) | 792 m³/h |
| Motor | External-rotor AC, speed-controllable (230 V, 1~, 50 Hz) |
| Impeller | Backward-curved centrifugal with guide vane; balanced to ISO 1940 G6.3 |
| Casing | Pressed steel; IP44 motor, Class B; -25°C to +60°C |
| Protection | Manual-reset thermal overload; IP54 terminal box |
| Warranty | 2 Year Manufacturer |
Manuals & Guides
Vent-Axia SDX150 Datasheet
Vent-Axia SDX150 Installation Guide
