Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | RVK 315E2 |
| Type | Inline circular duct fan |
| Duct connection | 315 mm |
| Airflow (max) | 1364 m³/h |
| Motor | External-rotor AC, speed-controllable (230 V, 1~, 50 Hz) |
| Casing | PA6 fibreglass-reinforced plastic (airtight; wet-room capable) |
| Protection | IP44 terminal box; integral thermal contacts (auto reset) |
| Max air temperature | 70°C |
| Mounting | Any position; FK bracket included |
Summary
See more specification See less specification

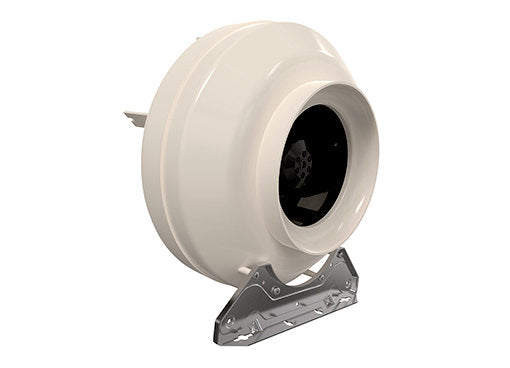

The Systemair RVK 315E2 is part of the RVK series of inline duct fans, designed for installation in circular ducting. The casing is manufactured from PA6 fibreglass-reinforced plastic for a low-leakage, airtight construction, and together with the IP44-rated terminal box this makes it suitable even for duct-connected wet-room applications. It delivers up to 1364 m³/h through 315 mm duct.
- Airflow up to 1364 m³/h; 315 mm connection
- Speed-controllable AC, 230 V, 1~, 50 Hz (stepless thyristor or 5-step transformer)
- Backward-curved external-rotor motor; integral thermal contacts (auto reset)
- Airtight PA6 fibreglass-reinforced casing; IP44 terminal box; wet-room capable
- Can be installed in any position; FK mounting clamp included (reduces vibration)
- Maintenance-free; suitable for air temperatures up to 70°C
Suitable for
- Duct-mounted extract and supply, including wet-room applications
- Commercial and domestic circular duct systems
Installation
Installs in any position using the FK mounting clamp, which eases fitting/removal and isolates vibration. Speed control via thyristor or 5-step transformer. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | RVK 315E2 |
| Type | Inline circular duct fan |
| Duct connection | 315 mm |
| Airflow (max) | 1364 m³/h |
| Motor | External-rotor AC, speed-controllable (230 V, 1~, 50 Hz) |
| Casing | PA6 fibreglass-reinforced plastic (airtight; wet-room capable) |
| Protection | IP44 terminal box; integral thermal contacts (auto reset) |
| Max air temperature | 70°C |
| Mounting | Any position; FK bracket included |
Manuals & Guides
Systemair RVK 315E2 Datasheet
Product Description
The Systemair RVK 315E2 is part of the RVK series of inline duct fans, designed for installation in circular ducting. The casing is manufactured from PA6 fibreglass-reinforced plastic for a low-leakage, airtight construction, and together with the IP44-rated terminal box this makes it suitable even for duct-connected wet-room applications. It delivers up to 1364 m³/h through 315 mm duct.
- Airflow up to 1364 m³/h; 315 mm connection
- Speed-controllable AC, 230 V, 1~, 50 Hz (stepless thyristor or 5-step transformer)
- Backward-curved external-rotor motor; integral thermal contacts (auto reset)
- Airtight PA6 fibreglass-reinforced casing; IP44 terminal box; wet-room capable
- Can be installed in any position; FK mounting clamp included (reduces vibration)
- Maintenance-free; suitable for air temperatures up to 70°C
Suitable for
- Duct-mounted extract and supply, including wet-room applications
- Commercial and domestic circular duct systems
Installation
Installs in any position using the FK mounting clamp, which eases fitting/removal and isolates vibration. Speed control via thyristor or 5-step transformer. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Systemair |
| Model | RVK 315E2 |
| Type | Inline circular duct fan |
| Duct connection | 315 mm |
| Airflow (max) | 1364 m³/h |
| Motor | External-rotor AC, speed-controllable (230 V, 1~, 50 Hz) |
| Casing | PA6 fibreglass-reinforced plastic (airtight; wet-room capable) |
| Protection | IP44 terminal box; integral thermal contacts (auto reset) |
| Max air temperature | 70°C |
| Mounting | Any position; FK bracket included |
Manuals & Guides
Systemair RVK 315E2 Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Systemair RVK 315E2 for?
It's an inline circular duct fan for 315 mm ducting, suitable for a wide range of extract and supply applications, including duct-connected wet rooms thanks to its airtight casing.
How much air and what duct size?
Up to 1364 m³/h through 315 mm ducting.
Can it be speed controlled?
Yes, it's speed-controllable on 230 V single-phase, via a stepless thyristor controller or a 5-step transformer.
Is it suitable for damp or wet-room duct runs?
Yes, the airtight PA6 fibreglass-reinforced casing and IP44-rated terminal box make it suitable for duct-connected wet-room applications.
Can it be mounted in any position?
Yes, it installs in any position, with the included FK mounting clamp for easy fitting/removal and reduced vibration transfer to the duct.
Is it reliable and protected?
Yes, an external-rotor motor with integral thermal contacts (automatic reset), maintenance-free running, and suitability for air temperatures up to 70°C. Install by a qualified electrician.
