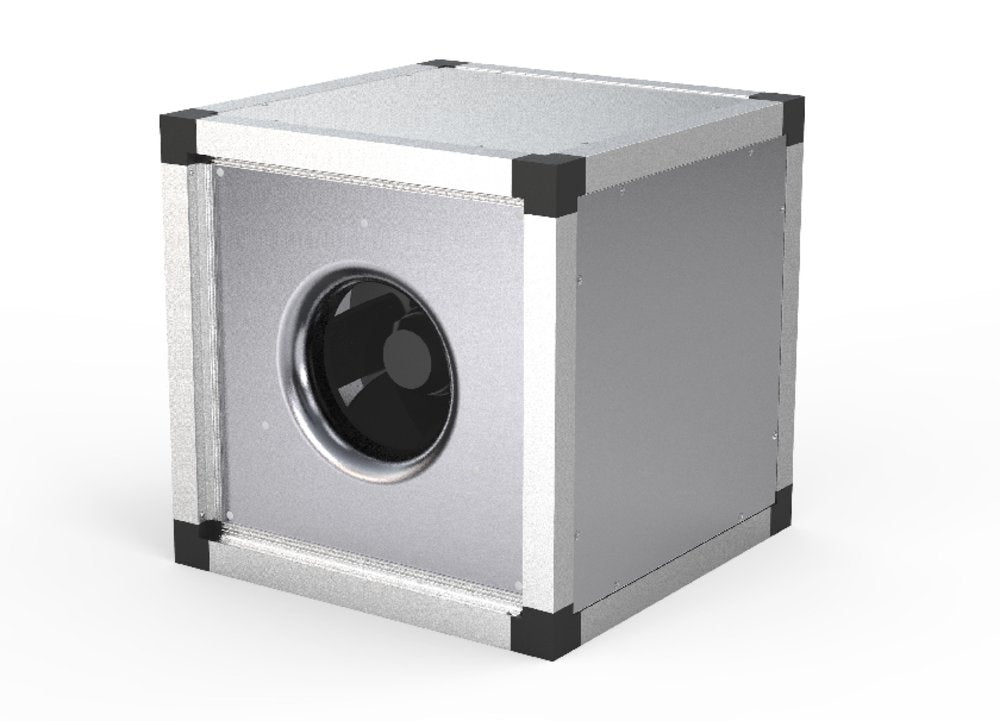

Systemair MUB 630D4 IE3 Multibox Fan - 3 Phase
Systemair MUB 630D4 IE3 Multibox Fan - 3 Phase
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | MUB 062 630D4 |
| Type | Multibox centrifugal box fan |
| Phase | 3 Phase |
| Motor | High-efficiency IE3 AC |
| Maximum airflow | Up to 15,297 m³/h |
| Impeller | Backward-curved, aluminium |
| Casing | Aluminium frame, galvanised steel panels |
| Insulation | 30 mm mineral wool |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
The MUB fan are equipped with high efficient IE3 motors. The MUB fans have an impeller with backward curved blades, manufactured from aluminium. Speed control is only possible by using a frequency converter. Motor protection is done by cold conductors (PTC), which have to be connected to an external motor protection device.
The casing consists of an aluminium frame with fiberglass reinforced plastic corners of PA6; highly shock-resistant. The double skin panels are manufactured from galvanized steel with 30 mm mineral wool insulation. To avoid condensation the profile is provided with a separate chamber to fix screws. The Multibox fans are delivered for straight through airflow but can easily be rebuilt due to removable panels.
This allows flexible ventilation solutions. The MUB can also be used as extract- or supply air unit in air handling units. Installation in any mounting position is possible.
- High efficient motor IE3
- Speed-controllable via frequency converter
- Integral cold conductor (PTC)
- Low sound level
- Flexible airflow direction due to removable panels
- Installation in any mounting position
- Easy to maintain and reliable
Installation
Installation in any mounting position is possible.
Specifications
| Brand | Systemair |
| Phase | 3 Phase |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair MUB 630D4 IE3 Multibox Fan - 3 Phase Datasheet
Product Description
The MUB fan are equipped with high efficient IE3 motors. The MUB fans have an impeller with backward curved blades, manufactured from aluminium. Speed control is only possible by using a frequency converter. Motor protection is done by cold conductors (PTC), which have to be connected to an external motor protection device.
The casing consists of an aluminium frame with fiberglass reinforced plastic corners of PA6; highly shock-resistant. The double skin panels are manufactured from galvanized steel with 30 mm mineral wool insulation. To avoid condensation the profile is provided with a separate chamber to fix screws. The Multibox fans are delivered for straight through airflow but can easily be rebuilt due to removable panels.
This allows flexible ventilation solutions. The MUB can also be used as extract- or supply air unit in air handling units. Installation in any mounting position is possible.
- High efficient motor IE3
- Speed-controllable via frequency converter
- Integral cold conductor (PTC)
- Low sound level
- Flexible airflow direction due to removable panels
- Installation in any mounting position
- Easy to maintain and reliable
Installation
Installation in any mounting position is possible.
Specifications
| Brand | Systemair |
| Phase | 3 Phase |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair MUB 630D4 IE3 Multibox Fan - 3 Phase Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the Systemair MUB 630D4 IE3?
It moves up to 15,297 m³/h at maximum speed, based on the Systemair datasheet for the MUB 062 630D4.
Is the MUB 630D4 IE3 single or three phase?
It is a three-phase 400V fan fitted with a high-efficiency IE3 motor.
How is the fan speed controlled?
Speed control is achieved using a frequency converter (variable speed drive); the IE3 motor is not voltage-controllable.
Can it be installed indoors and outdoors?
Yes. The insulated double-skin casing permits both indoor and outdoor installation in any mounting position.
What motor protection is provided?
Integral PTC cold conductors are fitted and must be wired to an external motor protection device.
Can the airflow direction be changed?
Yes. The fan is supplied for straight-through airflow, but removable panels allow 90 degree discharge.
