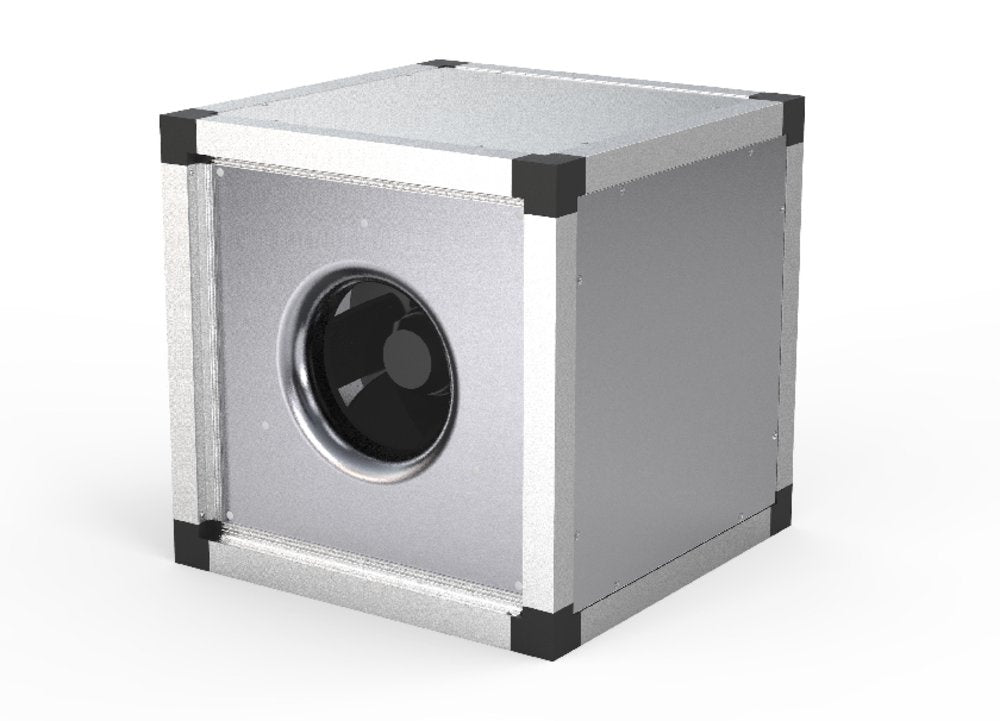

Systemair MUB 355EV Multibox Extractor Fan - 1 Phase
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | MUB 025 355EV |
| Type | Multibox centrifugal box fan |
| Phase | 1 Phase |
| Motor | Voltage-controllable external rotor AC |
| Maximum airflow | Up to 3,030 m³/h |
| Impeller | Backward-curved, aluminium |
| Casing | Aluminium frame with PA6 corners |
| Insulation | 30 mm glass wool |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. Depending on the version, output control via transformer, star-delta switching or frequency inverter is possible.
• Speed-controllable
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable
Suitable for
Commercial kitchen extract systems when positioned 3 meter from canopy.
Depending on the version, equipped with voltage controllable external rotor motors or frequency inverter controllable IE2 standard motors.
Installation
Integrated thermal contacts with cables for connection to a motor protection switching device. The IE2 motors are equipped with PTC thermistors with cables for connection to a motor protection switching device.
Specifications
| Brand | Systemair |
| Phase | 1 Phase |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair MUB 355EV Kitchen Extractor Fan AC Motor - 1 Phase data sheet
Product Description
Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. Depending on the version, output control via transformer, star-delta switching or frequency inverter is possible.
• Speed-controllable
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable
Suitable for
Commercial kitchen extract systems when positioned 3 meter from canopy.
Depending on the version, equipped with voltage controllable external rotor motors or frequency inverter controllable IE2 standard motors.
Installation
Integrated thermal contacts with cables for connection to a motor protection switching device. The IE2 motors are equipped with PTC thermistors with cables for connection to a motor protection switching device.
Specifications
| Brand | Systemair |
| Phase | 1 Phase |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Systemair MUB 355EV Kitchen Extractor Fan AC Motor - 1 Phase data sheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the Systemair MUB 355EV?
It moves up to 3,030 m³/h at maximum speed, based on the Systemair datasheet for the MUB 025 355EV.
Is the MUB 355EV single or three phase?
It is a single-phase 230V fan with a voltage-controllable external rotor AC motor.
Can the fan speed be controlled?
Yes. Speed is adjustable using a compatible transformer or frequency-inverter controller to suit the required duty.
Is it suitable for commercial kitchen extract?
Yes, provided it is positioned at least 3 metres from the canopy, in line with Systemair's guidance.
Can it be installed in any position?
Yes. It can be mounted in any position, and removable panels let you change the airflow direction to suit the installation.
What motor protection does it have?
Integral thermal contacts are fitted for connection to an external motor protection switching device.
