Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | KVK 125 Duo |
| Configuration | Twin fan (run and standby) |
| Phase | 1 Phase (230V single phase) |
| Motor type | AC external rotor |
| Max airflow | Up to 190 m³/h |
| Duct connection | Circular, 125 mm |
| Speed control | Speed controllable |
| Insulation | 50 mm mineral wool |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

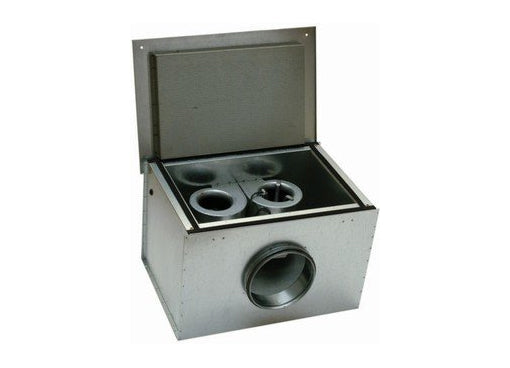

KVK DUO models have double inlet centrifugal fans with forward-curved impellers and maintenance-free external rotor motors. To protect the motors from overheating the fans have integral thermal contacts with leads for connection to a motor protection device.
The KVK DUO models are manufactured from galvanised sheet steel and are thermally and acoustically insulated with a 50 mm layer of mineral wool. Internal surfaces are protected with perforated galvanised sheet steel.
- Speed-controllable
- Integral thermal contacts
- Low noise level
- Twin fan
Installation
The fans are easy to connect to spiral ducts using FK mounting clamps.
Specifications
| Brand | Systemair |
| Warranty | 1 Year Manufacturers |
| Duct dimension; Circular, inlet | 125mm |
| Duct connection type | Circular |
| Motor Type | AC |
Manuals & Guides
Systemair KVK 125 Duo Twin Fan - 125mm
Product Description
KVK DUO models have double inlet centrifugal fans with forward-curved impellers and maintenance-free external rotor motors. To protect the motors from overheating the fans have integral thermal contacts with leads for connection to a motor protection device.
The KVK DUO models are manufactured from galvanised sheet steel and are thermally and acoustically insulated with a 50 mm layer of mineral wool. Internal surfaces are protected with perforated galvanised sheet steel.
- Speed-controllable
- Integral thermal contacts
- Low noise level
- Twin fan
Installation
The fans are easy to connect to spiral ducts using FK mounting clamps.
Specifications
| Brand | Systemair |
| Warranty | 1 Year Manufacturers |
| Duct dimension; Circular, inlet | 125mm |
| Duct connection type | Circular |
| Motor Type | AC |
Manuals & Guides
Systemair KVK 125 Duo Twin Fan - 125mm
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
How does the twin run-and-standby design work?
The KVK 125 Duo houses two fans in one casing. One runs as the duty fan while the other stays on standby, ready to take over if the duty fan stops or on alternation, so ventilation continues without interruption and each fan shares the workload over time.
What is the maximum airflow of the KVK 125 Duo?
It delivers up to 190 m³/h, suiting smaller extract and supply systems on 125 mm ducting.
Can the fan speed be controlled?
Yes. The KVK 125 Duo is speed controllable, so airflow can be adjusted to suit the system.
What duct size does it fit?
It connects to 125 mm circular spiral ducting using FK mounting clamps for a quick and secure fit.
Is the motor protected against overheating?
Yes. The fan has integral thermal contacts with leads for connection to a motor protection device, safeguarding the maintenance-free external rotor motor.
Is the KVK 125 Duo insulated for quiet running?
Yes. The galvanised steel casing is thermally and acoustically insulated with a 50 mm layer of mineral wool to keep noise levels low.
