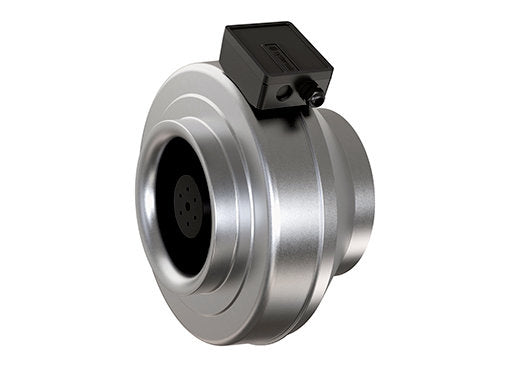

Systemair K100 EC Motor Duct Fan Single Phase - 100mm/4"
Systemair K100 EC Motor Duct Fan Single Phase - 100mm/4"
£315.99
SKU: 16955

Systemair K100 EC Motor Duct Fan Single Phase - 100mm/4"

Up to 320 m³/h
100mm connection
EC motor
Estimated delivery
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Systemair
Model K100 EC
Type Circular inline duct fan (EC)
Duct connection 100 mm
Airflow (max) 320 m³/h
Motor EC, high-efficiency, speed-controllable (230 V, 1~, 50 Hz)
Casing Absolutely airtight seamed (Class C)
Control Integral speed regulator (built-in potentiometer)
Protection Integral thermal protection
Mounting Any position

Summary

The Systemair K100 EC is a low-energy EC circular duct fan for 100 mm ducting, moving up to 320 m³/h. Its EC motor eliminates motor slip losses and always runs at optimal load, making it exceptionally energy-efficient, extremely quiet and easy to control.

The absolutely airtight seamed casing (Class C) suits demanding duct applications, and an integral speed regulator (a built-in potentiometer) inside the terminal box makes commissioning easy. It runs on 230 V single-phase, has integral thermal protection, can be installed in any position and is maintenance-free.

See more specification See less specification

The Systemair K100 EC is part of Systemair's range of circular duct EC fans, notable for their economical use of energy and excellent ease of control. EC technology eliminates the slip losses in the motor and ensures it always runs at optimal load, so the fan is energy-efficient, extremely quiet and maintenance-free. It delivers up to 320 m³/h through 100 mm duct.

  • Airflow up to 320 m³/h; 100 mm connection
  • High-efficiency EC motor; speed-controllable, 230 V, 1~, 50 Hz
  • Absolutely airtight, seamed casing (Class C)
  • Integral speed regulator (built-in potentiometer) inside the terminal box for easy commissioning
  • Integral thermal protection; low noise level
  • Can be installed in any position; maintenance-free

Suitable for

  • Energy-efficient duct-mounted extract and supply
  • Commercial and domestic circular duct systems

Installation

Installs in any position; speed set via the built-in potentiometer in the terminal box. Should be installed on a suitable circuit by a qualified electrician.

Specifications

Brand Systemair
Model K100 EC
Type Circular inline duct fan (EC)
Duct connection 100 mm
Airflow (max) 320 m³/h
Motor EC, high-efficiency, speed-controllable (230 V, 1~, 50 Hz)
Casing Absolutely airtight seamed (Class C)
Control Integral speed regulator (built-in potentiometer)
Protection Integral thermal protection
Mounting Any position

Manuals & Guides
Systemair K100 EC Datasheet

Product Description

The Systemair K100 EC is part of Systemair's range of circular duct EC fans, notable for their economical use of energy and excellent ease of control. EC technology eliminates the slip losses in the motor and ensures it always runs at optimal load, so the fan is energy-efficient, extremely quiet and maintenance-free. It delivers up to 320 m³/h through 100 mm duct.

  • Airflow up to 320 m³/h; 100 mm connection
  • High-efficiency EC motor; speed-controllable, 230 V, 1~, 50 Hz
  • Absolutely airtight, seamed casing (Class C)
  • Integral speed regulator (built-in potentiometer) inside the terminal box for easy commissioning
  • Integral thermal protection; low noise level
  • Can be installed in any position; maintenance-free

Suitable for

  • Energy-efficient duct-mounted extract and supply
  • Commercial and domestic circular duct systems

Installation

Installs in any position; speed set via the built-in potentiometer in the terminal box. Should be installed on a suitable circuit by a qualified electrician.

Specifications

Brand Systemair
Model K100 EC
Type Circular inline duct fan (EC)
Duct connection 100 mm
Airflow (max) 320 m³/h
Motor EC, high-efficiency, speed-controllable (230 V, 1~, 50 Hz)
Casing Absolutely airtight seamed (Class C)
Control Integral speed regulator (built-in potentiometer)
Protection Integral thermal protection
Mounting Any position

Manuals & Guides
Systemair K100 EC Datasheet

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

What is the Systemair K100 EC for?

It's a low-energy EC circular duct fan for 100 mm ducting, for efficient, quiet extract or supply in commercial and domestic duct systems.

How much air and what duct size?

Up to 320 m³/h through 100 mm ducting.

Why an EC motor?

EC technology eliminates motor slip losses and keeps the motor at optimal load, so it's far more energy-efficient and much easier to control than a standard AC fan.

How is the speed controlled?

Via an integral speed regulator, a potentiometer built into the terminal box, which also makes commissioning straightforward. It runs on 230 V single-phase.

Is it quiet and low-maintenance?

Yes, EC fans are extremely quiet and maintenance-free, with an absolutely airtight seamed casing (Class C) and integral thermal protection.

Can it be mounted in any position?

Yes, it installs in any position. As a mains fan it should be installed by a qualified electrician.
