Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | DHS Sileo 560DS |
| Type | Roof fan |
| Diameter | 560mm |
| Max airflow | 7993 m³/h |
| Phase | 3 Phase |
| Motor | AC |
| Power | 697 W |
| Voltage | 400V |
| Max temp / IP | 60°C / IP54 |
Summary
See more specification See less specification

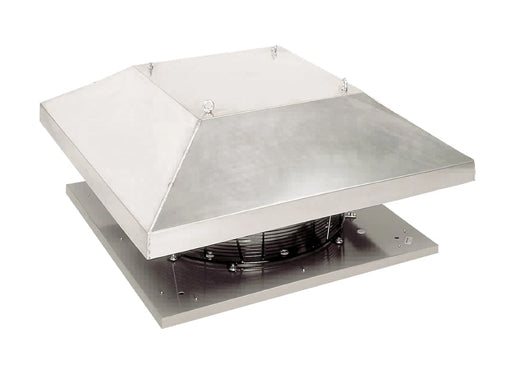

The Systemair DHS Sileo 560 Three Phase is a 560mm centrifugal roof-mounted extract fan delivering up to 7993 m³/h. Its 3D profiled backward-curved impeller and external rotor motor move very high air volumes at medium pressure with very low noise, built for large commercial and industrial extract.
This DS variant runs on a three-phase 400V AC motor with D/Y connection for two speeds and horizontal discharge, and is fully speed controllable over the voltage. The motor uses external leads for a protection device, the aluminium casing suits coastal applications, and it handles air up to 60°C at IP54.
- 3 Phase
- AC motor
- Up to 7993 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | DHS Sileo 560DS |
| Type | Roof fan |
| Diameter | 560mm |
| Max airflow | 7993 m³/h |
| Phase | 3 Phase |
| Motor | AC |
| Power | 697 W |
| Voltage | 400V |
| Max temp / IP | 60°C / IP54 |
Manuals & Guides
Product Description
The Systemair DHS Sileo 560 Three Phase is a 560mm centrifugal roof-mounted extract fan delivering up to 7993 m³/h. Its 3D profiled backward-curved impeller and external rotor motor move very high air volumes at medium pressure with very low noise, built for large commercial and industrial extract.
This DS variant runs on a three-phase 400V AC motor with D/Y connection for two speeds and horizontal discharge, and is fully speed controllable over the voltage. The motor uses external leads for a protection device, the aluminium casing suits coastal applications, and it handles air up to 60°C at IP54.
- 3 Phase
- AC motor
- Up to 7993 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | DHS Sileo 560DS |
| Type | Roof fan |
| Diameter | 560mm |
| Max airflow | 7993 m³/h |
| Phase | 3 Phase |
| Motor | AC |
| Power | 697 W |
| Voltage | 400V |
| Max temp / IP | 60°C / IP54 |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What size is this DHS Sileo 560?
It has a 560mm diameter and is a roof-mounted centrifugal extract fan.
What airflow does it deliver?
Up to 7,993 m³/h at free air from its 3D profiled backward-curved impeller.
Is it single or three phase?
It uses a three-phase 400V AC motor with D/Y connection for two speeds.
Can the speed be controlled?
Yes, the motor is speed controllable over the voltage or via a frequency converter with an all-pole sine filter.
What air temperature can it handle?
It carries extract air up to 60°C and the motor is rated IP54.
How is the motor protected?
The motor uses external leads for connection to a motor protection device.
