Product specifications
| Brand | Systemair |
| Model | DHS 400E6 Sileo |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 2419 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 111 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP54 |
Summary
See more specification See less specification

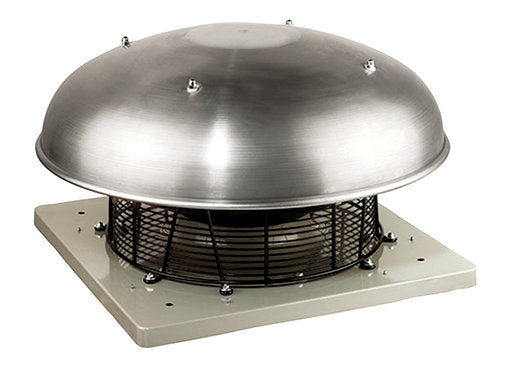

The Systemair DHS Sileo 400E6 is a 400mm centrifugal roof-mounted extract fan delivering up to 2419 m³/h. Its 3D profiled backward-curved impeller and slower 6-pole external rotor motor move good air volumes at very low noise, ideal where quiet extract is the priority in commercial buildings.
The 400E6 runs on a single-phase 230V AC motor (E6, 6-pole 720 rpm) with horizontal discharge and is fully speed controllable over the voltage. The motor uses external leads for a protection device, the aluminium casing suits coastal applications, and it handles air up to 60°C at IP54.
- 1 Phase
- AC motor
- Up to 2419 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | DHS 400E6 Sileo |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 2419 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 111 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP54 |
Manuals & Guides
Product Description
The Systemair DHS Sileo 400E6 is a 400mm centrifugal roof-mounted extract fan delivering up to 2419 m³/h. Its 3D profiled backward-curved impeller and slower 6-pole external rotor motor move good air volumes at very low noise, ideal where quiet extract is the priority in commercial buildings.
The 400E6 runs on a single-phase 230V AC motor (E6, 6-pole 720 rpm) with horizontal discharge and is fully speed controllable over the voltage. The motor uses external leads for a protection device, the aluminium casing suits coastal applications, and it handles air up to 60°C at IP54.
- 1 Phase
- AC motor
- Up to 2419 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | DHS 400E6 Sileo |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 2419 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 111 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP54 |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What size is the DHS 400E6?
It has a 400mm diameter and is a roof-mounted centrifugal extract fan.
What airflow does it deliver?
Up to 2,419 m³/h at free air from its 3D profiled backward-curved impeller.
Why choose the E6 over the E4?
The 6-pole E6 motor runs slower for lower noise, at a lower maximum airflow than the E4.
Can the speed be controlled?
Yes, the motor is speed controllable over the voltage with a compatible controller.
What air temperature can it handle?
It carries extract air up to 60°C and the motor is rated IP54.
Is it single or three phase?
It uses a single-phase 230V AC motor for a standard supply.
