Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | DHS 400E4 Sileo |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 4273 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 475 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP54 |
Summary
See more specification See less specification

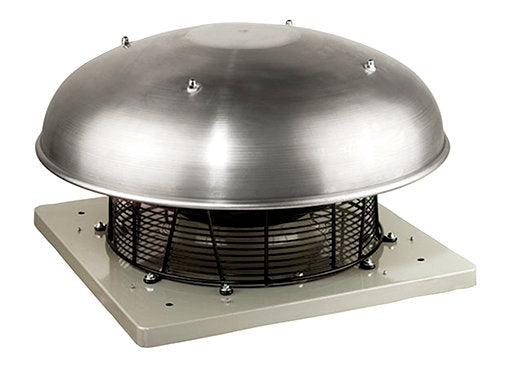

The Systemair DHS Sileo 400E4 is a 400mm centrifugal roof-mounted extract fan delivering up to 4273 m³/h. Its 3D profiled backward-curved impeller and external rotor motor move high air volumes at medium pressure with excellent sound levels, suited to commercial and industrial extract ventilation.
The 400E4 runs on a single-phase 230V AC motor (E4, 4-pole 1440 rpm) with horizontal discharge and is fully speed controllable over the voltage. The motor uses external leads for a protection device, the aluminium casing suits coastal applications, and it handles air up to 60°C at IP54.
- 1 Phase
- AC motor
- Up to 4273 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | DHS 400E4 Sileo |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 4273 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 475 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP54 |
Manuals & Guides
Product Description
The Systemair DHS Sileo 400E4 is a 400mm centrifugal roof-mounted extract fan delivering up to 4273 m³/h. Its 3D profiled backward-curved impeller and external rotor motor move high air volumes at medium pressure with excellent sound levels, suited to commercial and industrial extract ventilation.
The 400E4 runs on a single-phase 230V AC motor (E4, 4-pole 1440 rpm) with horizontal discharge and is fully speed controllable over the voltage. The motor uses external leads for a protection device, the aluminium casing suits coastal applications, and it handles air up to 60°C at IP54.
- 1 Phase
- AC motor
- Up to 4273 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | DHS 400E4 Sileo |
| Type | Roof fan |
| Diameter | 400mm |
| Max airflow | 4273 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 475 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP54 |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What size is the DHS 400E4?
It has a 400mm diameter and is a roof-mounted centrifugal extract fan.
What airflow does it deliver?
Up to 4,273 m³/h at free air from its 3D profiled backward-curved impeller.
Is the 400E4 single or three phase?
It uses a single-phase 230V AC motor for a standard supply.
Can the speed be controlled?
Yes, the motor is speed controllable over the voltage with a compatible controller.
What air temperature can it handle?
It carries extract air up to 60°C and the motor is rated IP54.
How is the motor protected?
The motor uses external leads for connection to a motor protection device.
