Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | DHS Sileo 225EZ |
| Type | Roof fan |
| Diameter | 225mm |
| Max airflow | 850 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 114 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP44 |
Summary
See more specification See less specification

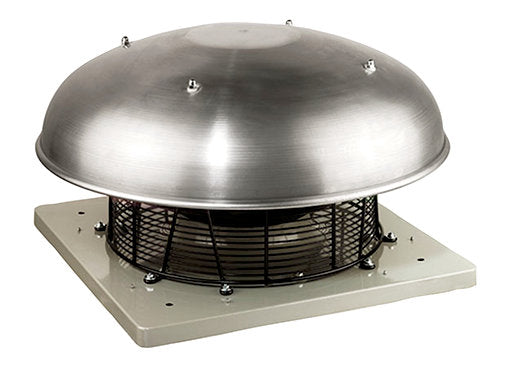

The Systemair DHS Sileo 225EZ is a 225mm centrifugal roof-mounted extract fan delivering up to 850 m³/h. Its 3D profiled backward-curved impeller and external rotor motor give high airflow at medium pressure with very low noise, making it well suited to exhaust ventilation on single and multiple dwellings, offices and light commercial buildings.
The 225EZ runs on a single-phase 230V AC motor (EZ, 2-pole 2-speed) with horizontal discharge and is fully speed controllable over the voltage. An integral thermal contact with manual reset protects the motor, the aluminium casing suits coastal applications, and it handles air up to 60°C at IP44.
- 1 Phase
- AC motor
- Up to 850 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | DHS Sileo 225EZ |
| Type | Roof fan |
| Diameter | 225mm |
| Max airflow | 850 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 114 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP44 |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Product Description
The Systemair DHS Sileo 225EZ is a 225mm centrifugal roof-mounted extract fan delivering up to 850 m³/h. Its 3D profiled backward-curved impeller and external rotor motor give high airflow at medium pressure with very low noise, making it well suited to exhaust ventilation on single and multiple dwellings, offices and light commercial buildings.
The 225EZ runs on a single-phase 230V AC motor (EZ, 2-pole 2-speed) with horizontal discharge and is fully speed controllable over the voltage. An integral thermal contact with manual reset protects the motor, the aluminium casing suits coastal applications, and it handles air up to 60°C at IP44.
- 1 Phase
- AC motor
- Up to 850 m³/h
- Speed controllable
Specifications
| Brand | Systemair |
| Model | DHS Sileo 225EZ |
| Type | Roof fan |
| Diameter | 225mm |
| Max airflow | 850 m³/h |
| Phase | 1 Phase |
| Motor | AC |
| Power | 114 W |
| Voltage | 230V |
| Max temp / IP | 60°C / IP44 |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What size is the DHS Sileo 225EZ?
It has a 225mm diameter and is a roof-mounted centrifugal extract fan.
What airflow does it deliver?
Up to 850 m³/h at free air, driven by a 3D profiled backward-curved impeller.
Is the 225EZ single or three phase?
It uses a single-phase 230V AC motor, so it wires to a standard supply.
Can the speed be controlled?
Yes, the motor is speed controllable over the voltage using a compatible thyristor or transformer controller.
What air temperature can it handle?
It carries extract air up to 60°C and the motor is rated IP44.
Where is it typically used?
Exhaust ventilation on single and multiple dwellings, offices and light commercial buildings.
