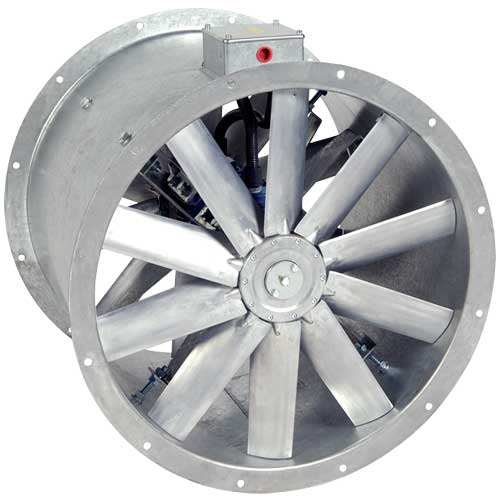

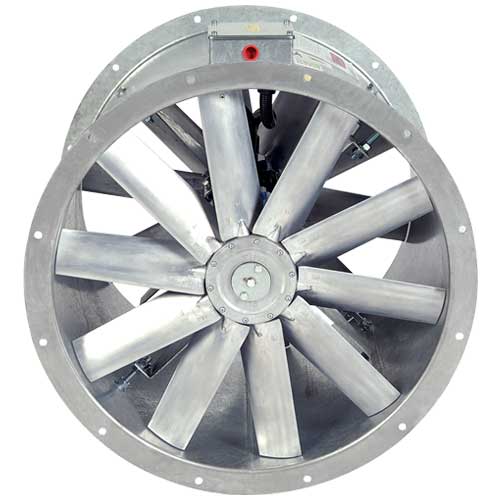

Elta Turboflow TF450 Contra Rotating Axial Flow Fan Single Phase AC - 450mm
Elta Turboflow TF450 Contra Rotating Axial Flow Fan Single Phase AC - 450mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | TF450/4-1AC |
| Type | Two-stage contra-rotating axial flow fan |
| Fan diameter | 450 mm |
| Maximum airflow | 7452 m³/h (2.07 m³/s) |
| Maximum static pressure | 330 Pa |
| Motor | Single phase AC, 230V 1~ |
| Operating temperature | Up to +50°C |
| Impeller | Adjustable-pitch aerofoil, pressure die-cast aluminium |
| Terminal box | IP55, externally mounted |
Summary
See more specification See less specification
- Standard size 450 mm
-
Air volume flow rates up to 2.07 m3/s
-
Static pressures up to 330 Pa
-
Suitable for operating temperatures up to +50℃
-
Ideal for internal or external use
The Turboflow TF is a two stage axial fan which has been specifically developed to tackle higher pressure requirements with a straightforward, efficient and definitive approach.
Installation
Motors are wired via a weatherproofed cable to an IP55 protected terminal box mounted on the outside of the unit casing for ease of electrical connection.
Design

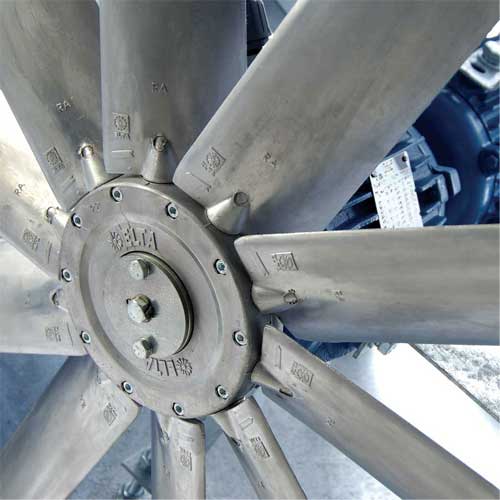

High efficiency adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium. Increased blade chord and twist provides 7% higher efficiency reducing overall energy consumption. The use of contra-rotating impellers allow operation at higher pressures within a smaller fan diameter.
Guides & Manuals
Elta Turboflow TF450 Circular Duct Fan Single Phase EC - 450mm Datasheet
Elta Turboflow TF450 Circular Duct Fan Single Phase EC - 450mm Installation
Product Description
- Standard size 450 mm
-
Air volume flow rates up to 2.07 m3/s
-
Static pressures up to 330 Pa
-
Suitable for operating temperatures up to +50℃
-
Ideal for internal or external use
The Turboflow TF is a two stage axial fan which has been specifically developed to tackle higher pressure requirements with a straightforward, efficient and definitive approach.
Installation
Motors are wired via a weatherproofed cable to an IP55 protected terminal box mounted on the outside of the unit casing for ease of electrical connection.
Design
High efficiency adjustable pitch aerofoil impellers are provided with blades made from high quality pressure die cast aluminium. Increased blade chord and twist provides 7% higher efficiency reducing overall energy consumption. The use of contra-rotating impellers allow operation at higher pressures within a smaller fan diameter.
Guides & Manuals
Elta Turboflow TF450 Circular Duct Fan Single Phase EC - 450mm Datasheet
Elta Turboflow TF450 Circular Duct Fan Single Phase EC - 450mm Installation
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is a contra-rotating axial fan and why does the TF450 have two stages?
It uses two impellers spinning in opposite directions, one behind the other. The second stage recovers the swirl from the first, so the fan develops much higher static pressure (up to 330 Pa on the TF450) than a single-stage axial of the same 450 mm diameter, making it ideal for long or high-resistance duct runs.
What airflow and pressure does the Turboflow TF450 deliver?
It moves up to 7452 m³/h and develops up to 330 Pa of static pressure at maximum duty. Actual airflow depends on the resistance of your ductwork, so send us your system pressure and we'll confirm the duty point.
Can the TF450 be speed controlled?
Yes. It runs on a single-phase AC supply and can be run at reduced speed with a compatible controller. The fan is rated up to +50°C.
Can the Turboflow TF450 be installed outdoors?
Yes. The motor is wired via a weatherproof cable to an externally mounted IP55 terminal box, so the fan is suitable for internal or external use. Position it so the terminal box and any controller stay accessible for maintenance.
What are the impellers made from?
High-efficiency adjustable-pitch aerofoil impellers with blades in pressure die-cast aluminium. The increased blade chord and twist give around 7% higher efficiency, reducing running costs over the life of the fan.
How do I choose between the TF450, TF500, TF560 and TF630?
They step up in diameter and duty, with larger cases moving more air at higher pressure. Pick the size from your required airflow and system resistance. If you're between sizes or unsure, send us the duty and duct size and we'll confirm the right model.
