Product Details
Downloads
Specifications
Product specifications
| Brand | Vortice |
| Model | 300/12" ARI-LL-S (12416) |
| Type | Auto-reversible axial fan |
| Phase | 1 Phase |
| Motor | AC |
| Nominal diameter | 300 mm (12") |
| Max airflow (extract) | 1750 m³/h |
| Max airflow (supply) | 1000 m³/h |
| Power | 75 W |
| Voltage | 220-240 V |
Summary
See more specification See less specification

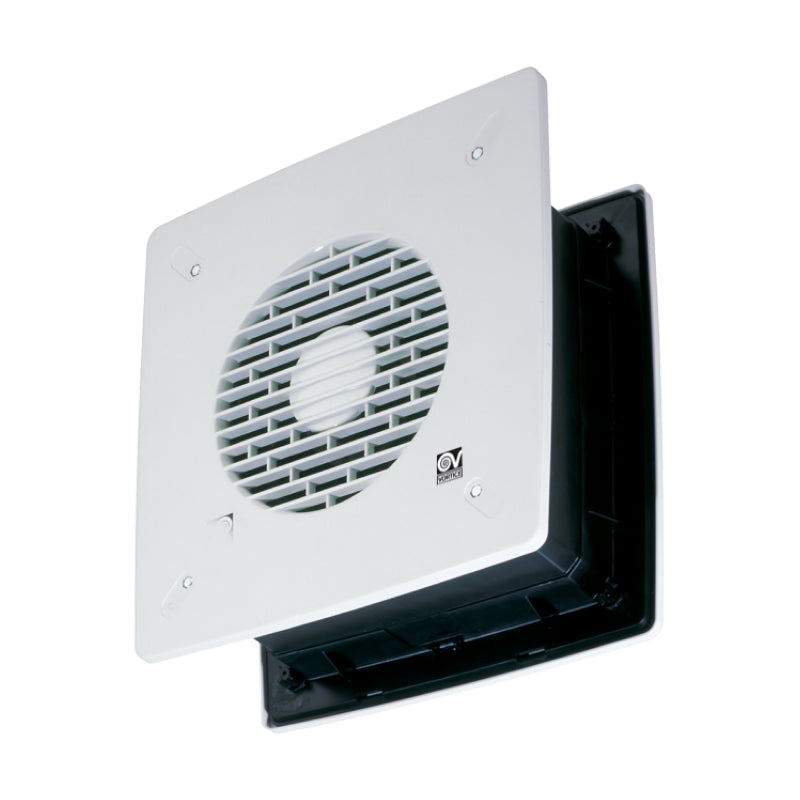

Supply and exhaust inbuilt axial fan, 300mm/12″ diameter, reversible with automatic shutters, long life motor and super boosted performance.
A more cost effective option to the Vent Axia T-Series range.
Features
- Supply and extract axial fan
- Can be used for many commercial applications i.e.: pubs, sport centres, community halls and restaurants
- Can be used with a variety of sensors
- IPX4 splash proof protection on all models
Specifications
| Brand | Vortice |
Manuals & Guides
Vortice VARIO 300/12" ARI-LL-S Flush Auto Reversible Wall Axial Fan - 300mm 12" 2416 datasheet
Product Description
Supply and exhaust inbuilt axial fan, 300mm/12″ diameter, reversible with automatic shutters, long life motor and super boosted performance.
A more cost effective option to the Vent Axia T-Series range.
Features
- Supply and extract axial fan
- Can be used for many commercial applications i.e.: pubs, sport centres, community halls and restaurants
- Can be used with a variety of sensors
- IPX4 splash proof protection on all models
Specifications
| Brand | Vortice |
Manuals & Guides
Vortice VARIO 300/12" ARI-LL-S Flush Auto Reversible Wall Axial Fan - 300mm 12" 2416 datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What does auto-reversible mean on the Vortice Vario 300/12" fan?
It can run in either direction, drawing fresh air into the space (supply) or extracting stale air out, and it can reverse automatically to balance airflow, giving intake and extract from a single unit in a heat-recovery-style cycle.
How much air can the Vario 300/12" 12416 move?
It delivers up to 1750 m³/h in extract mode and up to 1000 m³/h in supply mode.
Can the fan speed be controlled?
Yes, the fan can be used with Vortice speed controllers and a variety of sensors, so the airflow can be adjusted to suit the room.
Where is this fan designed to be installed?

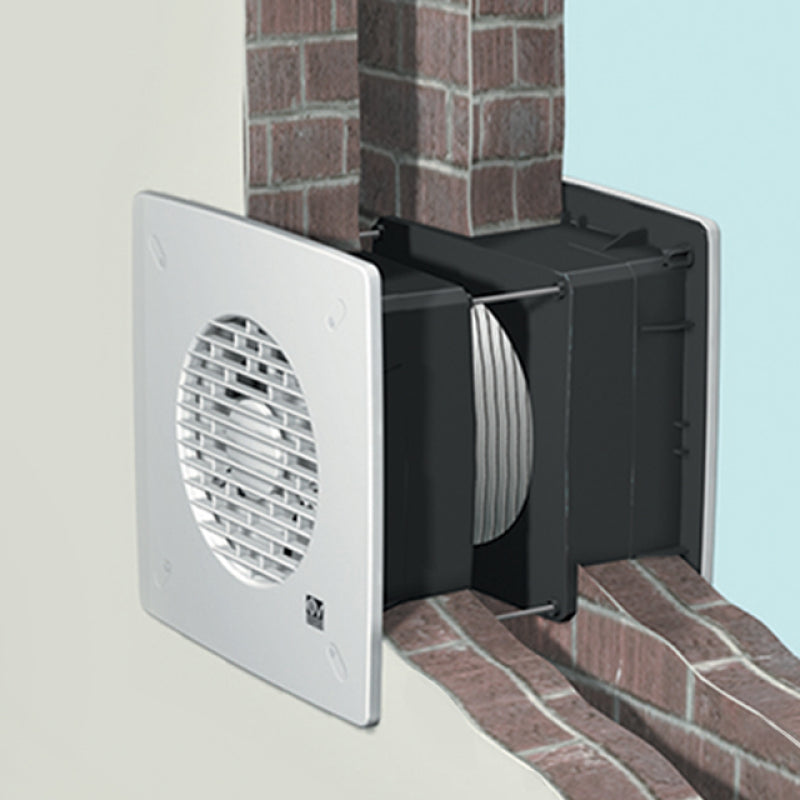

It is designed for flush, recessed wall installation and suits commercial spaces such as pubs, sports centres, community halls and restaurants.
What stops draughts when the fan is off?
Automatic shutters close when the fan stops, preventing the entry of cold air and unwanted smells.
What power supply does it need?
It runs on a single-phase 220-240 V AC supply and draws up to 75 W.
