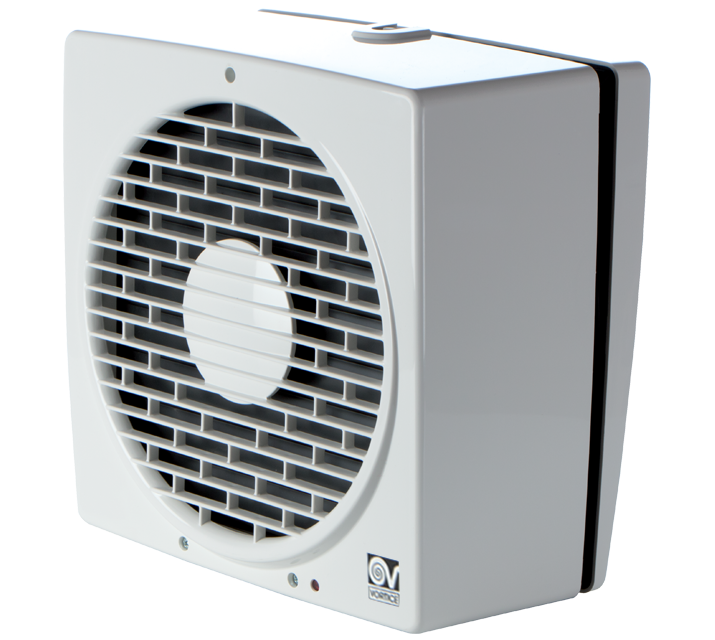

Vortice Vario 150/6″ Auto Reversible Window/Wall Axial Fan - 150mm 6" 12615
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Vortice |
| Model | 150/6" AR-LL-S (12615) |
| Type | Auto-reversible axial fan |
| Phase | 1 Phase |
| Motor | AC |
| Nominal diameter | 150 mm (6") |
| Max airflow (intake) | 380 m³/h |
| Max airflow (extract) | 215 m³/h |
| Power | 35 W |
| Voltage | 220-240 V |
Summary
See more specification See less specification
- Model designed for window/wall mounted installation.
- Reversibility function (intake or extraction).
- Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
- Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
- Nominal diameter 150 mm.
- Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
- IMQ SAFETY and IMQ PERFORMANCE certifications.
Manuals & Guides
Vortice Vario 150/6″ AR-LL-S 12615 Window/Wall Axial Fan - 150mm 6" 12615 datasheet
Product Description
- Model designed for window/wall mounted installation.
- Reversibility function (intake or extraction).
- Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
- Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
- Nominal diameter 150 mm.
- Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
- IMQ SAFETY and IMQ PERFORMANCE certifications.
Manuals & Guides
Vortice Vario 150/6″ AR-LL-S 12615 Window/Wall Axial Fan - 150mm 6" 12615 datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What does auto-reversible mean on this Vario 150/6" fan?
It can either supply fresh air into the room or extract stale air out, and it can switch direction automatically, giving intake and extract from one unit in a heat-recovery-style cycle.
How much air does the Vario 150/6" 12615 move?
It delivers up to 380 m³/h on intake and up to 215 m³/h on extract.
Can I control the fan speed?
Yes, it works with Vortice speed controllers so the airflow can be set to suit the room, and the motor offers more than one speed setting.
How is this model installed?
It is designed for window or wall mounting.
Does it prevent cold draughts when off?
Yes, an automatic shutter closes when the fan stops to keep out cold air and odours.
What is the fan made of and what supply does it need?
The body is UV-resistant ABS plastic and it runs on a single-phase 220-240 V AC supply, drawing up to 35 W.
