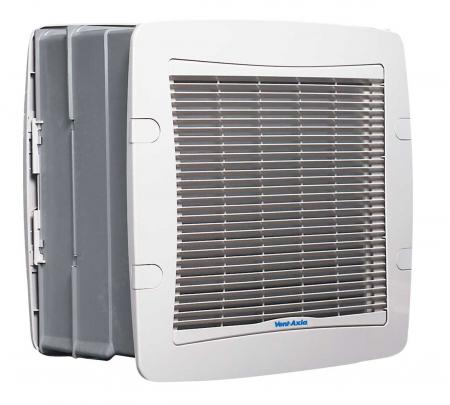

Vent-Axia TX7WL T-Series Range 7" Wall Fan W162510 220-240V
Vent-Axia TX7WL T-Series Range 7" Wall Fan W162510 220-240V
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Vent-Axia |
| Model | TX7WL (W162510) |
| Type | Commercial axial fan |
| Mounting | Wall |
| Fan diameter | 180 mm (7 inch) |
| Maximum airflow | 530 m³/h |
| Speed settings | 3 (low, medium, high) |
| Backdraught shutter | Yes |
| Voltage | 220-240V |
| Warranty | 1 year |
Summary
See more specification See less specification
T-Series also features a unique speed control pack which enables high, medium or low speed to be pre-set to suit room size or required duty. Conduit entry is provided for concealed wiring.
T-Series controllers may be used with this model to obtain a choice of speeds, reversible airflow direction and automatic sensor operation. When used with a T-Series TSC controller, the speed control pack is removed from the T-Series ventilating unit and fitted into the 3-pin socket in the back of the controller. The Vent-Axia Ecotronic controller gives even greater running economy with its minimum speed setting and 'E' mode. When using the Ecotronic controller the speed control pack remains in the fan.
Specifications
| Brand | Vent-Axia |
| Warranty | 1 Year Manufacturers |
| Applicable Areas | Commercial, Kitchen, Laundry Room, Office, Warehouse |
| Extractor Type | Axial Fan |
| Fan Size Diameter | 175mm (7") |
| Mounting | Wall |
| Width | 550 mm |
| Height | 400 mm |
| Depth | 550mm |
| Backdraft Shutter Included? | Yes |
Manuals & Guides
Vent-Axia TX7WL T-Series Range 7" Wall Fan W162510 Brochure
Vent-Axia TX7WL T-Series Range 7" Wall Fan W162510 Installation & User Guide
Product Description
T-Series also features a unique speed control pack which enables high, medium or low speed to be pre-set to suit room size or required duty. Conduit entry is provided for concealed wiring.
T-Series controllers may be used with this model to obtain a choice of speeds, reversible airflow direction and automatic sensor operation. When used with a T-Series TSC controller, the speed control pack is removed from the T-Series ventilating unit and fitted into the 3-pin socket in the back of the controller. The Vent-Axia Ecotronic controller gives even greater running economy with its minimum speed setting and 'E' mode. When using the Ecotronic controller the speed control pack remains in the fan.
Specifications
| Brand | Vent-Axia |
| Warranty | 1 Year Manufacturers |
| Applicable Areas | Commercial, Kitchen, Laundry Room, Office, Warehouse |
| Extractor Type | Axial Fan |
| Fan Size Diameter | 175mm (7") |
| Mounting | Wall |
| Width | 550 mm |
| Height | 400 mm |
| Depth | 550mm |
| Backdraft Shutter Included? | Yes |
Manuals & Guides
Vent-Axia TX7WL T-Series Range 7" Wall Fan W162510 Brochure
Vent-Axia TX7WL T-Series Range 7" Wall Fan W162510 Installation & User Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
How much air can the Vent-Axia TX7WL move?
At its highest speed the TX7WL extracts up to 530 m³/h for larger commercial extract or intake duties.
Is the TX7WL wall or window mounted?
It is wall-mounted and fits through most wall thicknesses using the telescopic liners supplied.
Can the fan speed be controlled?
Yes, a plug-in speed control pack presets low, medium or high speed, and T-Series or Ecotronic controllers add further options.
Does the TX7WL include a shutter?
Yes, it has an integral automatic louvre shutter for both extract and intake at any mounting angle.
Is the TX7WL single or three phase?
It is a single-phase 220-240V AC fan.
Can the airflow direction be reversed?
Yes, when used with a T-Series controller the airflow can be reversed for extract or intake.
