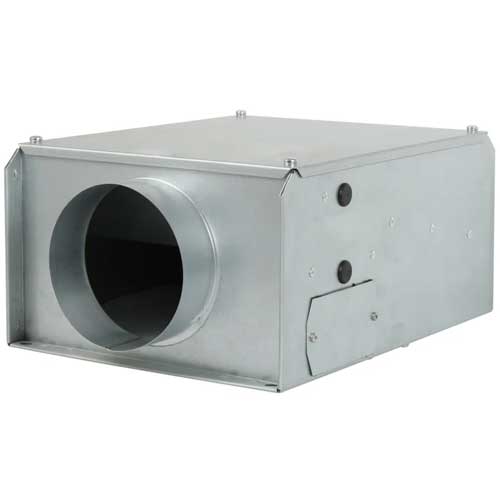

Vent Axia SLP315EC Slimpak EC Box Fan - 315mm

Vent-AxiaPRODUCT CODE: SLP315EC
filler

Price:
£2,560.95

Stock:
In stock

Product Description

Features

  • Ultra slim and compact
  • Energy efficient EC/DC motor
  • Backward curved impeller
  • Acoustically treated 'O' class rated
  • Integral commissioning patentiometer
  • Optional external speed control input
  • Matching ancillaries
  • Eco Flow' computer modelled design



    The New range of Slimpak EC single in-line box fans incorporate an energy efficient EC motor and basic commissioning controls to offer an energy efficient basic fan system.

    Manufactured from Galvanised sheet the Slimpak (SLP EC) fan units are internally treated with an ‘O’ class rated, BS476 part 6 & 7, acoustic foam, which offers the benefits of high sound absorption and good
    thermal insulation properties, in addition to self extinguishing properties and resistance to ignition.


    Design

    All SLP EC units feature an energy efficient, Class 1, EC/DC external rotor motor and backward curved impeller assembly specifically chosen for performance and non-overloading characteristics. The assembly is dynamically balanced to DIN ISO 1940 Grade 6.3, duct size 500mm rated IP54, all other sizes, IP44 according to BS EN 60529. Ball bearings are greased for life. Insulation is Class ‘B’ (from -25°C to +60°C). All models incorporate internal electronic overload protection and soft start function.


    Manuals & Guides
    Vent Axia SLP315EC Slimpak EC Box Fan - 315mm Datasheet
    Vent Axia SLP315EC Slimpak EC Box Fan - 315mm Installation
