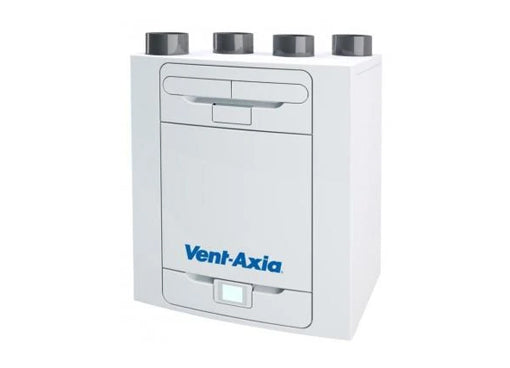

Vent-Axia Sentinel Kinetic Advance SX Heat Recovery Unit 405216
Vent-Axia Sentinel Kinetic Advance SX Heat Recovery Unit 405216
£1,841.99
SKU: 405216

Vent-Axia Sentinel Kinetic Advance SX Heat Recovery Unit 405216

Up to 93% heat recovery
Up to 400 m³/h
Wi-Fi with constant volume control
Out of stock
Not sure what you need? Email the teamhello@efans.co.uk
Free 14 day returns

Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.

Why choose eFans?
  • Bulk pricing available
  • Free help and advice
  • Fast quotes, usually within the hour
  • Huge range with next-day delivery
  • Credit accounts available
Delivery and Warranty

Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95

Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95

Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95

Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95

Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95

Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95

Product Details

Specifications

Product specifications
Brand Vent-Axia
Model Sentinel Kinetic Advance SX 405216
Heat recovery efficiency Up to 93%
Max airflow Up to 400 m³/h
Specific Fan Power 0.38 W/l/s
Controls Touch screen, integral humidistat, Wi-Fi module, constant volume/pressure, 100% summer bypass
Handing Left or right via controller
Dimensions (H x W x D) 760mm x 660mm x 350mm
Weight 32kg
Warranty 2 Year Manufacturer

Summary

The Vent-Axia Sentinel Kinetic Advance SX (405216) is an award winning whole house MVHR unit delivering up to 93% heat recovery with airflow up to 400 m³/h, an integral humidistat, touch screen controls and 100% summer bypass. The SX adds a Wi-Fi module and constant volume, constant pressure control.

The lightweight unit offers left or right handing through the controller, wireless commissioning, app control and pre-heater and post-heater options, with ISO ePM10 and ePM2.5 filter options. Now discontinued, with the Sentinel Econiq S 499883 as the recommended alternative.

See more specification See less specification

This model has been discontinued. The recommended alternative is the Vent-Axia Sentinel Econiq S 499883 MVHR.

The Vent-Axia Sentinel Kinetic Advance SX (405216) is an award winning whole house MVHR unit delivering up to 93% heat recovery with airflow up to 400 m³/h, an integral humidistat, touch screen controls and 100% summer bypass. The SX designation adds a Wi-Fi module and constant volume / constant pressure control for the highest level of comfort and control.

The lightweight unit offers left or right handing through the controller, wireless commissioning, pre-commissioning via USB, app control, and pre-heater and post-heater control options. ISO ePM10 and ePM2.5 filter options and acoustic enclosure or top box options are available. Developed and manufactured in the UK.

  • Up to 93% heat recovery
  • Up to 400 m³/h
  • Wi-Fi with constant volume control

Specifications

Brand Vent-Axia
Model Sentinel Kinetic Advance SX 405216
Heat recovery efficiency Up to 93%
Max airflow Up to 400 m³/h
Specific Fan Power 0.38 W/l/s
Controls Touch screen, integral humidistat, Wi-Fi module, constant volume/pressure, 100% summer bypass
Handing Left or right via controller
Dimensions (H x W x D) 760mm x 660mm x 350mm
Weight 32kg
Warranty 2 Year Manufacturer

Manuals & Guides

Vent-Axia Sentinel Kinetic Advance SX 405216 Datasheet

Product Description

This model has been discontinued. The recommended alternative is the Vent-Axia Sentinel Econiq S 499883 MVHR.

The Vent-Axia Sentinel Kinetic Advance SX (405216) is an award winning whole house MVHR unit delivering up to 93% heat recovery with airflow up to 400 m³/h, an integral humidistat, touch screen controls and 100% summer bypass. The SX designation adds a Wi-Fi module and constant volume / constant pressure control for the highest level of comfort and control.

The lightweight unit offers left or right handing through the controller, wireless commissioning, pre-commissioning via USB, app control, and pre-heater and post-heater control options. ISO ePM10 and ePM2.5 filter options and acoustic enclosure or top box options are available. Developed and manufactured in the UK.

  • Up to 93% heat recovery
  • Up to 400 m³/h
  • Wi-Fi with constant volume control

Specifications

Brand Vent-Axia
Model Sentinel Kinetic Advance SX 405216
Heat recovery efficiency Up to 93%
Max airflow Up to 400 m³/h
Specific Fan Power 0.38 W/l/s
Controls Touch screen, integral humidistat, Wi-Fi module, constant volume/pressure, 100% summer bypass
Handing Left or right via controller
Dimensions (H x W x D) 760mm x 660mm x 350mm
Weight 32kg
Warranty 2 Year Manufacturer

Manuals & Guides

Vent-Axia Sentinel Kinetic Advance SX 405216 Datasheet

Delivery & Returns

Our Price Match Promise

Payment Methods

American Express Apple Pay Diners Club Discover Google Pay Maestro Mastercard PayPal Shop Pay Union Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Is the Sentinel Kinetic Advance SX still available?

This model has been discontinued. The recommended alternative is the Vent-Axia Sentinel Econiq S 499883.

What does the SX add over the standard Advance S?

The SX designation adds a Wi-Fi module plus constant volume and constant pressure control.

What airflow does the Advance SX deliver?

Up to 400 m³/h.

What heat recovery does it achieve?

Up to 93% thermal efficiency when tested to EN 308.

Does it have a summer bypass and humidistat?

Yes, it has 100% summer bypass and an integral humidistat.

What filter options are available?

ISO ePM10 and ePM2.5 filter options, plus acoustic enclosure and top box options for noise reduction.
