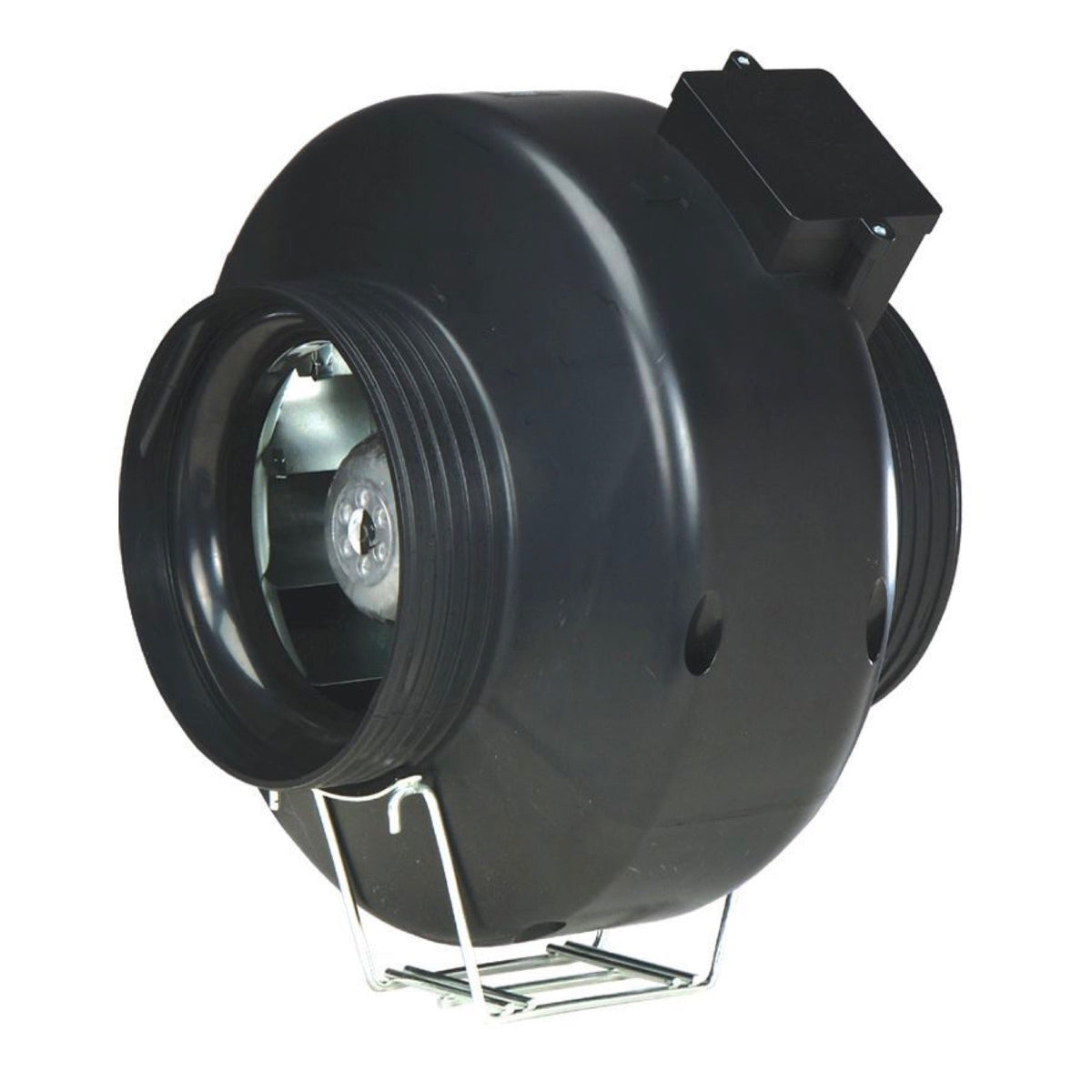

Vent-Axia ACP315HP Powerflow Inline Duct Fan - 315mm/12"
Vent-Axia ACP315HP Powerflow Inline Duct Fan - 315mm/12"
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Vent-Axia |
| Model | ACP315HP Powerflow |
| Type | In-line centrifugal duct fan (plastic casing) |
| Duct connection | 315 mm (50 to 80 mm ribbed spigots) |
| Airflow (max, free air) | 785 m³/h |
| Motor | External-rotor AC, speed-controllable (220 to 240 V, 1~, 50 Hz) |
| Impeller | Backward-curved with outlet guide vanes |
| Casing | Flame-retardant polymeric; IP44 (BS EN 60529); Class B (-30°C to +40°C) |
| Protection | Standard Thermal Overload Protection (S.T.O.P.); greased-for-life bearings |
| Warranty | 2 Year Manufacturer |
Summary
See more specification See less specification
The Vent-Axia ACP315HP Powerflow is a compact yet versatile in-line duct fan, combining the acoustic benefits of a tough plastic casing with the pressure characteristics of a centrifugal fan. The robust fire-retardant polymeric casing and outlet guide vanes ensure optimum airflow management, moving up to 785 m³/h (free air) through 315 mm duct.
- Airflow up to 785 m³/h (free air); 315 mm connection with 50–80 mm ribbed spigots
- External-rotor AC motor; all models speed-controllable (220–240 V, 1~, 50 Hz)
- Backward-curved impeller with outlet guide vanes
- Flame-retardant polymeric casing; IP44 (BS EN 60529); Class B insulation (-30°C to +40°C)
- Standard Thermal Overload Protection (S.T.O.P.); greased-for-life bearings, run at any angle
- Adjustable mounting foot; terminal box rotates to any angle
Suitable for
- Quiet, higher-pressure duct extract or supply
- Commercial and domestic in-line duct systems
Installation
Fits in-line via long ribbed spigots and the adjustable mounting foot; speed-controllable via a compatible controller. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Vent-Axia |
| Model | ACP315HP Powerflow |
| Type | In-line centrifugal duct fan (plastic casing) |
| Duct connection | 315 mm (50–80 mm ribbed spigots) |
| Airflow (max, free air) | 785 m³/h |
| Motor | External-rotor AC, speed-controllable (220–240 V, 1~, 50 Hz) |
| Impeller | Backward-curved with outlet guide vanes |
| Casing | Flame-retardant polymeric; IP44 (BS EN 60529); Class B (-30°C to +40°C) |
| Protection | Standard Thermal Overload Protection (S.T.O.P.); greased-for-life bearings |
| Warranty | 2 Year Manufacturer |
Manuals & Guides
Vent-Axia ACP315HP Powerflow Datasheet
Product Description
The Vent-Axia ACP315HP Powerflow is a compact yet versatile in-line duct fan, combining the acoustic benefits of a tough plastic casing with the pressure characteristics of a centrifugal fan. The robust fire-retardant polymeric casing and outlet guide vanes ensure optimum airflow management, moving up to 785 m³/h (free air) through 315 mm duct.
- Airflow up to 785 m³/h (free air); 315 mm connection with 50–80 mm ribbed spigots
- External-rotor AC motor; all models speed-controllable (220–240 V, 1~, 50 Hz)
- Backward-curved impeller with outlet guide vanes
- Flame-retardant polymeric casing; IP44 (BS EN 60529); Class B insulation (-30°C to +40°C)
- Standard Thermal Overload Protection (S.T.O.P.); greased-for-life bearings, run at any angle
- Adjustable mounting foot; terminal box rotates to any angle
Suitable for
- Quiet, higher-pressure duct extract or supply
- Commercial and domestic in-line duct systems
Installation
Fits in-line via long ribbed spigots and the adjustable mounting foot; speed-controllable via a compatible controller. Should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Vent-Axia |
| Model | ACP315HP Powerflow |
| Type | In-line centrifugal duct fan (plastic casing) |
| Duct connection | 315 mm (50–80 mm ribbed spigots) |
| Airflow (max, free air) | 785 m³/h |
| Motor | External-rotor AC, speed-controllable (220–240 V, 1~, 50 Hz) |
| Impeller | Backward-curved with outlet guide vanes |
| Casing | Flame-retardant polymeric; IP44 (BS EN 60529); Class B (-30°C to +40°C) |
| Protection | Standard Thermal Overload Protection (S.T.O.P.); greased-for-life bearings |
| Warranty | 2 Year Manufacturer |
Manuals & Guides
Vent-Axia ACP315HP Powerflow Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Vent-Axia ACP315HP Powerflow for?
It's a compact plastic-cased in-line centrifugal duct fan for 315 mm ducting, for extract or supply where quiet, higher-pressure airflow is needed.
How much air and what duct size?
Up to 785 m³/h (free air) through 315 mm ducting, with long 50 to 80 mm ribbed spigots.
Can it be speed controlled?
Yes, all Powerflow models are speed-controllable on 220 to 240 V single-phase, via a compatible Vent-Axia controller.
Why a plastic casing?
The tough flame-retardant polymeric casing is quieter than steel and, combined with outlet guide vanes, gives optimum airflow management.
Is it easy to install?
Yes, long ribbed spigots and an adjustable mounting foot let the terminal box rotate to any angle, and bearings are designed to run at any angle.
Is it protected and reliable?
Yes, IP44 to BS EN 60529, Class B insulation, greased-for-life ball bearings and Standard Thermal Overload Protection (S.T.O.P.).
