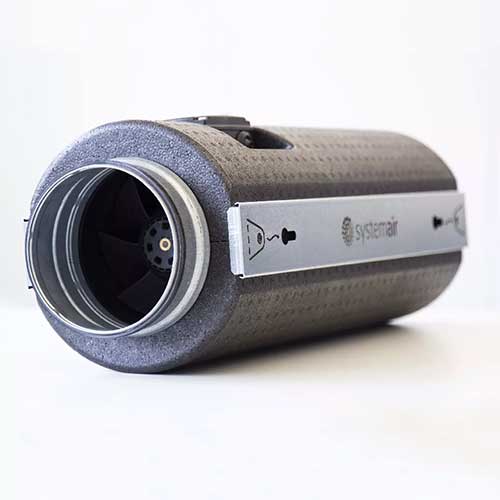

Systemair Prio Silent XP 250EC Circular Duct Fan EC Motor - 250mm
Systemair Prio Silent XP 250EC Circular Duct Fan EC Motor - 250mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Systemair |
| Model | Prio Silent XP 250EC |
| Type | Circular duct fan |
| Fan diameter | 250 mm |
| Maximum airflow | 1787 m³/h (0.4964 m³/s) |
| Motor | Single phase EC, 230V 1~ |
| Power (W) | 132 W |
| Sound level | 40 dB(A) at 1m |
| IP rating | IP44 |
| Weight | 6.07 kg |
Summary
See more specification See less specification
The prio silent XP fans are intended to use for supply or extract air and are designed to be installed in any position. This ensures that the fans can be used in a variety of commercial and domestic applications.
The sound optimised impellers together with high efficient external rotor motors are designed to ensure high-level performance to minimise power consumption and maximised efficiency.
Features
- Unique patented combination of silencer and fan casing
- Option to change air direction in casing
- Sound and energy optimised impellers
- Very low weight
- Easy to clean
- 250mm diameter
Installation
Prio silent XP can be installed in any position by using metal rail with holes. Spigot with 25 mm length is perfectly designed to connect circular duct by using fast clamps preventing vibration to the duct.
Product Description
The prio silent XP fans are intended to use for supply or extract air and are designed to be installed in any position. This ensures that the fans can be used in a variety of commercial and domestic applications.
The sound optimised impellers together with high efficient external rotor motors are designed to ensure high-level performance to minimise power consumption and maximised efficiency.
Features
- Unique patented combination of silencer and fan casing
- Option to change air direction in casing
- Sound and energy optimised impellers
- Very low weight
- Easy to clean
- 250mm diameter
Installation
Prio silent XP can be installed in any position by using metal rail with holes. Spigot with 25 mm length is perfectly designed to connect circular duct by using fast clamps preventing vibration to the duct.
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the Systemair Prio Silent XP 250EC?
The Prio Silent XP 250EC moves up to 1787 m³/h (0.4964 m³/s) at free delivery through its 250 mm ductwork.
Why is the Prio Silent XP 250EC so quiet?
It combines a patented silencer and fan casing with sound-optimised impellers to keep the sound pressure level low at 40 dB(A) at 1m.
Is the Prio Silent XP 250EC energy efficient?
Yes. Its EC motor uses significantly less energy than an equivalent AC motor, particularly at part load, which reduces running costs.
Can the Prio Silent XP 250EC fan speed be controlled?
Yes, the EC motor is fully speed controllable via a 0-10V signal for precise airflow adjustment.
What size duct does the Prio Silent XP 250EC fit?
It has 250 mm circular spigots (25 mm long), so it connects directly to standard 250 mm rigid or flexible ducting.
Where is the Prio Silent XP 250EC typically used?
It suits supply or extract ventilation in noise-sensitive areas such as bedrooms, offices and meeting rooms, and can be installed in any position with reversible air direction.
