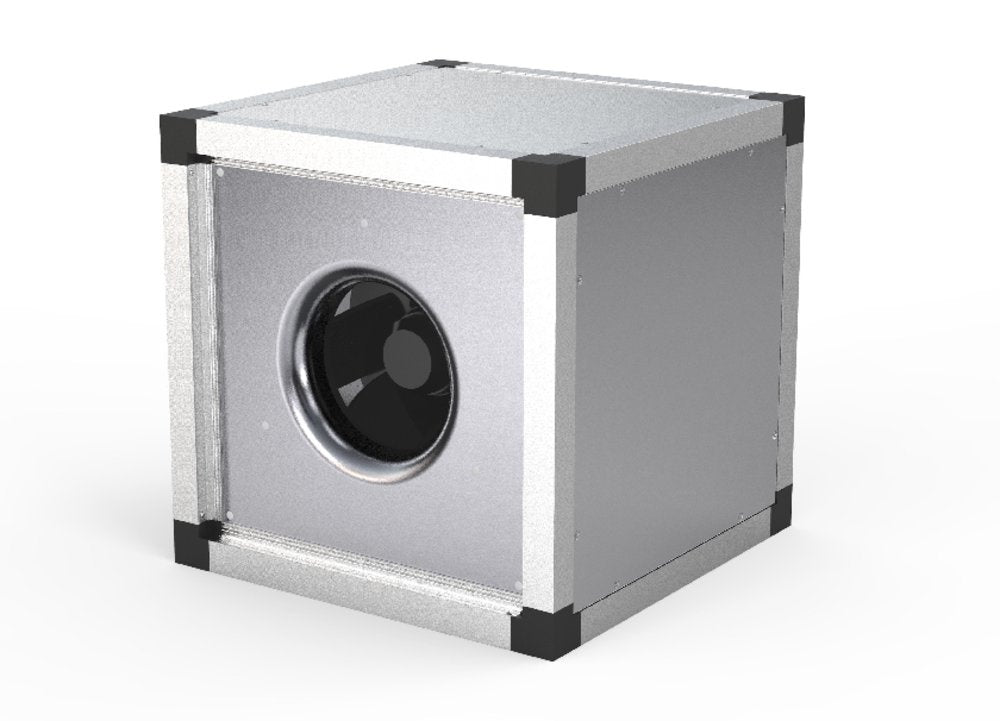

Systemair MUB 630D4 IE3 Multibox Fan - 3 Phase

SystemairPRODUCT CODE: 235398
filler

Price:
£2,314.23

Stock:
In stock

Product Description

The MUB fan are equipped with high efficient IE3 motors. The MUB fans have an impeller with backward curved blades, manufactured from aluminium. Speed control is only possible by using a frequency converter. Motor protection is done by cold conductors (PTC), which have to be connected to an external motor protection device.

The casing consists of an aluminium frame with fiberglass reinforced plastic corners of PA6; highly shock-resistant. The double skin panels are manufactured from galvanized steel with 20 mm mineral wool insulation. To avoid condensation the profile is provided with a separate chamber to fix screws. The Multibox fans are delivered for straight through airflow but can easily be rebuilt due to removable panels.

This allows flexible ventilation solutions. The MUB can also be used as extract- or supply air unit in air handling units. Installation in any mounting position is possible.

  • High efficient motor IE3
  • Speed-controllable via frequency converter
  • Integral cold conductor (PTC)
  • Low sound level
  • Flexible airflow direction due to removable panels
  • Installation in any mounting position
  • Easy to maintain and reliable


Installation

Installation in any mounting position is possible.

Specifications

Brand Systemair
Phase 3 Phase
Warranty 1 Year Manufacturer


Manuals & Guides
Systemair MUB 630D4 IE3 Multibox Fan - 3 Phase Datasheet
