Product Details
Specifications
Product specifications
| Brand | Systemair |
| Model | MUB 100 710EC-Poti |
| Article number | 472962 |
| Type | Multibox insulated box fan |
| Motor | EC with integrated potentiometer |
| Phase | 3 Phase, 400V, 50/60Hz |
| Duct connection | Square |
| Maximum airflow | 30,939 m³/h (8.5942 m³/s) |
| Input power | 8,015 W (8.015 kW) |
| Input current | 11.93 A |
| Impeller speed | 1,486 rpm |
| Max air temperature | 40 °C |
| Enclosure class | IP55 |
| Insulation class | F |
| Weight | 163.2 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

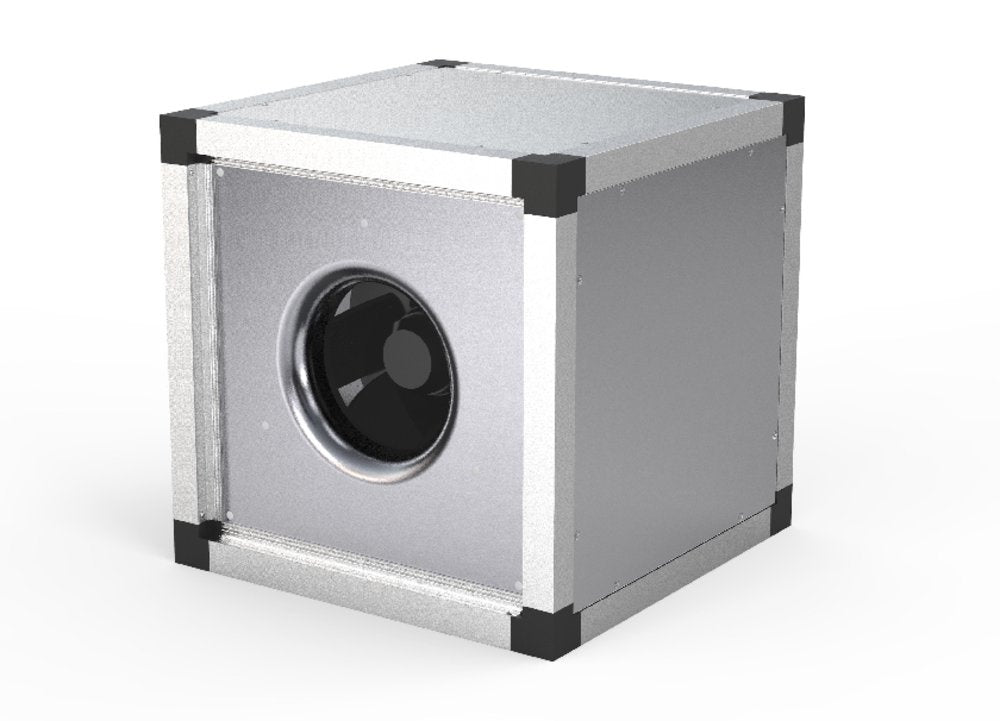

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, and this variant is supplied with an integrated potentiometer for direct manual speed adjustment.
• EC motor with integrated potentiometer speed control
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable
Suitable for
High-volume supply or extract duty in large commercial and industrial ventilation systems.
Installation
Square duct connection. Can be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device.
Specifications
| Brand | Systemair |
| Model | MUB 100 710EC-Poti |
| Article number | 472962 |
| Motor | EC with integrated potentiometer |
| Phase | 3 Phase, 400V, 50/60Hz |
| Duct connection | Square |
| Maximum airflow | 30,939 m³/h (8.5942 m³/s) |
| Input power | 8,015 W (8.015 kW) |
| Input current | 11.93 A |
| Impeller speed | 1,486 rpm |
| Max air temperature | 40 °C |
| Enclosure class | IP55 |
| Insulation class | F |
| Weight | 163.2 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Product Description
Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, and this variant is supplied with an integrated potentiometer for direct manual speed adjustment.
• EC motor with integrated potentiometer speed control
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable
Suitable for
High-volume supply or extract duty in large commercial and industrial ventilation systems.
Installation
Square duct connection. Can be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device.
Specifications
| Brand | Systemair |
| Model | MUB 100 710EC-Poti |
| Article number | 472962 |
| Motor | EC with integrated potentiometer |
| Phase | 3 Phase, 400V, 50/60Hz |
| Duct connection | Square |
| Maximum airflow | 30,939 m³/h (8.5942 m³/s) |
| Input power | 8,015 W (8.015 kW) |
| Input current | 11.93 A |
| Impeller speed | 1,486 rpm |
| Max air temperature | 40 °C |
| Enclosure class | IP55 |
| Insulation class | F |
| Weight | 163.2 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the Systemair MUB 100 710EC-Poti?
It moves up to 30,939 m³/h (8.5942 m³/s) at maximum speed, per Systemair's data for article 472962. It is the largest fan in the standard MUB EC range.
What does Poti mean?
It indicates the fan is supplied with an integrated potentiometer, allowing speed to be adjusted manually at the unit without additional controls.
Is it single or three phase?
Three phase, 400V, 50/60Hz, drawing 8.015 kW and 11.93 A.
What duct connection does it have?
A square duct connection.
What air temperature can it handle?
Up to 40 °C, including when running under speed control.
How much does it weigh?
163.2 kg, so mechanical lifting and properly rated structural support are essential.
