Systemair MUB 042 450EC-K-A Multibox Fan EC Motor - 1 Phase
Systemair MUB 042 450EC-K-A Multibox Fan EC Motor - 1 Phase
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Specifications
Product specifications
| Brand | Systemair |
| Model | MUB 042 450EC-K-A |
| Article number | 448827 |
| Type | Multibox insulated box fan |
| Motor | EC, infinitely variable speed |
| Phase | 1 Phase, 230V, 50/60Hz |
| Maximum airflow | 5,902 m³/h (1.6394 m³/s) |
| Input power | 832 W |
| Input current | 3.64 A |
| Impeller speed | 1,724 rpm |
| Max air temperature | 60 °C |
| Enclosure class | IP54 |
| Insulation class | B |
| Weight | 50.5 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

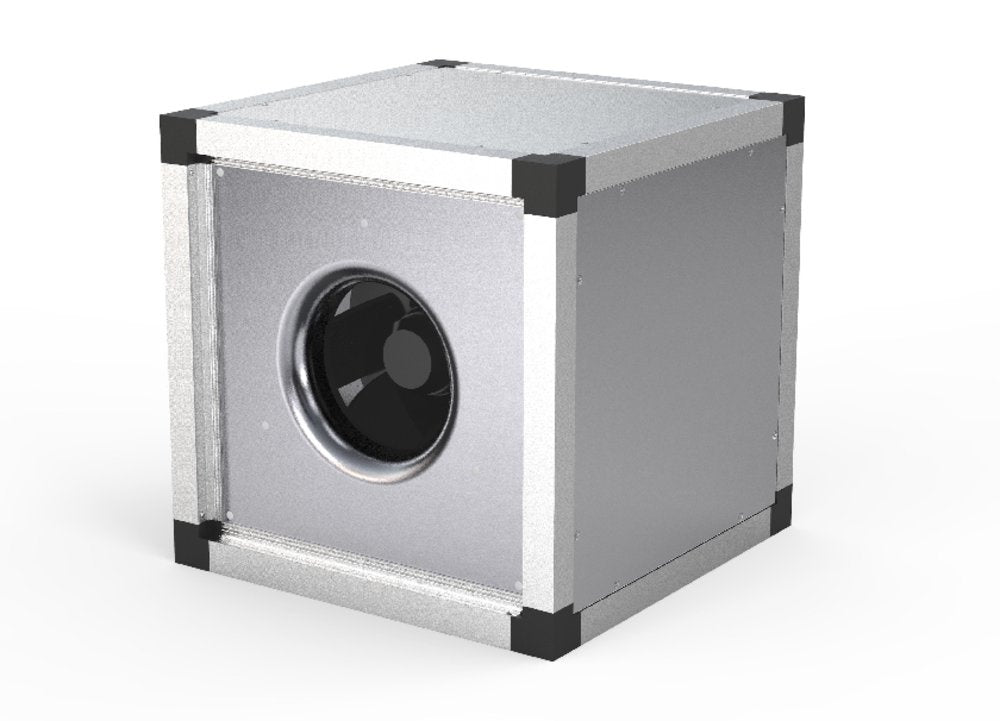

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, without the need for a separate transformer or frequency inverter.
• EC motor with integrated speed control
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable
Suitable for
Supply or extract duty in commercial and light industrial ventilation. Suitable for commercial kitchen extract systems when positioned 3 metres from the canopy.
Installation
Can be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device.
Specifications
| Brand | Systemair |
| Model | MUB 042 450EC-K-A |
| Article number | 448827 |
| Motor | EC |
| Phase | 1 Phase, 230V, 50/60Hz |
| Maximum airflow | 5,902 m³/h (1.6394 m³/s) |
| Input power | 832 W |
| Input current | 3.64 A |
| Impeller speed | 1,724 rpm |
| Max air temperature | 60 °C |
| Enclosure class | IP54 |
| Insulation class | B |
| Weight | 50.5 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Product Description
Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, without the need for a separate transformer or frequency inverter.
• EC motor with integrated speed control
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable
Suitable for
Supply or extract duty in commercial and light industrial ventilation. Suitable for commercial kitchen extract systems when positioned 3 metres from the canopy.
Installation
Can be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device.
Specifications
| Brand | Systemair |
| Model | MUB 042 450EC-K-A |
| Article number | 448827 |
| Motor | EC |
| Phase | 1 Phase, 230V, 50/60Hz |
| Maximum airflow | 5,902 m³/h (1.6394 m³/s) |
| Input power | 832 W |
| Input current | 3.64 A |
| Impeller speed | 1,724 rpm |
| Max air temperature | 60 °C |
| Enclosure class | IP54 |
| Insulation class | B |
| Weight | 50.5 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the Systemair MUB 042 450EC-K-A?
It moves up to 5,902 m³/h (1.6394 m³/s) at maximum speed, per Systemair's data for article 448827.
Does the EC motor need a separate speed controller?
No. The EC motor has infinitely variable speed control built in.
Is it single or three phase?
Single phase, 230V, 50/60Hz, drawing 832 W and 3.64 A.
What air temperature can it handle?
Up to 60 °C, including when running under speed control.
Can it be installed in any position?
Yes, and removable panels let you switch between straight-through and 90° airflow on site.
What is the IP rating?
The motor is rated IP54 with class B insulation.
