Product Details
Specifications
Product specifications
| Brand | Systemair |
| Model | MUB 016 200EC |
| Article number | 276629 |
| Type | Multibox insulated box fan |
| Motor | EC, infinitely variable speed |
| Phase | 1 Phase, 230V, 50/60Hz |
| Maximum airflow | 1,068 m³/h (0.2967 m³/s) |
| Input power | 153 W |
| Input current | 1.22 A |
| Impeller speed | 3,062 rpm |
| Max air temperature | 55 °C |
| Enclosure class | IP54 |
| Insulation class | B |
| Weight | 15 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

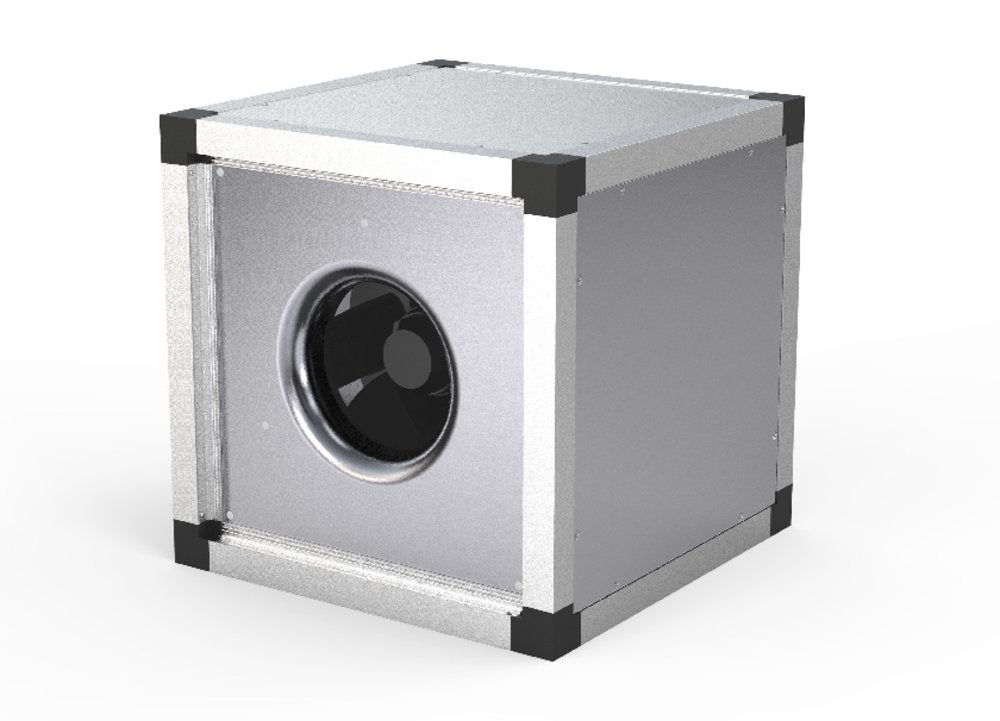

Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, without the need for a separate transformer or frequency inverter.
• EC motor with integrated speed control
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable
Suitable for
Supply or extract duty in commercial and light industrial ventilation. Suitable for commercial kitchen extract systems when positioned 3 metres from the canopy.
Installation
Can be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device.
Specifications
| Brand | Systemair |
| Model | MUB 016 200EC |
| Article number | 276629 |
| Motor | EC |
| Phase | 1 Phase, 230V, 50/60Hz |
| Maximum airflow | 1,068 m³/h (0.2967 m³/s) |
| Input power | 153 W |
| Input current | 1.22 A |
| Impeller speed | 3,062 rpm |
| Max air temperature | 55 °C |
| Enclosure class | IP54 |
| Insulation class | B |
| Weight | 15 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Product Description
Self supporting aluminium frame construction with highly impact resistant PA6 corners. 30 mm glass wool acoustic and thermal insulation. Radial impeller with backward curved blades. The EC motor gives infinitely variable speed control as standard, without the need for a separate transformer or frequency inverter.
• EC motor with integrated speed control
• Modular system
• Integral thermal contacts
• Low sound level
• Flexible airflow direction due to removable panels
• Installation in any mounting position
• Maintenance-free and reliable
Suitable for
Supply or extract duty in commercial and light industrial ventilation. Suitable for commercial kitchen extract systems when positioned 3 metres from the canopy.
Installation
Can be installed in any mounting position. Removable panels allow the airflow direction to be reconfigured on site for straight-through or 90° discharge. Integral thermal contacts are fitted for connection to a motor protection switching device.
Specifications
| Brand | Systemair |
| Model | MUB 016 200EC |
| Article number | 276629 |
| Motor | EC |
| Phase | 1 Phase, 230V, 50/60Hz |
| Maximum airflow | 1,068 m³/h (0.2967 m³/s) |
| Input power | 153 W |
| Input current | 1.22 A |
| Impeller speed | 3,062 rpm |
| Max air temperature | 55 °C |
| Enclosure class | IP54 |
| Insulation class | B |
| Weight | 15 kg |
| ErP | ErP 2018 ready |
| Warranty | 1 Year Manufacturer |
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the maximum airflow of the Systemair MUB 016 200EC?
It moves up to 1,068 m³/h (0.2967 m³/s) at maximum speed, per Systemair's data for article 276629.
Does the EC motor need a separate speed controller?
No. The EC motor has infinitely variable speed control built in, so no transformer or frequency inverter is required.
Is the MUB 016 200EC single or three phase?
It is single phase, 230V, 50/60Hz, drawing 153 W and 1.22 A.
What air temperature can it handle?
Up to 55 °C, including when running under speed control.
Can it be installed in any position?
Yes. It can be mounted in any position, and removable panels let you switch between straight-through and 90° airflow on site.
What is the IP rating?
The motor is rated IP54 with class B insulation.
