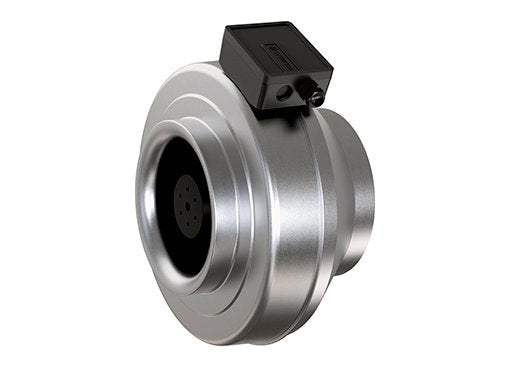

Systemair K200L Centrifugal Duct Fan AC Motor - 200mm/8"
£244.99

Systemair K200L Centrifugal Duct Fan AC Motor - 200mm/8"

SystemairPRODUCT CODE: 19510
filler

Price:
£244.99

Stock:

Product Description

The Systemair K200L is a centrifugal inline duct fan designed for installation in circular ducting, with minimum 25 mm spigot connections. It has backward-curved blades and an external-rotor motor, and its folded galvanised sheet-steel casing is close to airtight — making outdoor and duct-connected wet-room applications possible (corrosion class C3). It delivers up to 974 m³/h through 200 mm duct.

  • Airflow up to 974 m³/h; 200 mm connection (25 mm spigots)
  • Speed-controllable AC, 230 V, 1~, 50 Hz (stepless thyristor or 5-step transformer)
  • Backward-curved external-rotor motor; impedance/thermal protected
  • Near-airtight folded galvanised-steel casing; corrosion class C3; outdoor/wet-room capable
  • Low noise; can be installed in any position; fixing bracket and screws included
  • Maintenance-free and reliable

Suitable for

  • Duct-mounted extract and supply, including outdoor and wet-room applications
  • Commercial and domestic circular duct systems

Installation

Installs in any position using the included fixing bracket. Speed control via thyristor or 5-step transformer. Should be installed on a suitable circuit by a qualified electrician.

Specifications

Brand Systemair
Model K200L
Type Centrifugal inline duct fan
Duct connection 200 mm (25 mm spigots)
Airflow (max) 974 m³/h
Motor External-rotor AC, speed-controllable (230 V, 1~, 50 Hz)
Casing Galvanised folded sheet steel (airtight; outdoor/wet-room; corrosion class C3)
Protection Impedance/thermal protected
Mounting Any position; fixing bracket included
Warranty 1 Year Manufacturer

Manuals & Guides
Systemair K200L Datasheet
