Product Details
Specifications
Product specifications
| Brand | StrutFoot |
| Type | Flat roof support frame |
| Leg assemblies supplied | 4 |
| Sliding arms supplied | 2 |

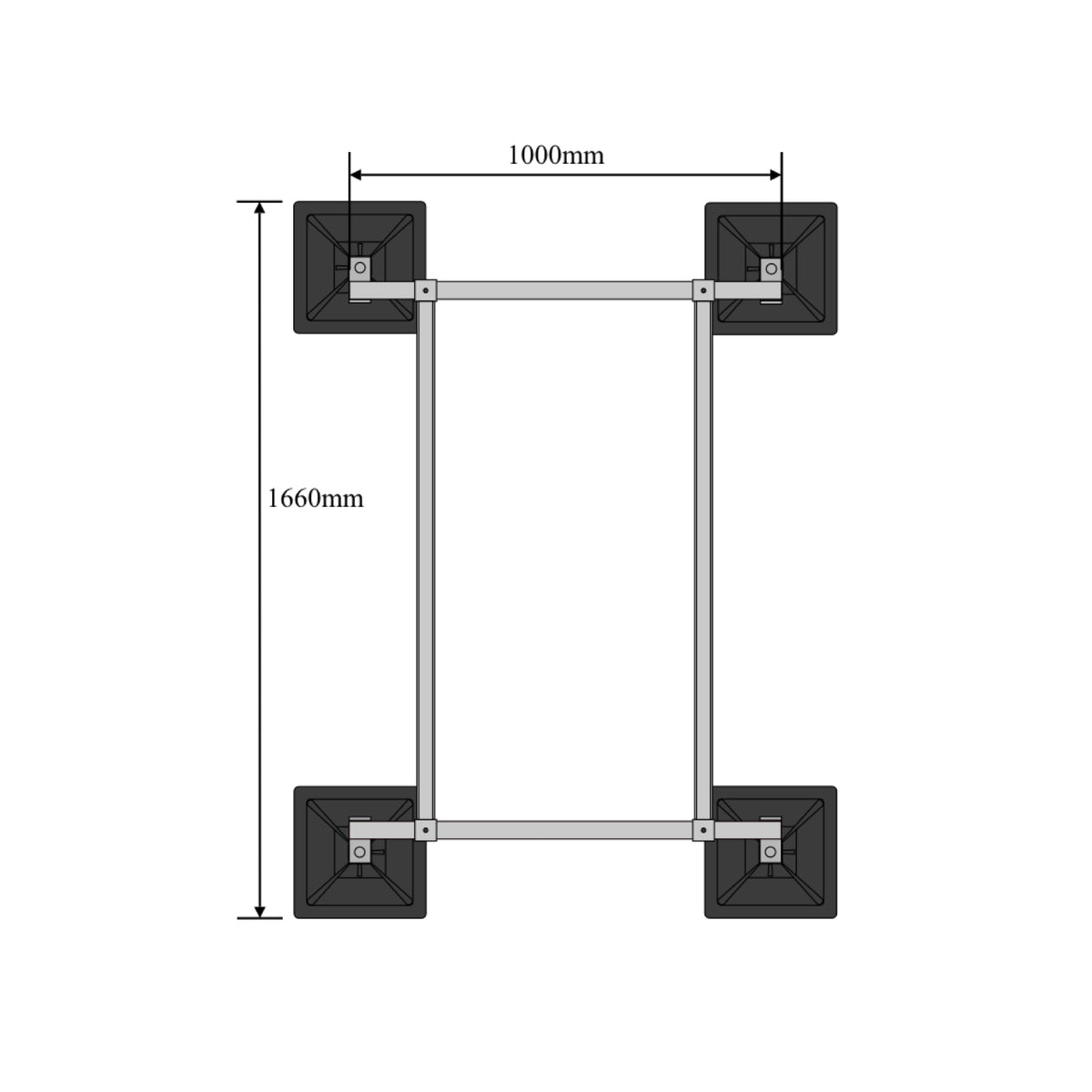

| Side rail length | 1000mm |
| Sliding arm length | 1300mm |
| Overall width with feet | 1450mm to 1670mm |
| Product weight | 32kg |
| Max SWL | 700kg |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

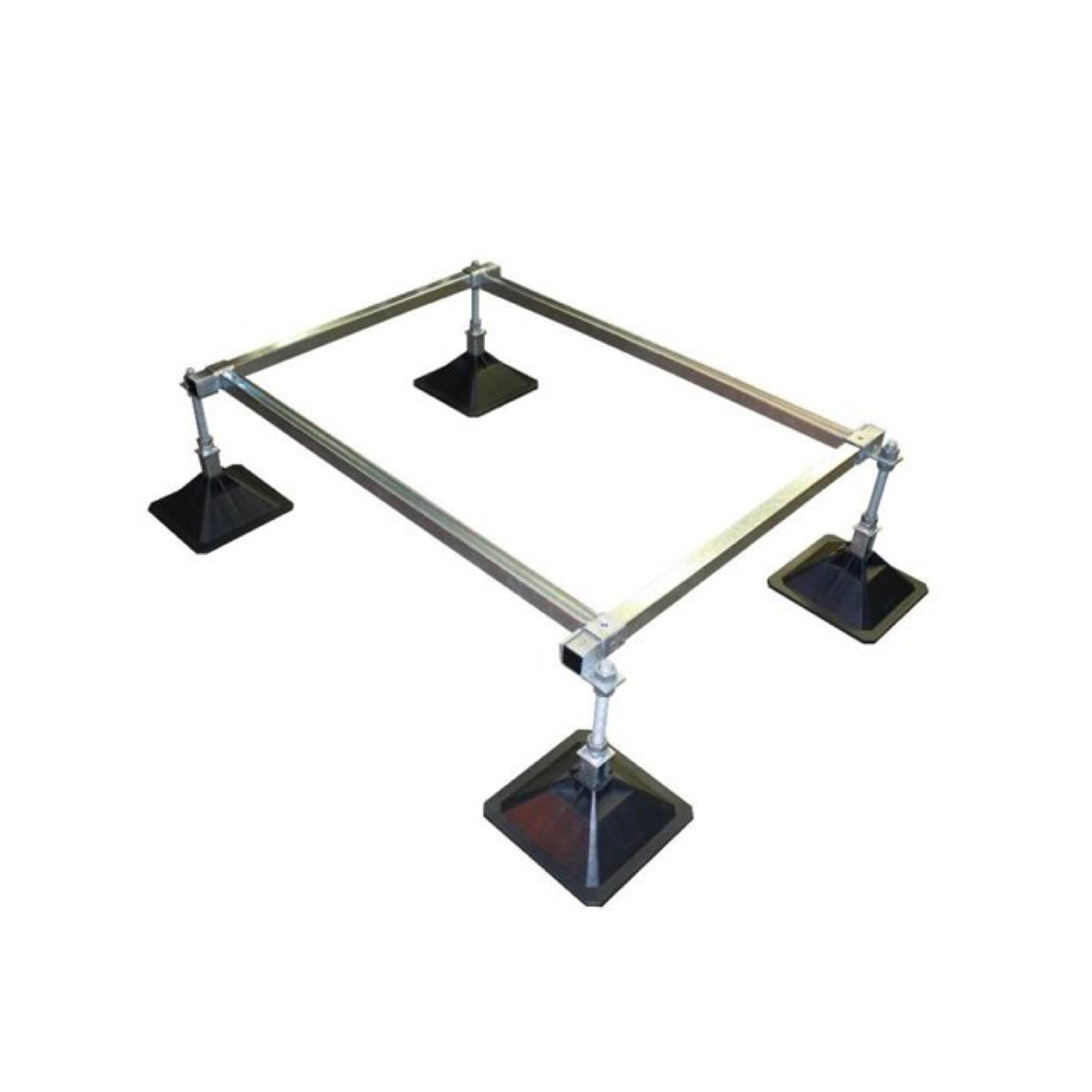

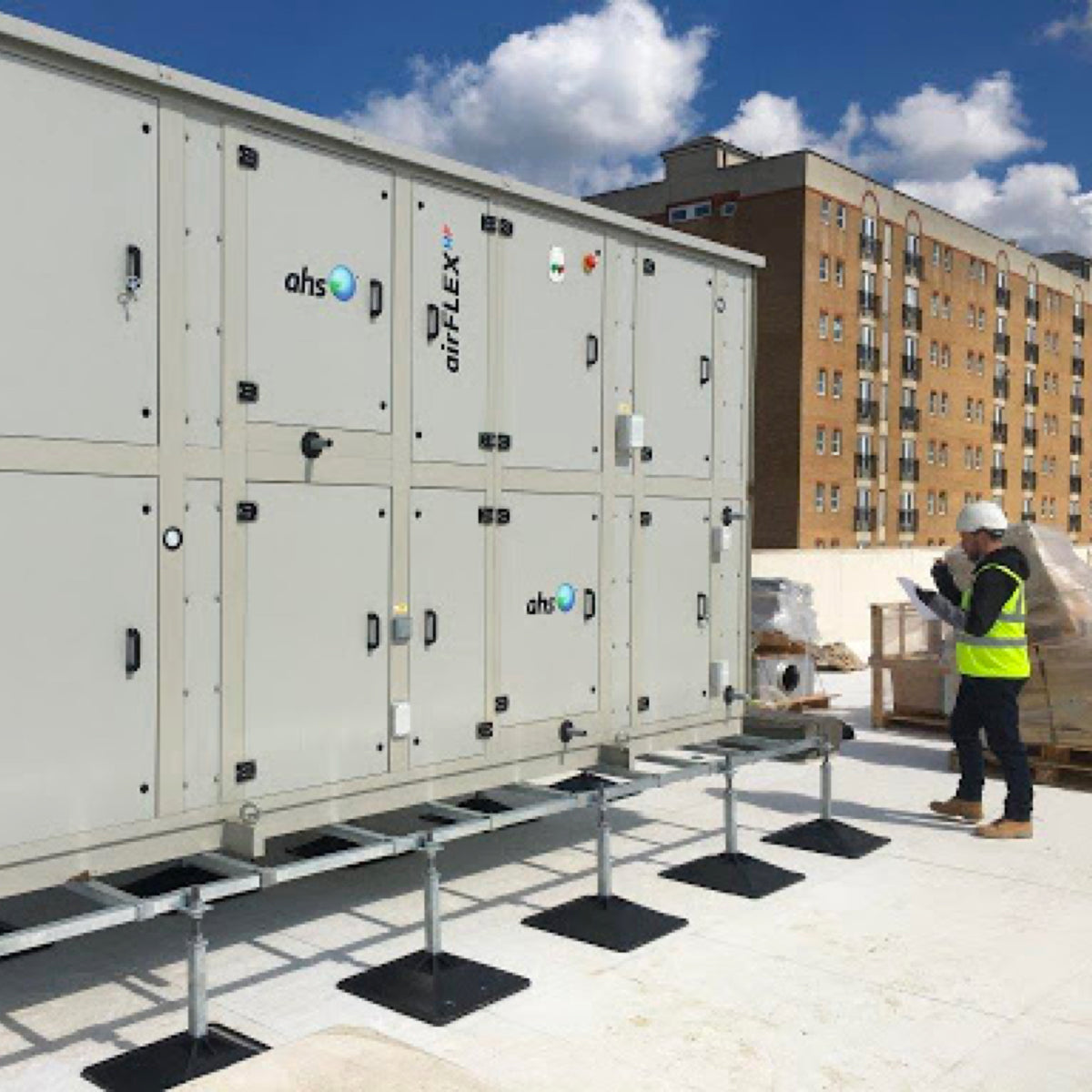

The StrutFoot Support System 2 SF1302 is a Unistrut-based flat roof support frame with a safe working load of 700kg. It provides strength and convenience for mounting mechanical and electrical services, air conditioning and refrigeration on flat roofs.
It installs quickly without drilling or penetrating the waterproof membrane, and is cross-compatible with all Unistrut type brackets. Anti-vibration pads are pre-attached to the feet, and standard or bespoke configurations are available.
- 700kg SWL
- Flat roof support frame
- No roof penetration
Specifications
| Brand | StrutFoot |
| Type | Flat roof support frame |
| Leg assemblies supplied | 4 |
| Sliding arms supplied | 2 |
| Side rail length | 1000mm |
| Sliding arm length | 1300mm |
| Overall width with feet | 1450mm to 1670mm |
| Product weight | 32kg |
| Max SWL | 700kg |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Product Description
The StrutFoot Support System 2 SF1302 is a Unistrut-based flat roof support frame with a safe working load of 700kg. It provides strength and convenience for mounting mechanical and electrical services, air conditioning and refrigeration on flat roofs.
It installs quickly without drilling or penetrating the waterproof membrane, and is cross-compatible with all Unistrut type brackets. Anti-vibration pads are pre-attached to the feet, and standard or bespoke configurations are available.
- 700kg SWL
- Flat roof support frame
- No roof penetration
Specifications
| Brand | StrutFoot |
| Type | Flat roof support frame |
| Leg assemblies supplied | 4 |
| Sliding arms supplied | 2 |
| Side rail length | 1000mm |
| Sliding arm length | 1300mm |
| Overall width with feet | 1450mm to 1670mm |
| Product weight | 32kg |
| Max SWL | 700kg |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the safe working load?
700kg.
How many leg assemblies are supplied?
4, with 2 sliding arms.
How long are the side rails?
1000mm (sliding arms 1300mm).
Does it penetrate the roof?
No, it is a non-drill system that does not pierce the waterproof membrane.
Is it compatible with Unistrut?
Yes, it is cross-compatible with all Unistrut type brackets.
How much does it weigh?
32kg.
