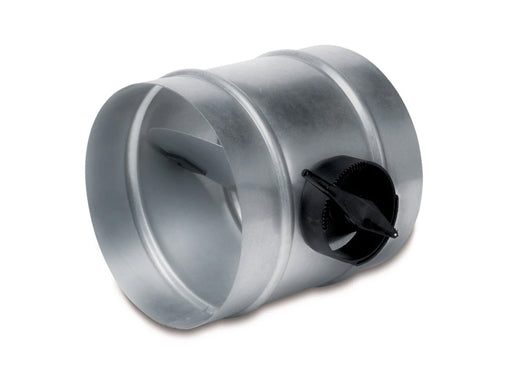

Single Blade Circular Volume Control Damper
£29.01

Single Blade Circular Volume Control Damper

eFans Direct LtdPRODUCT CODE: 52567
filler

Price:
£29.01

Stock:
In stock

Product Description

The Single Blade Circular Volume Control Damper regulates air volume in circular ducts, with a plastic manual adjustment handle that locks the blade in the required position without tools. It is a low-tightness A-casing single-blade damper.

Made from galvanised steel with PPO plastic bushings, it is available from 100mm to 355mm diameter. Maximum air temperature is 80°C and maximum duct pressure is 500 Pa.

  • 100mm to 355mm diameter
  • Single blade volume control damper
  • Manual handle

Suitable for

  • Vertical and horizontal ducted ventilation systems
  • Airflow control and fire protection

Specifications

Type Single blade volume control damper
Damper shape Circular
Casing class A-casing, 1-blade (low tightness)
Adjustment Plastic manual handle
Size range 100mm to 355mm diameter
Max temperature 80°C
Max duct pressure 500 Pa
Material Galvanised steel, PPO bushings
Warranty 1 Year Manufacturer
