Frico air curtains create a comfortable indoor climate in various entrances in an attractive way. They add value to the interior when mounted visibly, although concealed mounting is also possible. Together they offer width and flexibility for entrance doors in various environments.

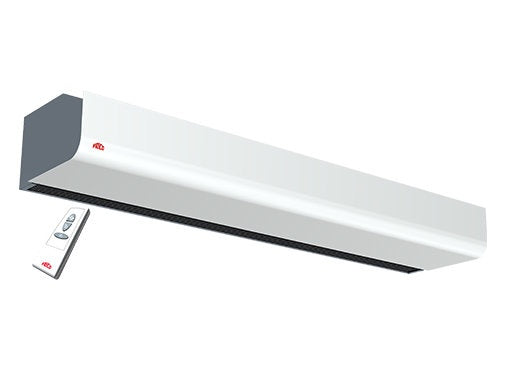

The Frico PA2220CE Air Curtain is a compact air curtain, suitable for most small entrances. The air curtain has an integrated control system and can also be remotely controlled which makes it very easy to use.

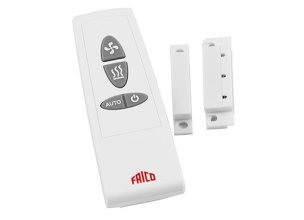

- Remote control and integrated regulation.
- 3 fan steps, heating two steps 16kW, 10kW .
- Units are equipped with 1,5 m cable and plug.
- Wall brackets included.
- The front is easy to remove, which facilitates installation and allows easy maintenance.
- Corrosion proof housing made of hot zinc-plate and powder enamelled steel panels. Plastic ends. Colour front: white, RAL 9016, NCS S 0500-N. Colour grille, rear section, ends and brackets: grey, RAL 7046.
✓ Small entrances
✓ Restaurants, Offices, Retail, Schools
- Recommended installation height 2.2 m
- Horizontal mounting
Dimensions (H x L x D)
209mm x 2,050mm 345mm
|Remote Control included||Yes|
Type of installation
|Wall Brackets Included||Yes|
|1800; 2,000; 2,400 m³/h|
|52; 48; 43 dB(A)|
Ambient working temperature (dry conditions)
-20 to 30 °C
|Input power (P1), motor||200||W|
|Current heating||23.1; 20||A|
|Input power, heater||16; 10||kW|
|Temperature rise, maximum heat output, highest airflow||20||°C|
|Temperature rise, maximum heat output, lowest airflow||27||°C|
Manuals & Guides
Frico PA2220CE16 Air curtain Data sheet
