Frico PA2210CE08 Air Curtain With Remote & Integrated Control (Electric)

FricoPRODUCT CODE: 19422
filler

Price:
£907.25

Stock:
In stock

Product Description

Frico air curtains create a comfortable indoor climate in various entrances in an attractive way. They add value to the interior when mounted visibly, although concealed mounting is also possible. Together they offer width and flexibility for entrance doors in various environments.

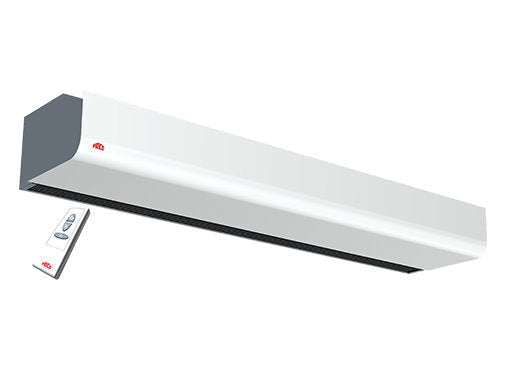

The Frico PA2210CE Air Curtain is a compact air curtain, suitable for most small entrances. The air curtain has an integrated control system and can also be remotely controlled which makes it very easy to use.

Features

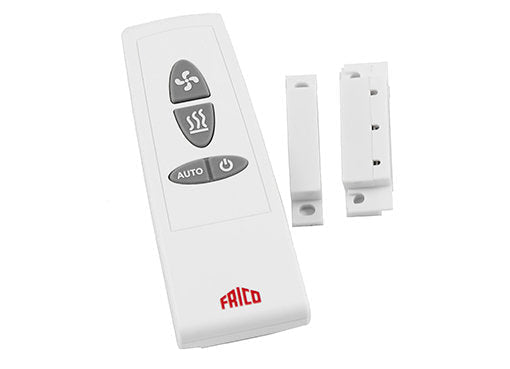

  • Remote control and integrated regulation.
  • 3 fan steps, heating two steps 8kW, 5kW .
  • Units are equipped with 1,5 m cable and plug.
  • Wall brackets included.
  • The front is easy to remove, which facilitates installation and allows easy maintenance.
  • Corrosion proof housing made of hot zinc-plate and powder enamelled steel panels. Plastic ends. Colour front: white, RAL 9016, NCS S 0500-N. Colour grille, rear section, ends and brackets: grey, RAL 7046.


Suitable for
✓ Small entrances
✓ Restaurants, Offices, Retail, Schools

Installation

  • Recommended installation height 2.2 m
  • Horizontal mounting


Specifications

Brand Frico

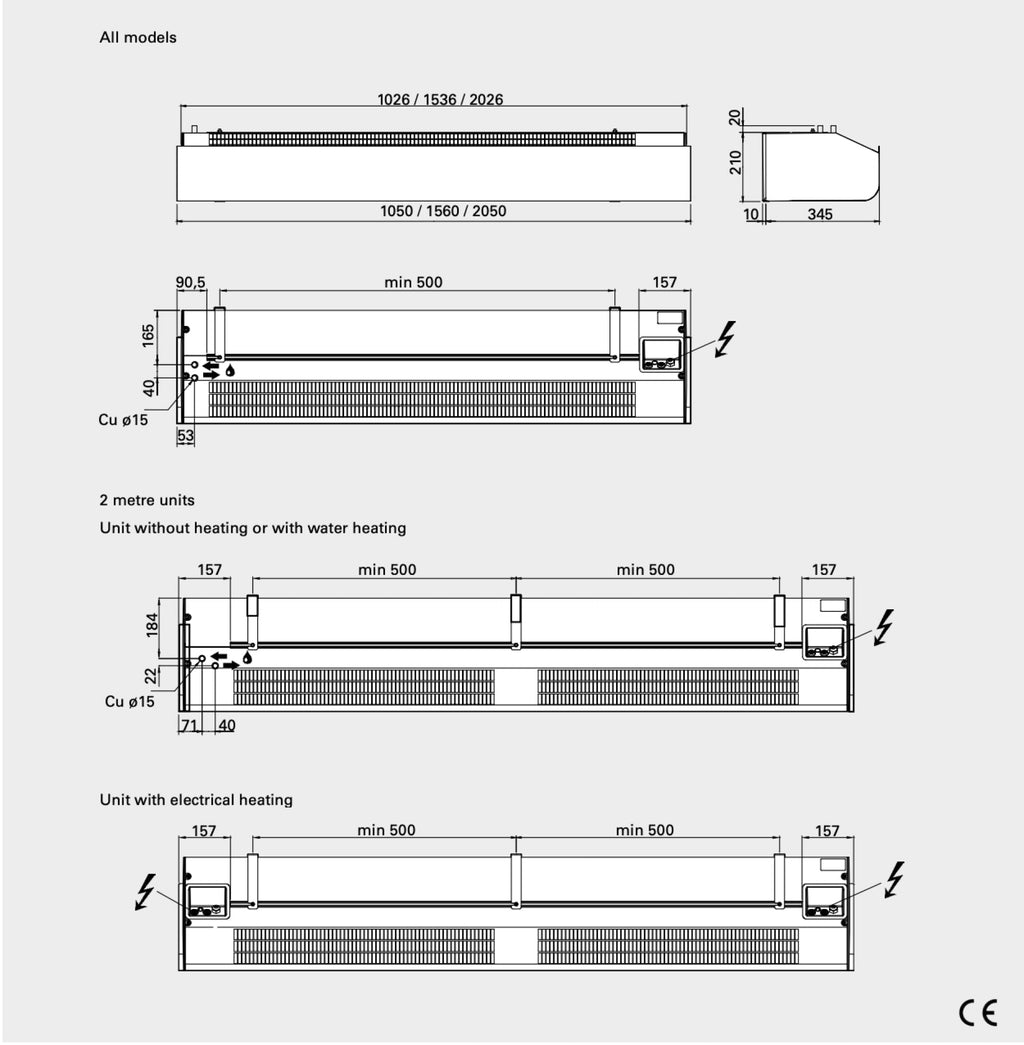

Dimensions (H x L x D)
209mm x 1,050mm 345mm
Weight 19kg
Remote Control included Yes
Type of installation
Horizontal
Wall Brackets Included Yes
Enclosure class
IP20
Air flow
900; 1,000; 1,200 m³/h
Sound level
51; 47; 42 dB(A)
Ambient working temperature (dry conditions)
-20 to 30 °C





Motor/control supply
Control/motor supply 230 V
Control/motor current 0.45 A
Input power (P1), motor 100 W
nan 1,360 r.p.m.
Electric heat
Current heating 11.5; 7.2 A
Voltage heating 230 V
Input power, heater 8; 5 kW
Phase(s) 3~
Temperature rise, maximum heat output, highest airflow 20 °C
Temperature rise, maximum heat output, lowest airflow 27 °C


Manuals & Guides
Frico PA2210CE08 Air curtain Data sheet
