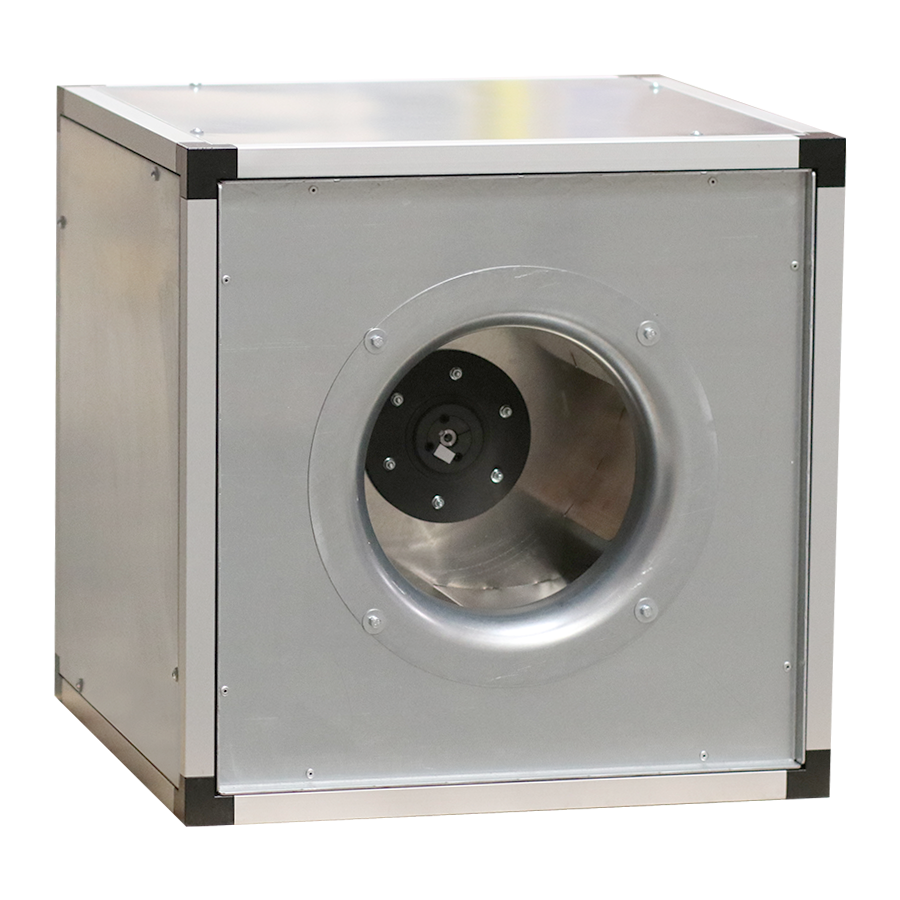

Elta SQU67/450-EC-3 Qube Centrifugal Box Fan Three Phase EC - 450mm
Elta SQU67/450-EC-3 Qube Centrifugal Box Fan Three Phase EC - 450mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£6.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | Qube SQU67/450-EC-3 |
| Type | Centrifugal box fan |
| Nominal size | 450 mm |
| Motor | Three Phase EC (fully variable speed) |
| Impeller | Backward-curved centrifugal impeller |
| Max airflow | Up to 4.972 m³/s (range) |
| Ingress protection | IP55 |
| Max air temperature | +40°C |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
The Elta Qube SQU67/450-EC-3 is a centrifugal box fan for 450 mm in-line duct and plant ventilation, built around a backward-curved centrifugal impeller for high efficiency and low noise. The acoustically-lined box casing keeps noise down, making it a dependable workhorse for kitchen extract, commercial and industrial ventilation.
- 450 mm centrifugal box fan for in-line duct and plant ventilation
- Three Phase EC motor with fully variable speed control
- Backward-curved centrifugal impeller
- Airflow up to 4.972 m³/s across the range
- IP55; rated for air temperatures up to +40°C
- Powder-coated mild-steel casing (RAL 7045)
Suitable for
- Commercial and industrial supply or extract ventilation
- General building services, plant, kitchen and process ventilation
Installation
Mounted in-line in the ductwork on suitable supports and wired by a qualified electrician. AC models suit stepped speed control; EC models give fully variable speed via a 0-10V signal or potentiometer.
Specifications
| Brand | Elta |
| Model | Qube SQU67/450-EC-3 |
| Type | Centrifugal box fan |
| Nominal size | 450 mm |
| Motor | Three Phase EC (fully variable speed) |
| Impeller | Backward-curved centrifugal impeller |
| Max airflow | Up to 4.972 m³/s (range) |
| Ingress protection | IP55 |
| Max air temperature | +40°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Elta Qube SQU Datasheet
Elta Qube SQU Installation Guide
Product Description
The Elta Qube SQU67/450-EC-3 is a centrifugal box fan for 450 mm in-line duct and plant ventilation, built around a backward-curved centrifugal impeller for high efficiency and low noise. The acoustically-lined box casing keeps noise down, making it a dependable workhorse for kitchen extract, commercial and industrial ventilation.
- 450 mm centrifugal box fan for in-line duct and plant ventilation
- Three Phase EC motor with fully variable speed control
- Backward-curved centrifugal impeller
- Airflow up to 4.972 m³/s across the range
- IP55; rated for air temperatures up to +40°C
- Powder-coated mild-steel casing (RAL 7045)
Suitable for
- Commercial and industrial supply or extract ventilation
- General building services, plant, kitchen and process ventilation
Installation
Mounted in-line in the ductwork on suitable supports and wired by a qualified electrician. AC models suit stepped speed control; EC models give fully variable speed via a 0-10V signal or potentiometer.
Specifications
| Brand | Elta |
| Model | Qube SQU67/450-EC-3 |
| Type | Centrifugal box fan |
| Nominal size | 450 mm |
| Motor | Three Phase EC (fully variable speed) |
| Impeller | Backward-curved centrifugal impeller |
| Max airflow | Up to 4.972 m³/s (range) |
| Ingress protection | IP55 |
| Max air temperature | +40°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Elta Qube SQU Datasheet
Elta Qube SQU Installation Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Elta Qube SQU67/450-EC-3 for?
It is a centrifugal box fan for 450 mm in-line duct and plant ventilation, used for commercial and industrial supply or extract ventilation.
What size is it?
It is sized for 450 mm in-line duct and plant ventilation.
What impeller does it use?
A backward-curved centrifugal impeller, for high efficiency and low noise.
What supply does it need?
A three phase ec supply; it should be wired by a qualified electrician.
What is the ingress protection?
IP55, rated for air up to +40°C.
Can I vary the speed?
Yes, the EC motor gives fully variable speed control via a 0-10V signal or potentiometer.
