Product Details
Downloads
Specifications
Product specifications
| Model | SSQU4/6-3HT |
| Type | High temperature centrifugal box fan, motor out of airstream |
| Spigot diameter | 710mm inlet, 345 x 940mm outlet |
| Max airflow | 12535 m³/h |
| Static pressure | 500 Pa |
| Motor | Three phase AC TEFC, 6 pole, 950 rpm, 230V delta or 400V star |
| Power | 1.500 kW (3.90 A peak at 400V) |
| Noise | 58 dB(A) inlet, 59 dB(A) outlet at 3m |
| IP rating | IP55 motor |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

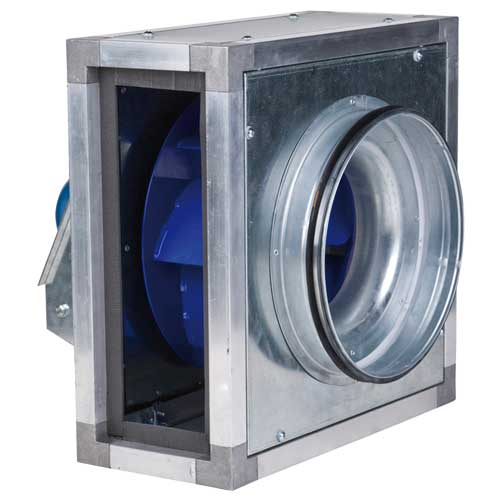

The Elta Slim Qube SSQU4/6-3HT is a high temperature centrifugal box fan with a 710mm circular inlet spigot and a 345 x 940mm outlet, rated by Elta for operating temperatures up to +120°C in the duct. It moves up to 12535 m³/h at free air and 6595 m³/h at 500 Pa, the highest pressure in Elta's performance table for this size.

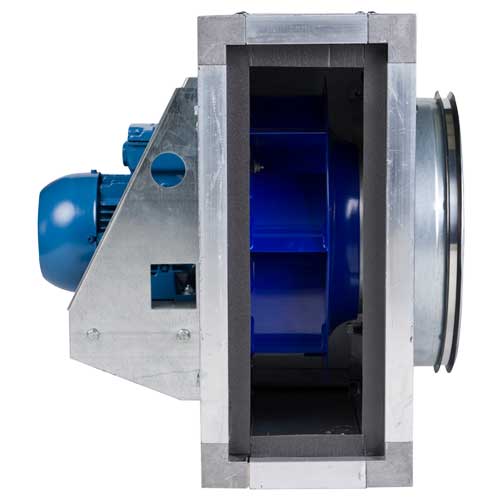

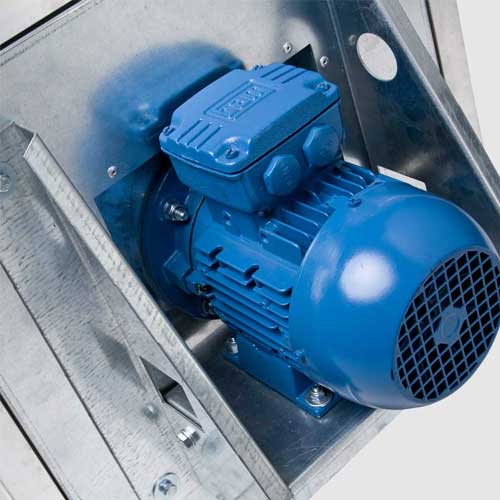

The 6 pole three phase IP55 TEFC motor (950 rpm, wound for 230V delta or 400V star) sits out of the air stream and drives a free running backward curved impeller. The casing is a self supporting extruded aluminium frame with 25mm double skinned panels filled with non flammable mineral wool, the outlet position can be changed on site, and Elta give a 12 month warranty.
- 3 Phase
- AC Motor
- Up to 12535 m³/h
- Speed Controllable
What it is best used for
Large kitchen and factory extract on a 710mm duct where noise matters, for example near a school, college or restaurant dining area. The 6 pole motor runs at 950 rpm, giving 12535 m³/h free air and 6595 m³/h at 500 Pa with lower noise than the 4 pole SSQU4.
It is not a smoke extract fan: the +120°C figure is a continuous in-duct running rating and the datasheet gives no smoke or fire temperature/time rating. It also needs an Eltadrive variable speed drive and a three phase motor connection. For air below 50°C a standard Elta Qube SQU box fan will do the job, and on a rooftop the Elta Clearflow CFHT roof fan avoids the need for an external roof cover.
Why choose this over alternatives
A standard temperature box fan such as the Elta Qube SQU is rated for an airstream up to +50°C. The Slim Qube keeps its motor out of the air stream, so grease, fumes and heat up to +120°C do not reach the windings, and the acoustically insulated double skinned panels keep the noise down inside the building. The motor and impeller lift out together for cleaning.
Compared with the Elta Qube SQUHT high temperature box fans, the Slim Qube has a round 710mm inlet spigot that connects straight to circular ductwork. The Elta Slim Qube SSQU4/4-3HT is the 4 pole version on the same 710mm spigot, giving 13687 m³/h free air and pressure up to 1000 Pa, at 3.000 kW instead of 1.500 kW.
Installation notes
- Fix the fan securely, support it properly and leave access for maintenance. Set the movable panels to put the outlet where you need it before connecting the duct.
- An Eltadrive variable speed drive must be installed. On a single phase supply use 149-ODE3-22220-1KB4Y (IP66) or 149-ODE3-22220-1KB12 (IP20); on a three phase supply use 149-ODE3-24220-3KA4Y (IP66) or 149-ODE3-24220-3KA42 (IP20).
- Wire to Elta diagram 152-600. The motor is star connected for 400V as standard; Elta's diagram shows it reconnected to delta to run from a single phase to three phase drive. Fit a means of isolation and a starter or drive with overload protection, as fuses only give short circuit protection.
- At first start check the impeller direction: the air still moves the right way if the impeller runs backwards, but airflow drops and current rises. The fan weighs 147 kg.
- For outdoor mounting fit the external roof cover 039-SSQU-ER-D. High temperature flexible connectors 063-0710-PU250 (each) isolate vibration from the duct.
You'll also need
- Eltadrive variable speed drive for single phase sites: 149-ODE3-22220-1KB4Y (IP66) or 149-ODE3-22220-1KB12 (IP20). Available to order, ask us.
- Eltadrive variable speed drive for three phase sites: 149-ODE3-24220-3KA4Y (IP66) or 149-ODE3-24220-3KA42 (IP20). Available to order, ask us.
- High temperature flexible connector 063-0710-PU250 and, for outdoor mounting, external roof cover 039-SSQU-ER-D. Available to order, ask us.
- Flanged silencers 068-0710-1DENP (1D) or 068-0710-2DENP (2D), horizontal weather hood 064-SSQU-WH-G, vertical weather hood 064-SSQU-WHV-G, transition piece 260-SSQU-TPO-G (optional). Available to order, ask us.
Browse more high temperature fans, commercial box fans or commercial kitchen extractor fans, or call us for help choosing the right fan.
Specifications
| Model | SSQU4/6-3HT |
| Type | High temperature centrifugal box fan, motor out of airstream |
| Spigot diameter | 710mm inlet, 345 x 940mm outlet |
| Max airflow | 12535 m³/h |
| Static pressure | 500 Pa |
| Motor | Three phase AC TEFC, 6 pole, 950 rpm, 230V delta or 400V star |
| Power | 1.500 kW (3.90 A peak at 400V) |
| Noise | 58 dB(A) inlet, 59 dB(A) outlet at 3m |
| IP rating | IP55 motor |
| Warranty | 1 Year Manufacturer |
| Max air temperature | +120°C in duct, operating (not smoke rated) |
| Airflow at 100 Pa | 11830 m³/h |
| Airflow at 200 Pa | 10894 m³/h |
| Airflow at 500 Pa | 6595 m³/h |
| Full load current | 7.60 A FLC at 230V 1ph input, 2.8 A at 400V 3ph input (before the drive) |
| Speed control | Eltadrive variable speed drive, must be installed |
| Casing | Extruded aluminium frame, 25mm double skinned pre-galvanised panels, mineral wool filled |
| Overall efficiency | 62.4% |
| Wiring diagram | Elta 152-600 |
| Weight | 147 kg |
Manuals & Guides
Product Description
The Elta Slim Qube SSQU4/6-3HT is a high temperature centrifugal box fan with a 710mm circular inlet spigot and a 345 x 940mm outlet, rated by Elta for operating temperatures up to +120°C in the duct. It moves up to 12535 m³/h at free air and 6595 m³/h at 500 Pa, the highest pressure in Elta's performance table for this size.
The 6 pole three phase IP55 TEFC motor (950 rpm, wound for 230V delta or 400V star) sits out of the air stream and drives a free running backward curved impeller. The casing is a self supporting extruded aluminium frame with 25mm double skinned panels filled with non flammable mineral wool, the outlet position can be changed on site, and Elta give a 12 month warranty.
- 3 Phase
- AC Motor
- Up to 12535 m³/h
- Speed Controllable
What it is best used for
Large kitchen and factory extract on a 710mm duct where noise matters, for example near a school, college or restaurant dining area. The 6 pole motor runs at 950 rpm, giving 12535 m³/h free air and 6595 m³/h at 500 Pa with lower noise than the 4 pole SSQU4.
It is not a smoke extract fan: the +120°C figure is a continuous in-duct running rating and the datasheet gives no smoke or fire temperature/time rating. It also needs an Eltadrive variable speed drive and a three phase motor connection. For air below 50°C a standard Elta Qube SQU box fan will do the job, and on a rooftop the Elta Clearflow CFHT roof fan avoids the need for an external roof cover.
Why choose this over alternatives
A standard temperature box fan such as the Elta Qube SQU is rated for an airstream up to +50°C. The Slim Qube keeps its motor out of the air stream, so grease, fumes and heat up to +120°C do not reach the windings, and the acoustically insulated double skinned panels keep the noise down inside the building. The motor and impeller lift out together for cleaning.
Compared with the Elta Qube SQUHT high temperature box fans, the Slim Qube has a round 710mm inlet spigot that connects straight to circular ductwork. The Elta Slim Qube SSQU4/4-3HT is the 4 pole version on the same 710mm spigot, giving 13687 m³/h free air and pressure up to 1000 Pa, at 3.000 kW instead of 1.500 kW.
Installation notes
- Fix the fan securely, support it properly and leave access for maintenance. Set the movable panels to put the outlet where you need it before connecting the duct.
- An Eltadrive variable speed drive must be installed. On a single phase supply use 149-ODE3-22220-1KB4Y (IP66) or 149-ODE3-22220-1KB12 (IP20); on a three phase supply use 149-ODE3-24220-3KA4Y (IP66) or 149-ODE3-24220-3KA42 (IP20).
- Wire to Elta diagram 152-600. The motor is star connected for 400V as standard; Elta's diagram shows it reconnected to delta to run from a single phase to three phase drive. Fit a means of isolation and a starter or drive with overload protection, as fuses only give short circuit protection.
- At first start check the impeller direction: the air still moves the right way if the impeller runs backwards, but airflow drops and current rises. The fan weighs 147 kg.
- For outdoor mounting fit the external roof cover 039-SSQU-ER-D. High temperature flexible connectors 063-0710-PU250 (each) isolate vibration from the duct.
You'll also need
- Eltadrive variable speed drive for single phase sites: 149-ODE3-22220-1KB4Y (IP66) or 149-ODE3-22220-1KB12 (IP20). Available to order, ask us.
- Eltadrive variable speed drive for three phase sites: 149-ODE3-24220-3KA4Y (IP66) or 149-ODE3-24220-3KA42 (IP20). Available to order, ask us.
- High temperature flexible connector 063-0710-PU250 and, for outdoor mounting, external roof cover 039-SSQU-ER-D. Available to order, ask us.
- Flanged silencers 068-0710-1DENP (1D) or 068-0710-2DENP (2D), horizontal weather hood 064-SSQU-WH-G, vertical weather hood 064-SSQU-WHV-G, transition piece 260-SSQU-TPO-G (optional). Available to order, ask us.
Browse more high temperature fans, commercial box fans or commercial kitchen extractor fans, or call us for help choosing the right fan.
Specifications
| Model | SSQU4/6-3HT |
| Type | High temperature centrifugal box fan, motor out of airstream |
| Spigot diameter | 710mm inlet, 345 x 940mm outlet |
| Max airflow | 12535 m³/h |
| Static pressure | 500 Pa |
| Motor | Three phase AC TEFC, 6 pole, 950 rpm, 230V delta or 400V star |
| Power | 1.500 kW (3.90 A peak at 400V) |
| Noise | 58 dB(A) inlet, 59 dB(A) outlet at 3m |
| IP rating | IP55 motor |
| Warranty | 1 Year Manufacturer |
| Max air temperature | +120°C in duct, operating (not smoke rated) |
| Airflow at 100 Pa | 11830 m³/h |
| Airflow at 200 Pa | 10894 m³/h |
| Airflow at 500 Pa | 6595 m³/h |
| Full load current | 7.60 A FLC at 230V 1ph input, 2.8 A at 400V 3ph input (before the drive) |
| Speed control | Eltadrive variable speed drive, must be installed |
| Casing | Extruded aluminium frame, 25mm double skinned pre-galvanised panels, mineral wool filled |
| Overall efficiency | 62.4% |
| Wiring diagram | Elta 152-600 |
| Weight | 147 kg |
Manuals & Guides
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What temperature can the Elta Slim Qube SSQU4/6-3HT handle?
Elta rate the SSQUHT range for operating temperatures up to +120°C in the duct, with the motor mounted out of the air stream. The datasheet gives no smoke extract or fire rating, so it is for hot process and kitchen air, not for smoke control systems.
What size duct does it connect to?
The inlet is a 710mm circular spigot and the outlet is 345 x 940mm. Elta list a matching transition piece, 260-SSQU-TPO-G, and weather hoods if the outlet terminates outside.
How much air does the SSQU4/6-3HT move?
Up to 12535 m³/h (3.482 m³/s) at free air, 10894 m³/h at 200 Pa and 6595 m³/h at 500 Pa.
Which speed controller do I need?
An Eltadrive variable speed drive must be installed with this fan. Elta list 149-ODE3-22220-1KB4Y or 149-ODE3-22220-1KB12 for a single phase supply and 149-ODE3-24220-3KA4Y or 149-ODE3-24220-3KA42 for a three phase supply.
Can the outlet position be changed?
Yes. The panels are movable, so the discharge position can be altered on site to suit the duct route.
Can it be mounted outside?
Yes, with Elta's external roof cover 039-SSQU-ER-D fitted over the motor. Weather hoods 064-SSQU-WH-G (horizontal) or 064-SSQU-WHV-G (vertical) finish the outlet.
