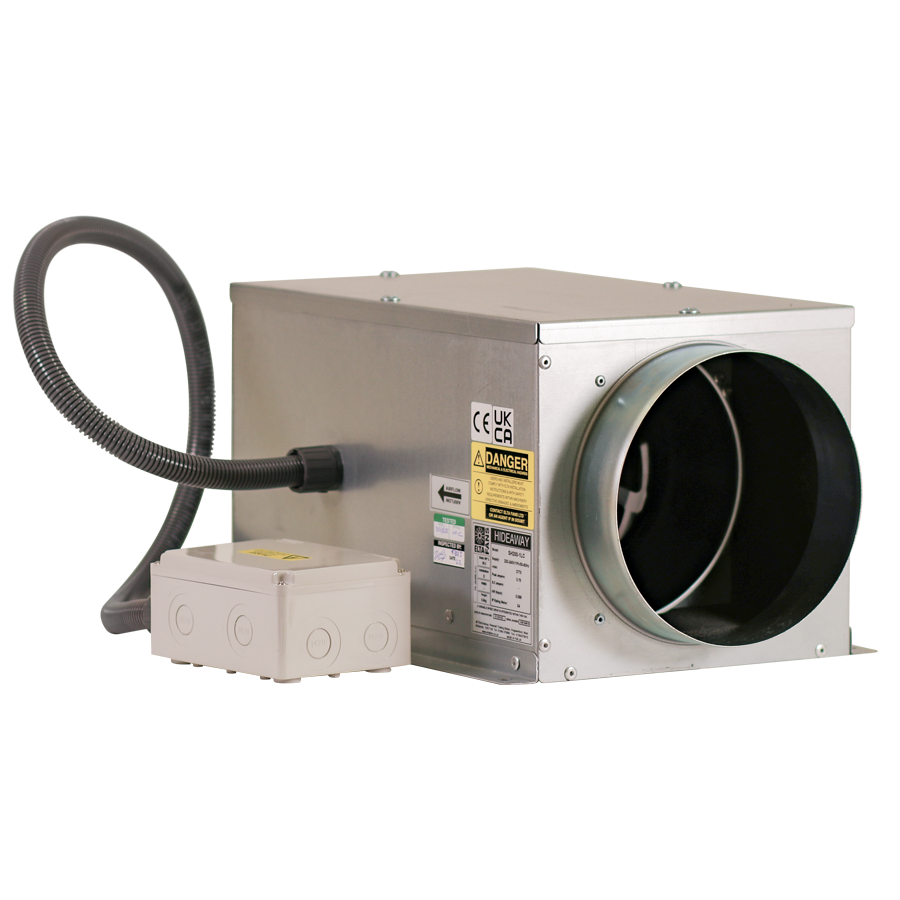

Elta SH150-1LC Hideaway Low Profile Acoustic Box Fan EC - 150mm
Elta SH150-1LC Hideaway Low Profile Acoustic Box Fan EC - 150mm
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | Hideaway SH150-1LC |
| Type | Low profile acoustic box fan |
| Duct connection | 150 mm circular spigots |
| Motor | Single Phase EC, 220-240V 50/60Hz |
| Impeller | Double mixed flow jet impeller, direct drive |
| Max airflow | 0.145 m³/s (approx. 522 m³/h) at 0 Pa |
| Airflow at 100 Pa | 0.125 m³/s (approx. 450 m³/h) |
| Max static pressure | Approx. 350 Pa |
| Speed | 4,980 rpm at 10V |
| Input power | 0.051 kW (full speed) |
| Peak current | 0.42 A |
| Sound pressure | 50 dBA inlet @ 3m (full speed) |
| Speed control | 0-10V, PWM or potentiometer, plus built-in commissioning control |
| Motor protection | IPX4, sealed for life bearings |
| Max air temperature | +60°C |
| Casing | 1.2mm galvanised steel, Class O acoustic lining, removable lid |
| Weight | 6 kg |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification
The Elta Hideaway SH150-1LC is a low profile acoustic box fan for 150 mm ducted extract or supply where the ceiling void is too shallow for a standard box fan. A double mixed flow jet impeller on a single phase EC motor gives up to 0.145 m³/s (approx. 522 m³/h), and the Class O acoustic lining keeps breakout noise down.
- 150 mm low profile box fan for shallow ceiling voids
- Single Phase EC motor with fully variable speed

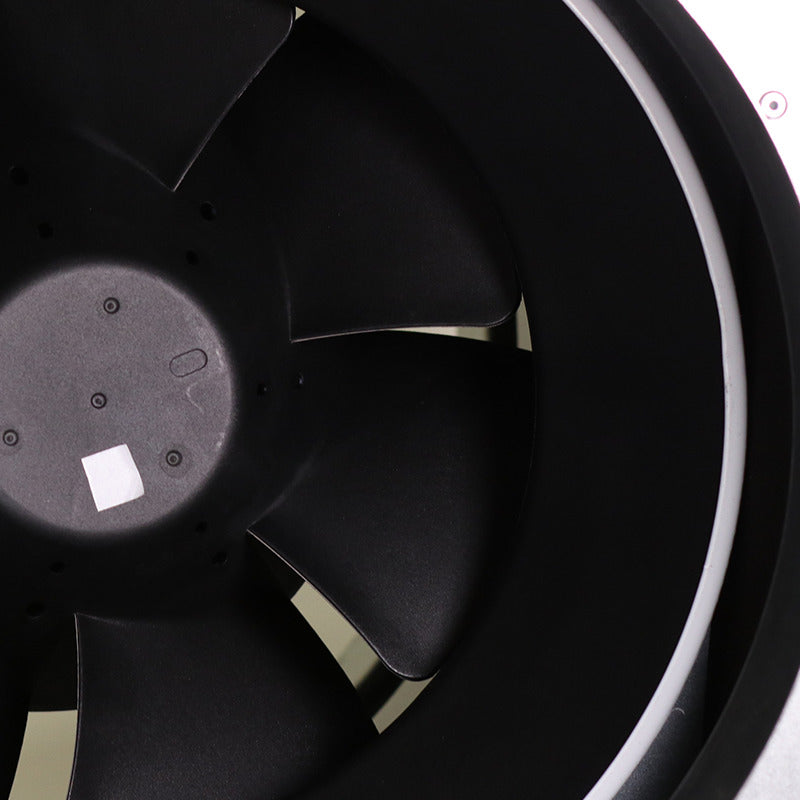

- Double mixed flow jet impeller
- Airflow up to 0.145 m³/s (approx. 522 m³/h)
- Class O fire resistant acoustic lining to cut breakout noise
- Removable lid for maintenance, suitable for external mounting
Suitable for
- Well suited to kitchen and multi-room bathroom extract in flats and hotels
- Hotels, offices, libraries and residential blocks where noise matters
- Any ducted system with a tight ceiling void
Installation

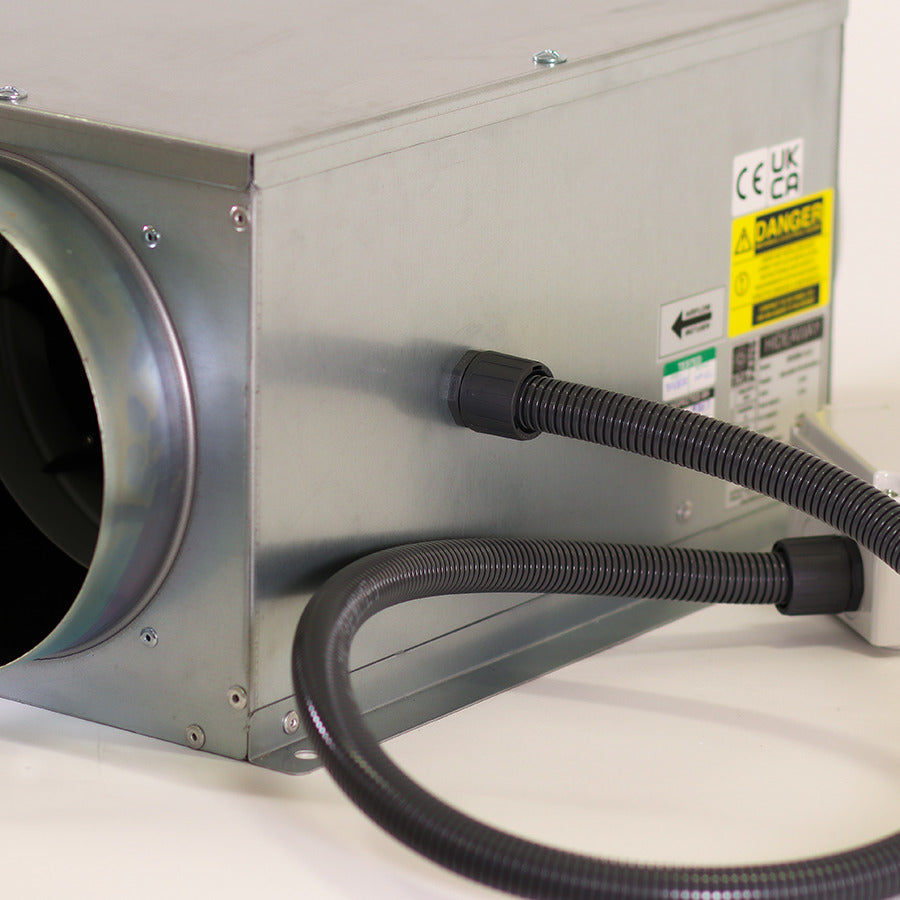

Mount in-line on suitable supports with the airflow arrow in the right direction and connect to 150 mm circular duct using Elta 018-150-CLAMP fast clamps. The fan comes with a 1m flying lead and must be wired by a qualified electrician. Set a single running speed with the built-in commissioning control, or run it from the Elta 149-POT-10-MI potentiometer, a 0-10V signal or PWM. Low specific fan powers help with Building Regulations Part F and Part L compliance.
Specifications
| Brand | Elta |
| Model | Hideaway SH150-1LC |
| Type | Low profile acoustic box fan |
| Duct connection | 150 mm circular spigots |
| Motor | Single Phase EC, 220-240V 50/60Hz |
| Impeller | Double mixed flow jet impeller, direct drive |
| Max airflow | 0.145 m³/s (approx. 522 m³/h) at 0 Pa |
| Airflow at 100 Pa | 0.125 m³/s (approx. 450 m³/h) |
| Max static pressure | Approx. 350 Pa |
| Speed | 4,980 rpm at 10V |
| Input power | 0.051 kW (full speed) |
| Peak current | 0.42 A |
| Sound pressure | 50 dBA inlet @ 3m (full speed) |
| Speed control | 0-10V, PWM or potentiometer, plus built-in commissioning control |
| Motor protection | IPX4, sealed for life bearings |
| Max air temperature | +60°C |
| Casing | 1.2mm galvanised steel, Class O acoustic lining, removable lid |
| Weight | 6 kg |
| Warranty | 1 Year Manufacturer |
Matching accessories
EC controller 149-POT-10-MI, fast clamps 018-150-CLAMP, backdraught damper 018-150-DAMPER, panel filter 018-0150-FILT-P, electric heater battery 018-CV15-27-1M.
Manuals & Guides
Elta Hideaway SH Datasheet
Elta Hideaway SH Installation Guide
Product Description
The Elta Hideaway SH150-1LC is a low profile acoustic box fan for 150 mm ducted extract or supply where the ceiling void is too shallow for a standard box fan. A double mixed flow jet impeller on a single phase EC motor gives up to 0.145 m³/s (approx. 522 m³/h), and the Class O acoustic lining keeps breakout noise down.
- 150 mm low profile box fan for shallow ceiling voids
- Single Phase EC motor with fully variable speed
- Double mixed flow jet impeller
- Airflow up to 0.145 m³/s (approx. 522 m³/h)
- Class O fire resistant acoustic lining to cut breakout noise
- Removable lid for maintenance, suitable for external mounting
Suitable for
- Well suited to kitchen and multi-room bathroom extract in flats and hotels
- Hotels, offices, libraries and residential blocks where noise matters
- Any ducted system with a tight ceiling void
Installation
Mount in-line on suitable supports with the airflow arrow in the right direction and connect to 150 mm circular duct using Elta 018-150-CLAMP fast clamps. The fan comes with a 1m flying lead and must be wired by a qualified electrician. Set a single running speed with the built-in commissioning control, or run it from the Elta 149-POT-10-MI potentiometer, a 0-10V signal or PWM. Low specific fan powers help with Building Regulations Part F and Part L compliance.
Specifications
| Brand | Elta |
| Model | Hideaway SH150-1LC |
| Type | Low profile acoustic box fan |
| Duct connection | 150 mm circular spigots |
| Motor | Single Phase EC, 220-240V 50/60Hz |
| Impeller | Double mixed flow jet impeller, direct drive |
| Max airflow | 0.145 m³/s (approx. 522 m³/h) at 0 Pa |
| Airflow at 100 Pa | 0.125 m³/s (approx. 450 m³/h) |
| Max static pressure | Approx. 350 Pa |
| Speed | 4,980 rpm at 10V |
| Input power | 0.051 kW (full speed) |
| Peak current | 0.42 A |
| Sound pressure | 50 dBA inlet @ 3m (full speed) |
| Speed control | 0-10V, PWM or potentiometer, plus built-in commissioning control |
| Motor protection | IPX4, sealed for life bearings |
| Max air temperature | +60°C |
| Casing | 1.2mm galvanised steel, Class O acoustic lining, removable lid |
| Weight | 6 kg |
| Warranty | 1 Year Manufacturer |
Matching accessories
EC controller 149-POT-10-MI, fast clamps 018-150-CLAMP, backdraught damper 018-150-DAMPER, panel filter 018-0150-FILT-P, electric heater battery 018-CV15-27-1M.
Manuals & Guides
Elta Hideaway SH Datasheet
Elta Hideaway SH Installation Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Elta Hideaway SH150-1LC for?
It is a low profile acoustic box fan for 150 mm ducted extract or supply, built for shallow ceiling voids.
How much air does it move?
Up to 0.145 m³/s (about 522 m³/h) at 0 Pa, and around 0.125 m³/s at 100 Pa at full speed.
How do I control the speed?
Via 0-10V, PWM or a potentiometer such as the Elta 149-POT-10-MI. It also has built-in commissioning control to set a fixed speed.
What supply does it need?
Single phase 220-240V 50/60Hz. It draws up to 0.051 kW and 0.42 A, and should be wired by a qualified electrician.
Can it be mounted outside?
Yes, Elta rate the Hideaway SH as suitable for external mounting, with an IPX4 motor rated for air up to +60°C.
