Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | Raptor SDA500 (SDA500/4-3EC) |
| Type | Case-mounted axial flow fan |
| Duct connection | 500 mm |
| Motor | Three-phase EC, 4-pole (fully variable speed) |
| Impeller | Ziehl-Abegg FE2owlet aerofoil (die-cast aluminium / composite) |
| Max static pressure | Up to 290 Pa |
| Max airflow | Up to 4.60 m³/s (range) |
| Case IP rating | IP54 |
| Terminal box | IP55 |
| Max air temperature | +70°C |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

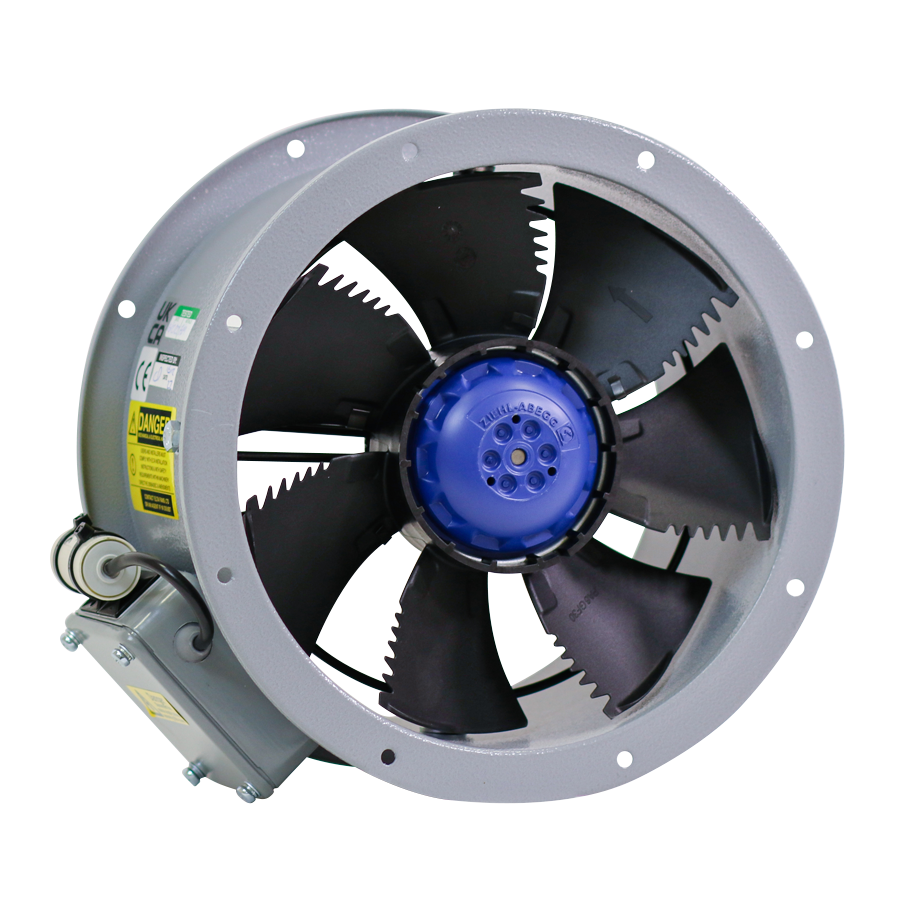

The Elta Raptor SDA500 is a short case-mounted axial flow fan for 500 mm ductwork, built around the Ziehl-Abegg FE2owlet aerofoil impeller with serrated trailing edges for high efficiency and reduced noise. The powder-coated mild-steel case and external-rotor motor make it a durable choice for commercial duct-mounted supply or extract.
- 500 mm case-mounted axial fan for in-duct installation
- Three-phase EC motor (4-pole) with fully variable speed control
- Ziehl-Abegg FE2owlet aerofoil impeller with serrated trailing edges
- Static pressures up to 290 Pa; airflow up to 4.60 m³/s across the range
- Powder-coated mild-steel case (RAL 7045); IP54 case with fitted IP55 terminal box
- Rated for air temperatures up to +70°C
Suitable for
- Commercial and industrial duct-mounted supply or extract ventilation
- General building services, car parks, plant and process ventilation
Installation
Case-mounted in-line within the ductwork, with a factory-fitted IP55 terminal box for wiring. As a mains fan it should be installed on a suitable circuit by a qualified electrician. The EC motor gives fully variable speed control via a 0-10V signal or potentiometer.
Specifications
| Brand | Elta |
| Model | Raptor SDA500 (SDA500/4-3EC) |
| Type | Case-mounted axial flow fan |
| Duct connection | 500 mm |
| Motor | Three-phase EC, 4-pole (fully variable speed) |
| Impeller | Ziehl-Abegg FE2owlet aerofoil (die-cast aluminium / composite) |
| Max static pressure | Up to 290 Pa |
| Max airflow | Up to 4.60 m³/s (range) |
| Case IP rating | IP54 |
| Terminal box | IP55 |
| Max air temperature | +70°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Elta Raptor SDA Datasheet
Elta Raptor SDA Installation Guide
Product Description
The Elta Raptor SDA500 is a short case-mounted axial flow fan for 500 mm ductwork, built around the Ziehl-Abegg FE2owlet aerofoil impeller with serrated trailing edges for high efficiency and reduced noise. The powder-coated mild-steel case and external-rotor motor make it a durable choice for commercial duct-mounted supply or extract.
- 500 mm case-mounted axial fan for in-duct installation
- Three-phase EC motor (4-pole) with fully variable speed control
- Ziehl-Abegg FE2owlet aerofoil impeller with serrated trailing edges
- Static pressures up to 290 Pa; airflow up to 4.60 m³/s across the range
- Powder-coated mild-steel case (RAL 7045); IP54 case with fitted IP55 terminal box
- Rated for air temperatures up to +70°C
Suitable for
- Commercial and industrial duct-mounted supply or extract ventilation
- General building services, car parks, plant and process ventilation
Installation
Case-mounted in-line within the ductwork, with a factory-fitted IP55 terminal box for wiring. As a mains fan it should be installed on a suitable circuit by a qualified electrician. The EC motor gives fully variable speed control via a 0-10V signal or potentiometer.
Specifications
| Brand | Elta |
| Model | Raptor SDA500 (SDA500/4-3EC) |
| Type | Case-mounted axial flow fan |
| Duct connection | 500 mm |
| Motor | Three-phase EC, 4-pole (fully variable speed) |
| Impeller | Ziehl-Abegg FE2owlet aerofoil (die-cast aluminium / composite) |
| Max static pressure | Up to 290 Pa |
| Max airflow | Up to 4.60 m³/s (range) |
| Case IP rating | IP54 |
| Terminal box | IP55 |
| Max air temperature | +70°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Elta Raptor SDA Datasheet
Elta Raptor SDA Installation Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Elta Raptor SDA500 for?
It is a short case-mounted axial flow fan for 500 mm ductwork, used for commercial and industrial duct-mounted supply or extract ventilation.
What duct size does it fit?
It is case-mounted in-line in 500 mm ductwork.
What impeller does it use?
The Ziehl-Abegg FE2owlet aerofoil impeller with serrated trailing edges, for high efficiency and reduced noise.
What supply does it need?
A three phase ec supply; it has a factory-fitted IP55 terminal box and should be wired by a qualified electrician.
What is the ingress protection?
The case is IP54 with an IP55 terminal box, and it is rated for air up to +70°C.
Can I vary the speed?
Yes, the EC motor gives fully variable speed control via a 0-10V signal or potentiometer.
