Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | Biflow SB250-CON4-1 |
| Type | Bifurcated conical axial flow fan |
| Duct connection | 250 mm |
| Motor | Single Phase AC, 4-pole |
| Impeller | Cast-aluminium axial impeller |
| Max airflow | Up to 3.808 m³/s (range) |
| Air handling | Suited to hot, greasy or contaminated air (motor isolated from airstream) — see datasheet |
| Ingress protection | IP55 |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

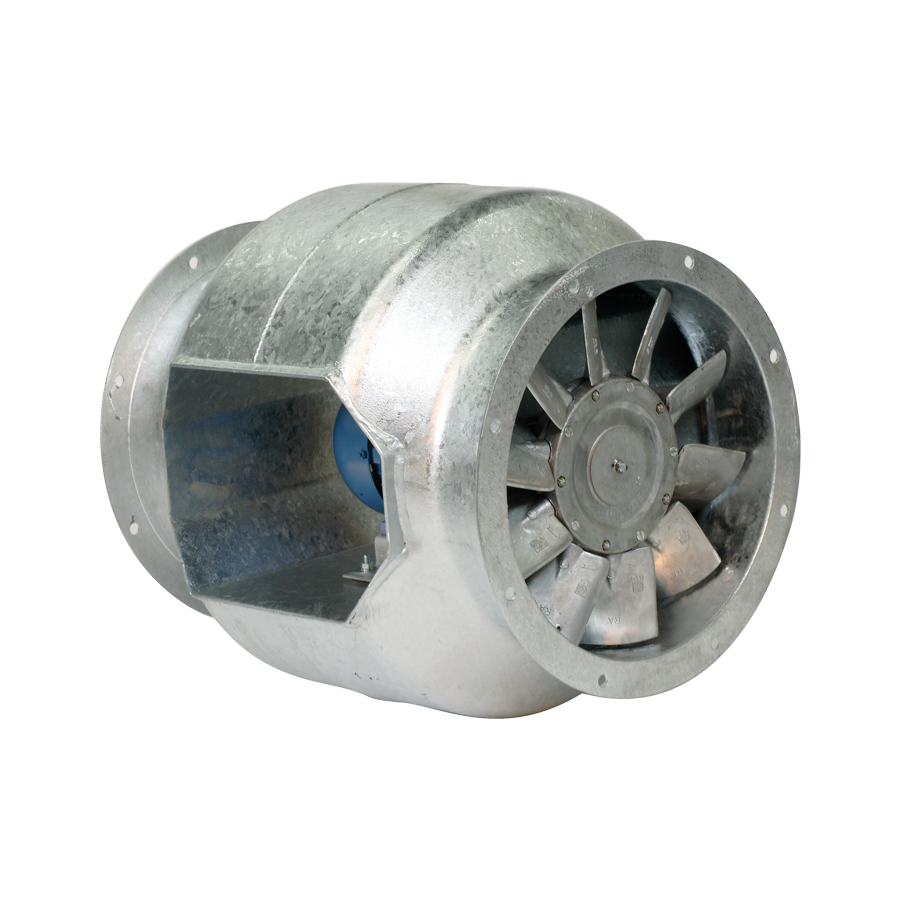

The Elta Biflow SB250-CON4-1 is a bifurcated conical axial flow fan for 250 mm ductwork, with the motor mounted outside the airstream so it can handle hot, greasy or contaminated air that would damage a standard axial fan. The cast-aluminium axial impeller moves high volumes of air at low noise, making it ideal for commercial kitchen and fume extract.
- 250 mm bifurcated conical axial flow fan
- Motor mounted outside the airstream (handles hot, greasy or contaminated air)
- Single Phase AC motor (4-pole)
- Cast-aluminium axial impeller
- Airflow up to 3.808 m³/s across the range
- Powder-coated mild-steel casing
Suitable for
- Commercial kitchen, grease and fume extract
- Hot-air and contaminated-air industrial ventilation
Installation
Installed in-line within the ductwork on suitable anti-vibration mounts and wired by a qualified electrician. The bifurcated design keeps the motor out of the airstream for hot or contaminated air.
Specifications
| Brand | Elta |
| Model | Biflow SB250-CON4-1 |
| Type | Bifurcated conical axial flow fan |
| Duct connection | 250 mm |
| Motor | Single Phase AC, 4-pole |
| Impeller | Cast-aluminium axial impeller |
| Max airflow | Up to 3.808 m³/s (range) |
| Air handling | Suited to hot, greasy or contaminated air (motor isolated from airstream) — see datasheet |
| Ingress protection | IP55 |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Elta Biflow Bifurcated Fans Datasheet
Product Description
The Elta Biflow SB250-CON4-1 is a bifurcated conical axial flow fan for 250 mm ductwork, with the motor mounted outside the airstream so it can handle hot, greasy or contaminated air that would damage a standard axial fan. The cast-aluminium axial impeller moves high volumes of air at low noise, making it ideal for commercial kitchen and fume extract.
- 250 mm bifurcated conical axial flow fan
- Motor mounted outside the airstream (handles hot, greasy or contaminated air)
- Single Phase AC motor (4-pole)
- Cast-aluminium axial impeller
- Airflow up to 3.808 m³/s across the range
- Powder-coated mild-steel casing
Suitable for
- Commercial kitchen, grease and fume extract
- Hot-air and contaminated-air industrial ventilation
Installation
Installed in-line within the ductwork on suitable anti-vibration mounts and wired by a qualified electrician. The bifurcated design keeps the motor out of the airstream for hot or contaminated air.
Specifications
| Brand | Elta |
| Model | Biflow SB250-CON4-1 |
| Type | Bifurcated conical axial flow fan |
| Duct connection | 250 mm |
| Motor | Single Phase AC, 4-pole |
| Impeller | Cast-aluminium axial impeller |
| Max airflow | Up to 3.808 m³/s (range) |
| Air handling | Suited to hot, greasy or contaminated air (motor isolated from airstream) — see datasheet |
| Ingress protection | IP55 |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Elta Biflow Bifurcated Fans Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Elta Biflow SB250-CON4-1 for?
Bifurcated conical axial flow fan for 250 mm ductwork, used for commercial kitchen, grease and fume extract.
What size is it?
It is sized for 250 mm ductwork.
Why bifurcated?
The motor sits outside the airstream, so it handles hot, greasy or contaminated air that would damage a standard fan.
What impeller does it use?
Cast-aluminium axial impeller.
What supply does it need?
It should be wired by a qualified electrician on the correct phase.
