Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | SANO IPIV WALL H |
| Type | Wall mounted positive input ventilation with heater |
| Airflow settings | 11, 15, 18 (default), 22, 26, 29 l/s |
| Power (fan only) | 3.6 to 15.6 W (higher with heater on) |
| Heater | Integral multicore, supply air 10°C to 20°C |
| Filter | G2 |
| Spigots | 2 x 97 mm |
| Modes | Normal, ECO-LoFlo, Comfort Control, Override Boost |
Summary
See more specification See less specification

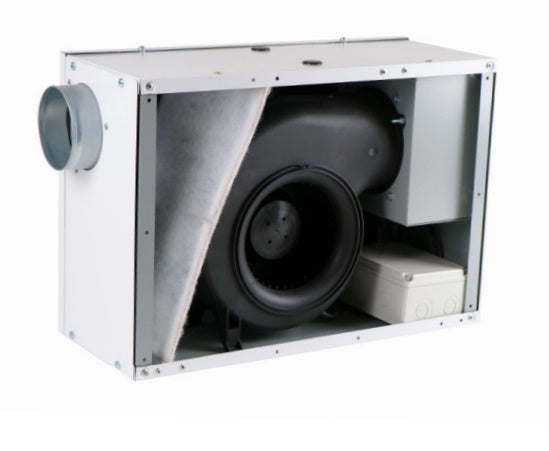

The Elta SANO IPIV WALL H is a wall mounted positive input ventilation unit for homes without a usable loft, such as flats and bungalows with room-in-roof. It supplies filtered fresh air to a central point, usually the hallway, to cure condensation and mould, with an integral heater that tempers incoming air.
- Wall mounted PIV for flats and homes without loft access
- Integral multicore heater, supply temperature selectable 10°C to 20°C
- ECO-LoFlo control adjusts airflow to incoming air temperature and moisture
- 6 installer settings from 11 to 29 l/s
- Very large G2 filter for low maintenance
- Configurable spigot or grille outlet, left or right handed
Suitable for
- Condensation and mould control in flats and apartments
- Homes without a loft for a loft mounted PIV
- Radon reduction in some properties
Installation
Mount on an external wall with a supply duct to a central ceiling point, or use the end panel grille outlet. Choose the unit setting to suit the size and layout of the home. Optional PIV B and PIV B+H switches add boost and heater control. Wiring by a qualified electrician.
Specifications
| Brand | Elta |
| Model | SANO IPIV WALL H |
| Type | Wall mounted positive input ventilation with heater |
| Airflow settings | 11, 15, 18 (default), 22, 26, 29 l/s |
| Power (fan only) | 3.6 to 15.6 W (higher with heater on) |
| Heater | Integral multicore, supply air 10°C to 20°C |
| Filter | G2 |
| Spigots | 2 x 97 mm |
| Modes | Normal, ECO-LoFlo, Comfort Control, Override Boost |
Matching accessories
Optional PIV B (boost) and PIV B+H (boost and heater) user switches.
Manuals & Guides
Elta SANO IPIV Wall H Datasheet
Product Description
The Elta SANO IPIV WALL H is a wall mounted positive input ventilation unit for homes without a usable loft, such as flats and bungalows with room-in-roof. It supplies filtered fresh air to a central point, usually the hallway, to cure condensation and mould, with an integral heater that tempers incoming air.
- Wall mounted PIV for flats and homes without loft access
- Integral multicore heater, supply temperature selectable 10°C to 20°C
- ECO-LoFlo control adjusts airflow to incoming air temperature and moisture
- 6 installer settings from 11 to 29 l/s
- Very large G2 filter for low maintenance
- Configurable spigot or grille outlet, left or right handed
Suitable for
- Condensation and mould control in flats and apartments
- Homes without a loft for a loft mounted PIV
- Radon reduction in some properties
Installation
Mount on an external wall with a supply duct to a central ceiling point, or use the end panel grille outlet. Choose the unit setting to suit the size and layout of the home. Optional PIV B and PIV B+H switches add boost and heater control. Wiring by a qualified electrician.
Specifications
| Brand | Elta |
| Model | SANO IPIV WALL H |
| Type | Wall mounted positive input ventilation with heater |
| Airflow settings | 11, 15, 18 (default), 22, 26, 29 l/s |
| Power (fan only) | 3.6 to 15.6 W (higher with heater on) |
| Heater | Integral multicore, supply air 10°C to 20°C |
| Filter | G2 |
| Spigots | 2 x 97 mm |
| Modes | Normal, ECO-LoFlo, Comfort Control, Override Boost |
Matching accessories
Optional PIV B (boost) and PIV B+H (boost and heater) user switches.
Manuals & Guides
Elta SANO IPIV Wall H Datasheet
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the SANO IPIV WALL H for?
Curing condensation and mould in homes without a loft, by supplying filtered, tempered fresh air.
Does it have a heater?
Yes, an integral multicore heater tempers incoming air to a selectable 10°C to 20°C.
How much air does it supply?
11 to 29 l/s across six installer settings.
Where does it fit?
On an external wall, usually supplying air to the hallway ceiling.
