Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | Multiflow SEL355 (SEL355/4-1AC) |
| Type | Duct-mounted mixed-flow inline fan |
| Duct connection | 355 mm |
| Motor | Single-phase AC, 4-pole |
| Impeller | Diagonal mixed-flow with 3D stator guide vanes |
| Max static pressure | Up to 1290 Pa (AC range) |
| Terminal box | IP44 |
| Weather rating | IPX4 |
| Max air temperature | +80°C |
| Warranty | 1 Year Manufacturer |
Summary
See more specification See less specification

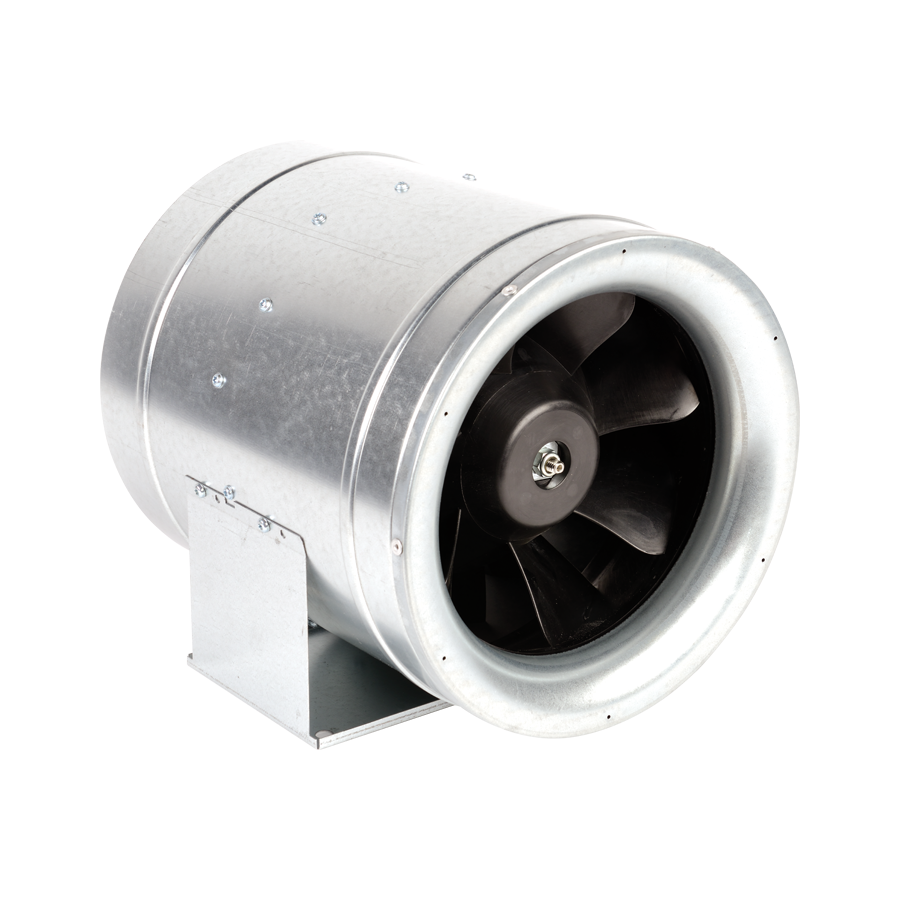

The Elta Multiflow SEL355 is a duct-mounted mixed-flow inline fan for 355 mm ductwork that combines the high air volume of an axial fan with the higher static pressure of a centrifugal design. A high-efficiency diagonal mixed-flow impeller works with 3D stator guide vanes that recover dynamic pressure loss, giving strong performance from a compact casing that fits smaller ducting than an equivalent box fan.
- 355 mm duct connection; space-saving mixed-flow design
- Single-phase AC motor (4-pole) with integral IP44 terminal box
- High-efficiency diagonal mixed-flow impeller with 3D stator guide vanes
- Static pressures up to 1290 Pa across the AC range
- Galvanised steel construction; rated for air up to +80°C
- IPX4 weather-resistant rating
Suitable for
- Commercial and industrial supply or extract needing high pressure in a compact duct run
- Long duct runs, kitchen extract, car parks and general building-services ventilation
Installation
Mounts in-line in the ductwork in any orientation, with an integral IP44 terminal box for wiring. As a mains fan it should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Elta |
| Model | Multiflow SEL355 (SEL355/4-1AC) |
| Type | Duct-mounted mixed-flow inline fan |
| Duct connection | 355 mm |
| Motor | Single-phase AC, 4-pole |
| Impeller | Diagonal mixed-flow with 3D stator guide vanes |
| Max static pressure | Up to 1290 Pa (AC range) |
| Terminal box | IP44 |
| Weather rating | IPX4 |
| Max air temperature | +80°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Elta Multiflow SEL Datasheet
Elta Multiflow SEL Installation Guide
Product Description
The Elta Multiflow SEL355 is a duct-mounted mixed-flow inline fan for 355 mm ductwork that combines the high air volume of an axial fan with the higher static pressure of a centrifugal design. A high-efficiency diagonal mixed-flow impeller works with 3D stator guide vanes that recover dynamic pressure loss, giving strong performance from a compact casing that fits smaller ducting than an equivalent box fan.
- 355 mm duct connection; space-saving mixed-flow design
- Single-phase AC motor (4-pole) with integral IP44 terminal box
- High-efficiency diagonal mixed-flow impeller with 3D stator guide vanes
- Static pressures up to 1290 Pa across the AC range
- Galvanised steel construction; rated for air up to +80°C
- IPX4 weather-resistant rating
Suitable for
- Commercial and industrial supply or extract needing high pressure in a compact duct run
- Long duct runs, kitchen extract, car parks and general building-services ventilation
Installation
Mounts in-line in the ductwork in any orientation, with an integral IP44 terminal box for wiring. As a mains fan it should be installed on a suitable circuit by a qualified electrician.
Specifications
| Brand | Elta |
| Model | Multiflow SEL355 (SEL355/4-1AC) |
| Type | Duct-mounted mixed-flow inline fan |
| Duct connection | 355 mm |
| Motor | Single-phase AC, 4-pole |
| Impeller | Diagonal mixed-flow with 3D stator guide vanes |
| Max static pressure | Up to 1290 Pa (AC range) |
| Terminal box | IP44 |
| Weather rating | IPX4 |
| Max air temperature | +80°C |
| Warranty | 1 Year Manufacturer |
Manuals & Guides
Elta Multiflow SEL Datasheet
Elta Multiflow SEL Installation Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What is the Elta Multiflow SEL355 for?
It is a duct-mounted mixed-flow inline fan for 355 mm ductwork, used for high-pressure commercial and industrial supply or extract in a compact run.
What duct size does it fit?
It connects to 355 mm ductwork and mounts in-line in any orientation.
What makes a mixed-flow fan different?
It combines the high air volume of an axial fan with the higher static pressure of a centrifugal fan, so it moves more air against resistance than an axial fan of the same size.
What supply does it need?
A single phase ac supply; it has an integral IP44 terminal box and should be wired by a qualified electrician.
What temperature can it handle?
It is rated for air temperatures up to +80°C and has an IPX4 weather-resistant rating.
Can I control the speed?
Yes, pair it with a compatible Elta transformer or electronic speed controller.
