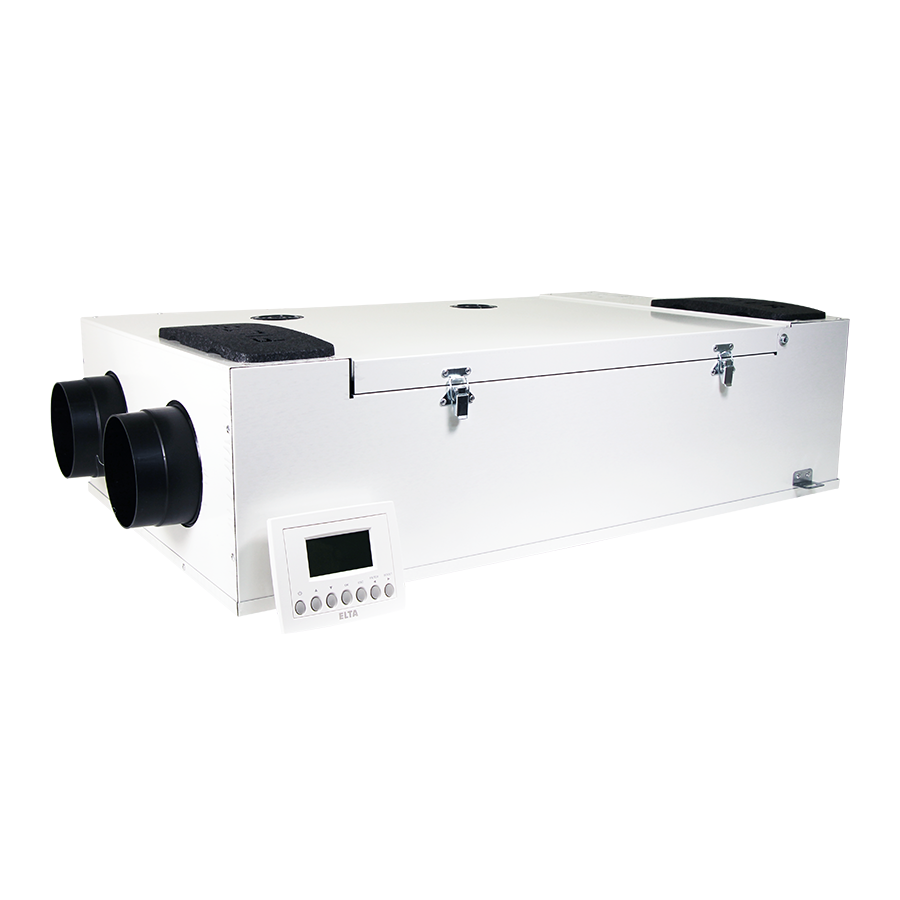

Elta HAVA340H Horizontal MVHR Heat Recovery Unit - 357 m³/h
Elta HAVA340H Horizontal MVHR Heat Recovery Unit - 357 m³/h
Suggested products
Free 14 day returns
Changed your mind or ordered the wrong unit? You have 14 days from delivery to send it back. As long as items are unused and in their original packaging, we'll arrange your refund. Just contact our team and we'll take care of the rest. Made-to-order and bespoke items are non-returnable.
Why choose eFans?
- Bulk pricing available
- Free help and advice
- Fast quotes, usually within the hour
- Huge range with next-day delivery
- Credit accounts available
Delivery and Warranty
Standard UK Mainland Delivery
If you are not in a rush, then we offer standard delivery and your order should be with you between 2-3 working days.
£7.95
Next Working Day Delivery
Place your order before 12pm Monday to Thursday and receive your order the next working day. Orders placed on Friday before 11am will be processed and delivered on Monday. (Excludes Sunday’s and Public Holidays)
£15.95
Nominated Day Delivery
We know sometimes you will need an order on a particular date in the future. Simply select this option at checkout and add what date you would like to receive the order. We will then contact you to confirm the date. If you need to change this order date then please contact us ASAP.
£15.95
Northern Ireland Delivery
We offer a flat fee rate for Northern Ireland orders, and all are 5-7 working day lead times.
£29.95
Scottish Highlands & Islands Delivery
We only offer a flat fee rate for Scottish Highland & Islands orders, and all are 5-7 working day lead times.
£45.95
Channel Islands Delivery
We only offer a flat fee rate for Channel Islands orders, and all are 5-7 working day lead times.
£45.95
Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | HAVA340H |
| Type | Whole house MVHR, counterflow heat exchanger |
| Orientation | Horizontal |
| Max airflow | 100 l/s (357 m³/h) |
| Heat recovery efficiency | Up to 90% |
| SFP | 0.78 W/(l/s) at 21 l/s |
| Spigots | 4 x 150 mm |
| Max power | 170 W |
| Filters | G4 (F7 on request) |
| Summer bypass | Integral automatic |
| Frost protection | Automatic |

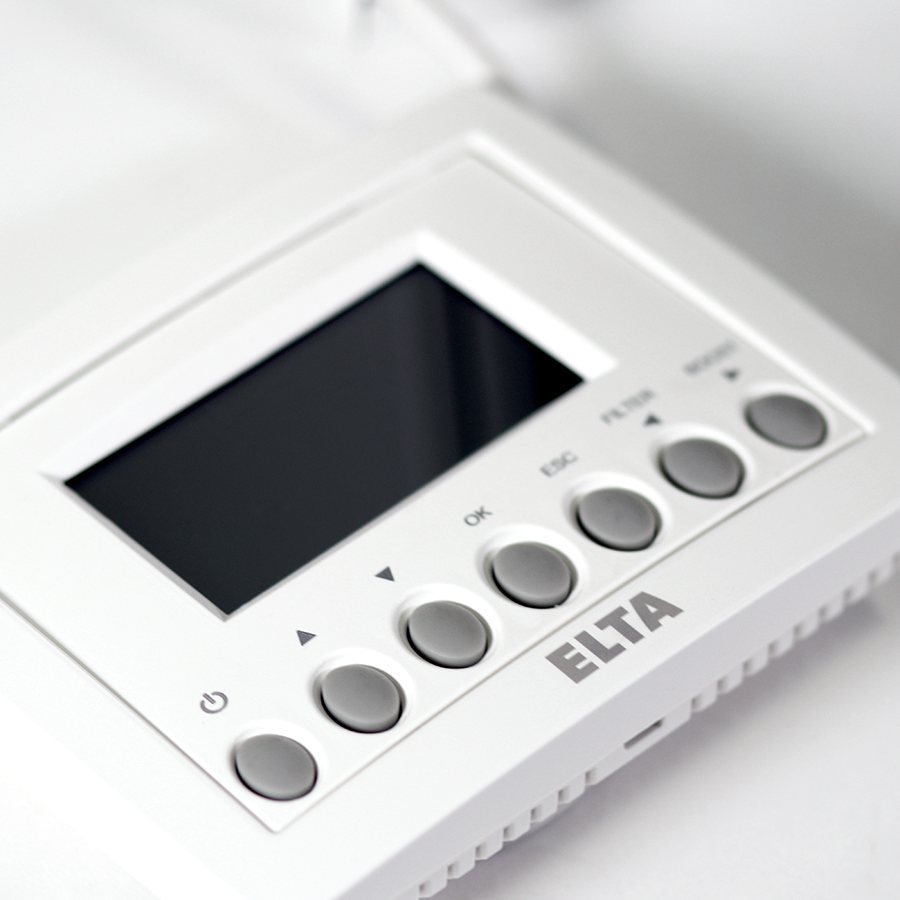

| Controller | CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer |
| Sound | 22 dB(A) @ 3m |
| Dimensions (H x W x D) | See datasheet |
| Weight | 23.5 kg |
| IP rating | IPX4 |
| Listing | PCDB and SAP Appendix Q |
Summary
See more specification See less specification
The Elta HAVA340H is a whole house MVHR unit that supplies fresh, filtered air to living rooms and bedrooms while extracting from wet rooms, recovering up to 90% of the heat through a counterflow heat exchanger. It is sized for larger flats and houses where the unit must go in a ceiling void or loft, and is PCDB and SAP Appendix Q listed.
- Up to 100 l/s (357 m³/h), sized for kitchen + 6 wet rooms
- Heat recovery efficiency up to 90%
- EC motors with backward curved impellers for continuous running
- Automatic summer bypass and frost protection
- CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer
- PCDB and SAP Appendix Q listed
Suitable for
- New build and retrofit houses needing balanced whole house ventilation
- Airtight homes built to Part F and Part L
- Condensation and mould prevention with heat recovery
Installation
Horizontal mounting with 4 x 150 mm spigots. Connect the condensate drain via a trap, and commission the supply and extract rates to Part F using the controller. Elta HAVA units accept an external humidity sensor such as the Elta SEN-HY-I. Installation and commissioning by a competent installer.
Specifications
| Brand | Elta |
| Model | HAVA340H |
| Type | Whole house MVHR, counterflow heat exchanger |
| Orientation | Horizontal |
| Max airflow | 100 l/s (357 m³/h) |
| Heat recovery efficiency | Up to 90% |
| SFP | 0.78 W/(l/s) at 21 l/s |
| Spigots | 4 x 150 mm |
| Max power | 170 W |
| Filters | G4 (F7 on request) |
| Summer bypass | Integral automatic |
| Frost protection | Automatic |
| Controller | CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer |
| Sound | 22 dB(A) @ 3m |
| Dimensions (H x W x D) | See datasheet |
| Weight | 23.5 kg |
| IP rating | IPX4 |
| Listing | PCDB and SAP Appendix Q |
Matching accessories
Wall mounted humidity sensor SEN-HY-I. Semi-rigid or rigid ducting and valves to suit the spigot size.
Manuals & Guides
Elta HAVA340H Datasheet
Elta HAVA340H Installation Guide
Product Description
The Elta HAVA340H is a whole house MVHR unit that supplies fresh, filtered air to living rooms and bedrooms while extracting from wet rooms, recovering up to 90% of the heat through a counterflow heat exchanger. It is sized for larger flats and houses where the unit must go in a ceiling void or loft, and is PCDB and SAP Appendix Q listed.
- Up to 100 l/s (357 m³/h), sized for kitchen + 6 wet rooms
- Heat recovery efficiency up to 90%
- EC motors with backward curved impellers for continuous running
- Automatic summer bypass and frost protection
- CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer
- PCDB and SAP Appendix Q listed
Suitable for
- New build and retrofit houses needing balanced whole house ventilation
- Airtight homes built to Part F and Part L
- Condensation and mould prevention with heat recovery
Installation
Horizontal mounting with 4 x 150 mm spigots. Connect the condensate drain via a trap, and commission the supply and extract rates to Part F using the controller. Elta HAVA units accept an external humidity sensor such as the Elta SEN-HY-I. Installation and commissioning by a competent installer.
Specifications
| Brand | Elta |
| Model | HAVA340H |
| Type | Whole house MVHR, counterflow heat exchanger |
| Orientation | Horizontal |
| Max airflow | 100 l/s (357 m³/h) |
| Heat recovery efficiency | Up to 90% |
| SFP | 0.78 W/(l/s) at 21 l/s |
| Spigots | 4 x 150 mm |
| Max power | 170 W |
| Filters | G4 (F7 on request) |
| Summer bypass | Integral automatic |
| Frost protection | Automatic |
| Controller | CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer |
| Sound | 22 dB(A) @ 3m |
| Dimensions (H x W x D) | See datasheet |
| Weight | 23.5 kg |
| IP rating | IPX4 |
| Listing | PCDB and SAP Appendix Q |
Matching accessories
Wall mounted humidity sensor SEN-HY-I. Semi-rigid or rigid ducting and valves to suit the spigot size.
Manuals & Guides
Elta HAVA340H Datasheet
Elta HAVA340H Installation Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What size home is the HAVA340H for?
Elta's data covers up to kitchen + 6 wet rooms, making it suitable for larger flats and houses where the unit must go in a ceiling void or loft.
How efficient is it?
Heat recovery efficiency is up to 90%, with SFP of 0.78 W/(l/s) at 21 l/s.
Is it SAP listed?
Yes, it is PCDB and SAP Appendix Q listed.
Does it have a summer bypass?
Yes, an integral automatic summer bypass.
What filters does it use?
G4 (F7 on request) as standard.
