Product Details
Downloads
Specifications
Product specifications
| Brand | Elta |
| Model | HAVA280V |
| Type | Whole house MVHR, counterflow heat exchanger |
| Orientation | Vertical |
| Max airflow | 89 l/s (319 m³/h) |
| Heat recovery efficiency | Up to 91% |
| SFP | 0.76 W/(l/s) at 21 l/s |
| Spigots | 4 x 125 mm |
| Max power | 178 W |
| Filters | M5 (F7 on request) |
| Summer bypass | Integral automatic |
| Frost protection | Automatic |
| Controller | CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer |
| Sound | 20 dB(A) @ 3m |
| Dimensions (H x W x D) | See datasheet |
| Weight | 21.4 kg |
| IP rating | IPX2 |
| Listing | PCDB and SAP Appendix Q |
Summary
See more specification See less specification

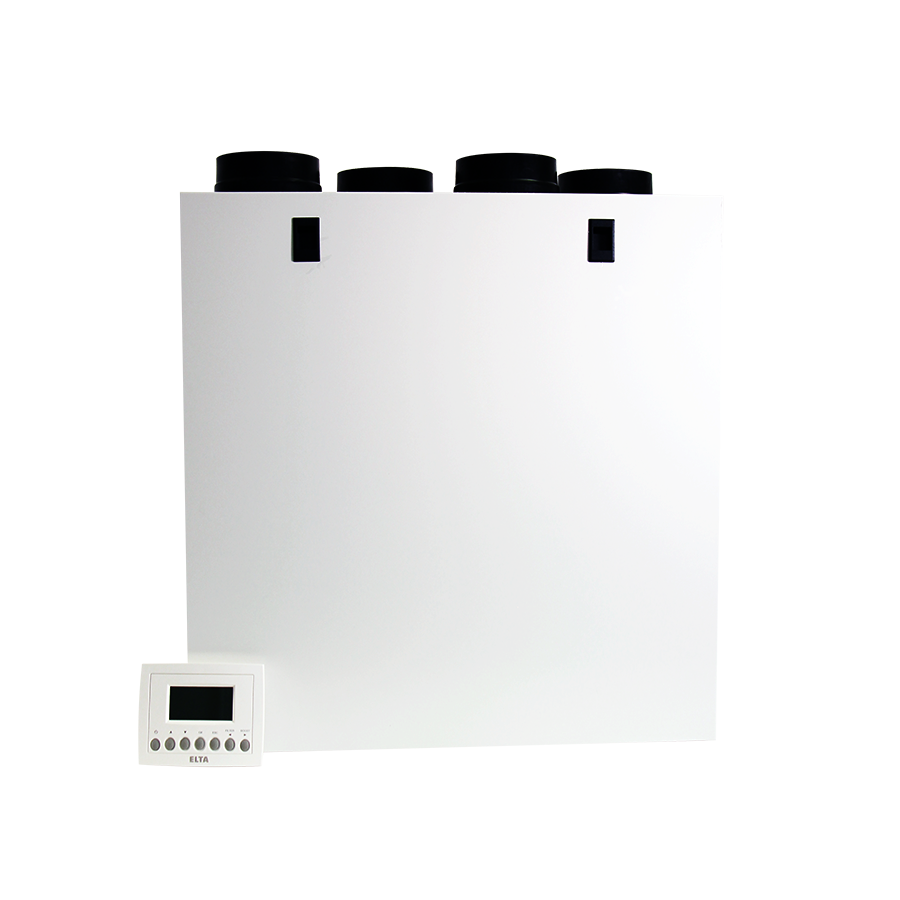

The Elta HAVA280V is a whole house MVHR unit that supplies fresh, filtered air to living rooms and bedrooms while extracting from wet rooms, recovering up to 91% of the heat through a counterflow heat exchanger. It is sized for 2 to 3 bed houses, wall mounted in a cupboard or plant space, and is PCDB and SAP Appendix Q listed.
- Up to 89 l/s (319 m³/h), sized for kitchen + 4 wet rooms
- Heat recovery efficiency up to 91%
- EC motors with backward curved impellers for continuous running
- Automatic summer bypass and frost protection
- CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer
- PCDB and SAP Appendix Q listed
Suitable for
- New build and retrofit houses needing balanced whole house ventilation
- Airtight homes built to Part F and Part L
- Condensation and mould prevention with heat recovery
Installation
Vertical mounting with 4 x 125 mm spigots. Connect the condensate drain via a trap, and commission the supply and extract rates to Part F using the controller. Elta HAVA units accept an external humidity sensor such as the Elta SEN-HY-I. Installation and commissioning by a competent installer.
Specifications
| Brand | Elta |
| Model | HAVA280V |
| Type | Whole house MVHR, counterflow heat exchanger |
| Orientation | Vertical |
| Max airflow | 89 l/s (319 m³/h) |
| Heat recovery efficiency | Up to 91% |
| SFP | 0.76 W/(l/s) at 21 l/s |
| Spigots | 4 x 125 mm |
| Max power | 178 W |
| Filters | M5 (F7 on request) |
| Summer bypass | Integral automatic |
| Frost protection | Automatic |
| Controller | CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer |
| Sound | 20 dB(A) @ 3m |
| Dimensions (H x W x D) | See datasheet |
| Weight | 21.4 kg |
| IP rating | IPX2 |
| Listing | PCDB and SAP Appendix Q |
Matching accessories
Wall mounted humidity sensor SEN-HY-I. Semi-rigid or rigid ducting and valves to suit the spigot size.
Manuals & Guides
Elta HAVA280V Datasheet
Elta HAVA280V Installation Guide
Product Description
The Elta HAVA280V is a whole house MVHR unit that supplies fresh, filtered air to living rooms and bedrooms while extracting from wet rooms, recovering up to 91% of the heat through a counterflow heat exchanger. It is sized for 2 to 3 bed houses, wall mounted in a cupboard or plant space, and is PCDB and SAP Appendix Q listed.
- Up to 89 l/s (319 m³/h), sized for kitchen + 4 wet rooms
- Heat recovery efficiency up to 91%
- EC motors with backward curved impellers for continuous running
- Automatic summer bypass and frost protection
- CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer
- PCDB and SAP Appendix Q listed
Suitable for
- New build and retrofit houses needing balanced whole house ventilation
- Airtight homes built to Part F and Part L
- Condensation and mould prevention with heat recovery
Installation
Vertical mounting with 4 x 125 mm spigots. Connect the condensate drain via a trap, and commission the supply and extract rates to Part F using the controller. Elta HAVA units accept an external humidity sensor such as the Elta SEN-HY-I. Installation and commissioning by a competent installer.
Specifications
| Brand | Elta |
| Model | HAVA280V |
| Type | Whole house MVHR, counterflow heat exchanger |
| Orientation | Vertical |
| Max airflow | 89 l/s (319 m³/h) |
| Heat recovery efficiency | Up to 91% |
| SFP | 0.76 W/(l/s) at 21 l/s |
| Spigots | 4 x 125 mm |
| Max power | 178 W |
| Filters | M5 (F7 on request) |
| Summer bypass | Integral automatic |
| Frost protection | Automatic |
| Controller | CTRL-DSP LCD touch controller with 3 speeds, boost, night mode, holiday mode and weekly timer |
| Sound | 20 dB(A) @ 3m |
| Dimensions (H x W x D) | See datasheet |
| Weight | 21.4 kg |
| IP rating | IPX2 |
| Listing | PCDB and SAP Appendix Q |
Matching accessories
Wall mounted humidity sensor SEN-HY-I. Semi-rigid or rigid ducting and valves to suit the spigot size.
Manuals & Guides
Elta HAVA280V Datasheet
Elta HAVA280V Installation Guide
Delivery & Returns
Our Price Match Promise
Payment Methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
What size home is the HAVA280V for?
Elta's data covers up to kitchen + 4 wet rooms, making it suitable for 2 to 3 bed houses, wall mounted in a cupboard or plant space.
How efficient is it?
Heat recovery efficiency is up to 91%, with SFP of 0.76 W/(l/s) at 21 l/s.
Is it SAP listed?
Yes, it is PCDB and SAP Appendix Q listed.
Does it have a summer bypass?
Yes, an integral automatic summer bypass.
What filters does it use?
M5 (F7 on request) as standard.
